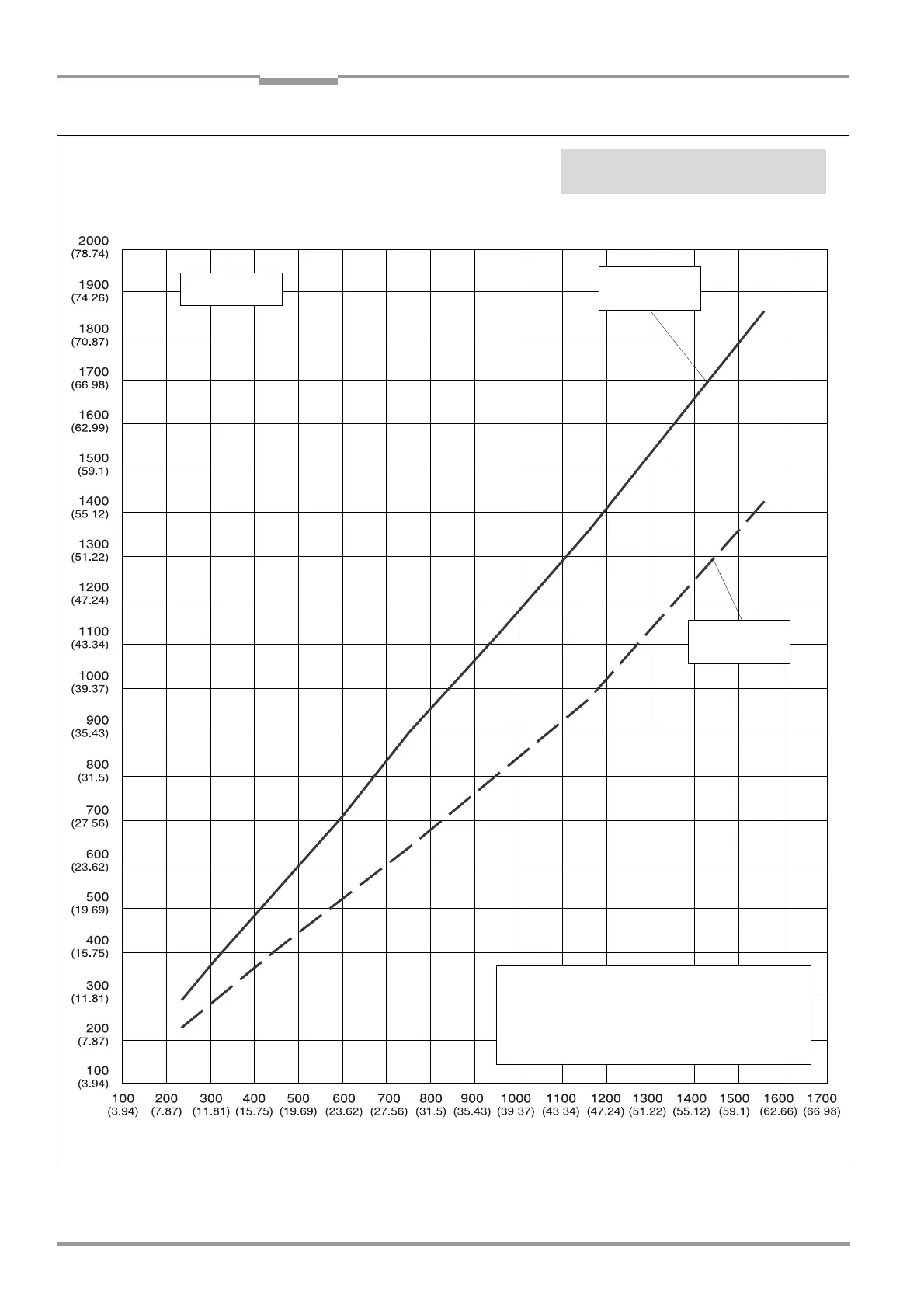

Fig. 10-20: CLV 480-1010/-1011 (line scanner with oscillating mirror): Min. and Max. radial reading distance as a function of the focus
position at a resolution of 1.00 mm (39.4 mil) and an aperture angle of 50°
Line scanner with oscillating mirror (side reading window):
CLV 480-1010/-1011
Radial reading distance
Focus position
max. reading
distance
min. reading
distance
Reading conditions:
Scanning frequency 1,000 Hz
Tilt ±45° up to focus position 1,420 mm (55.9 in)
Tilt ±30° up to focus position 1,560 mm (61.4 in)
See also Table 10-1, Page 10-1
Typical values!
Resolution: 1.00 mm (39.4 mil)
Aperture angle: 50°
All dimensions in mm (in)
