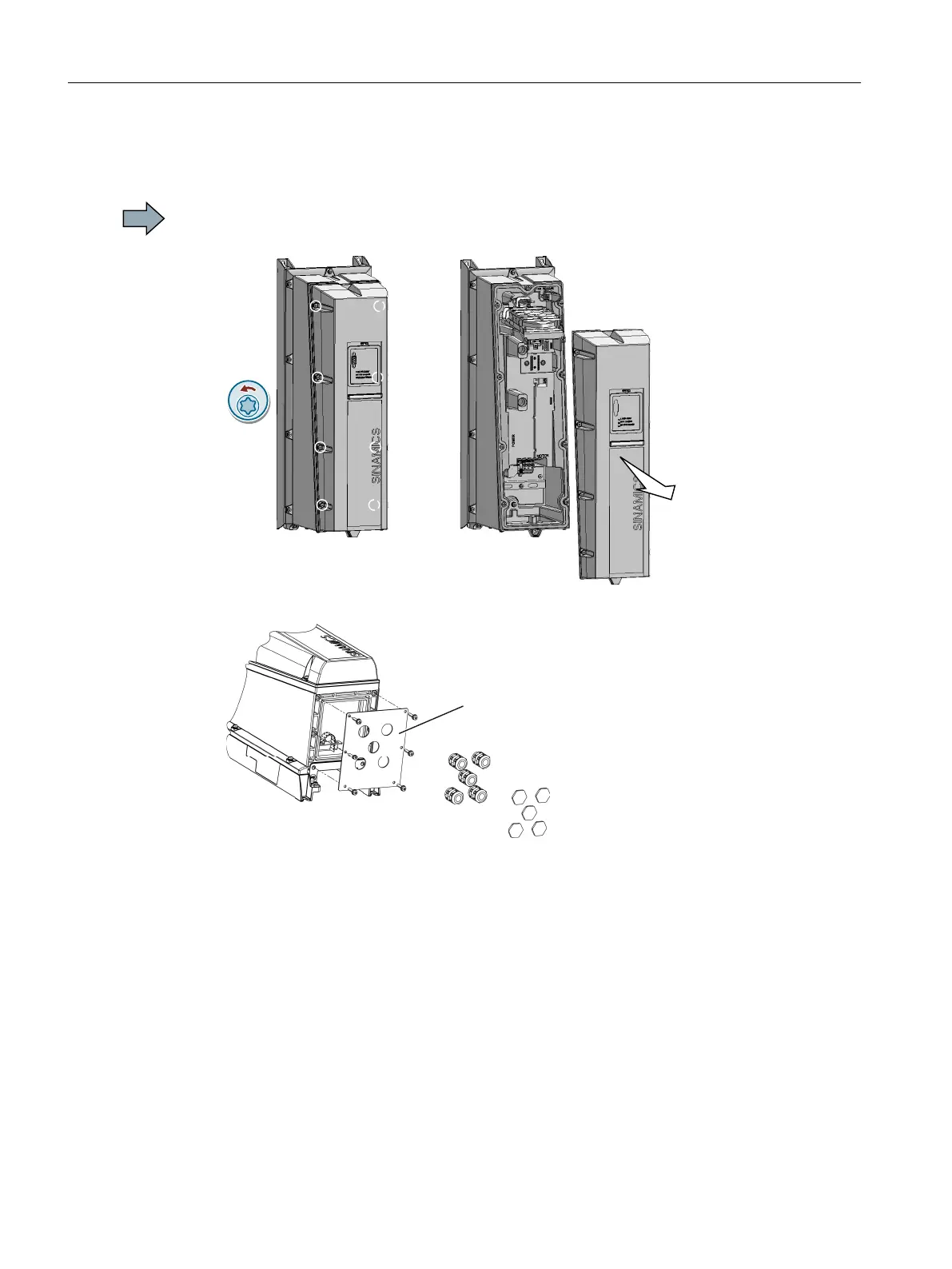

Connecting the mains supply and motor, frame sizes FSA ... FSC
Procedure
To connect the mains supply and motor to FSA … FSC Power Modules, proceed as follows:
1. Remove the front cover of the Power Module.
2. Remove the cable gland plate from the bottom of the inverter.
%ROWLQJSODWH
1P
&DEOHJODQGV
1P
5XEEHUVOHHYHV
Diameters of the drill holes in the cable gland plates:
20.5 mm Control cables
20.5 mm Mains and motor cables, FSA
25.5 mm Mains and motor cables, FSB
32.5 mm Mains and motor cables, FSC
Figure 4-13 Bolting plates for PM230, FSA to FSC
Installing
4.4 Connecting the line supply and motor
Converter with the CU230P-2 Control Units
90 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
