8. Connect the mains supply and the motor.
0DLQVVXSSO\0RWRU
8/
9/
:/
3(
8
9
:

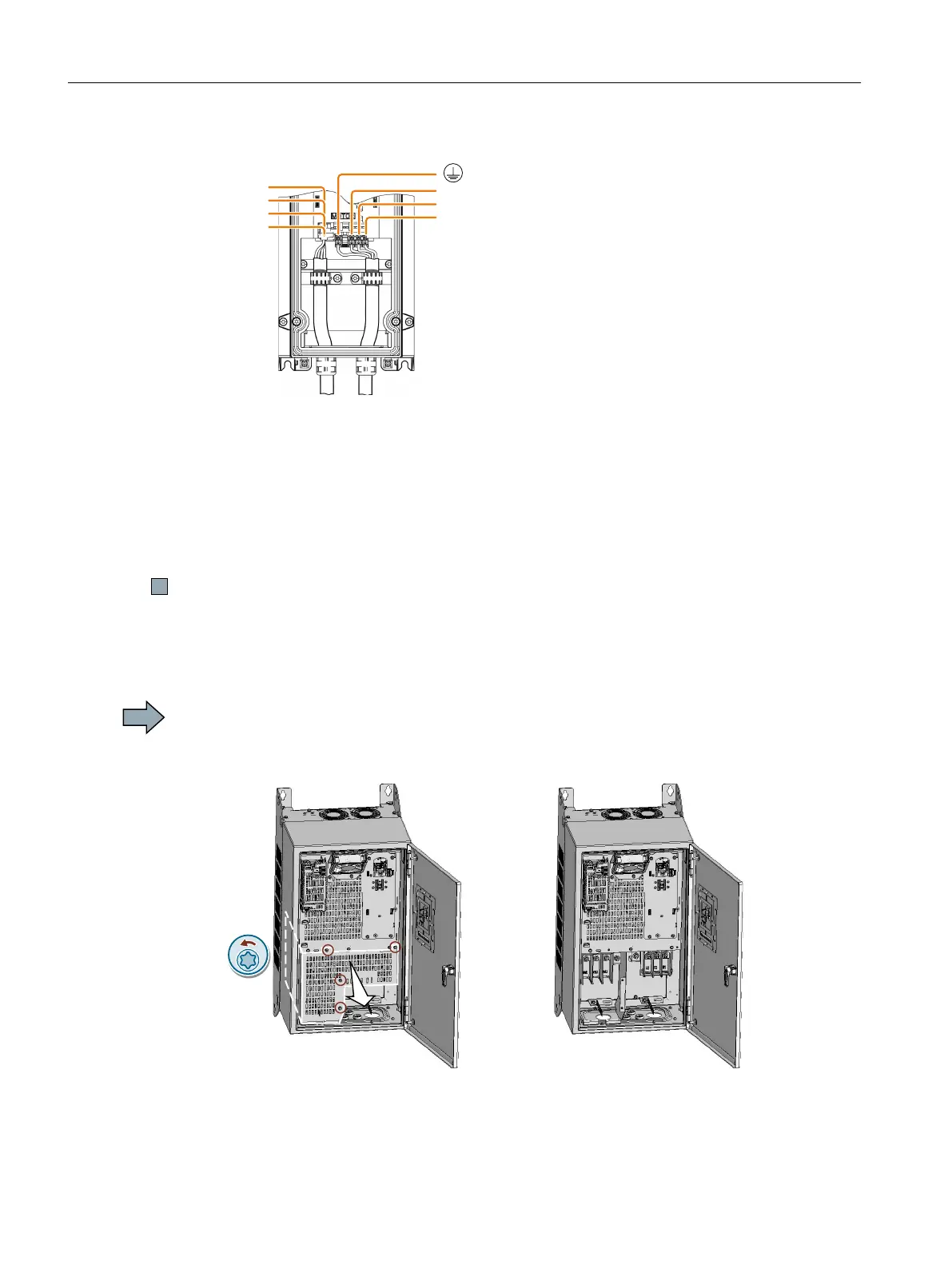

Figure 4-15 Connections for PM230 Power Modules, FSA … FSC
The Power Modules are equipped with removable plug connectors that cannot be
inadvertently interchanged. To remove the connectors, press the red lever to release the
interlock.
9. Fit the front cover of the Power Module.
Make sure that the seal of the front cover is not damaged.
You have now connected both the mains supply and the motor to a FSA … FSC Power Module.
Connecting the mains supply and motor, frame sizes FSD … FSF
Procedure
To connect the mains supply and motor to FSD … FSF Power Modules, proceed as follows:
1. Open the door of the Power Module.
2. Remove the terminal cover.
Installing
4.4 Connecting the line supply and motor
Converter with the CU230P-2 Control Units
92 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
