boards.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
3-57
Nur für den internen Gebrauch Boards for HiPath 3000
Central Board

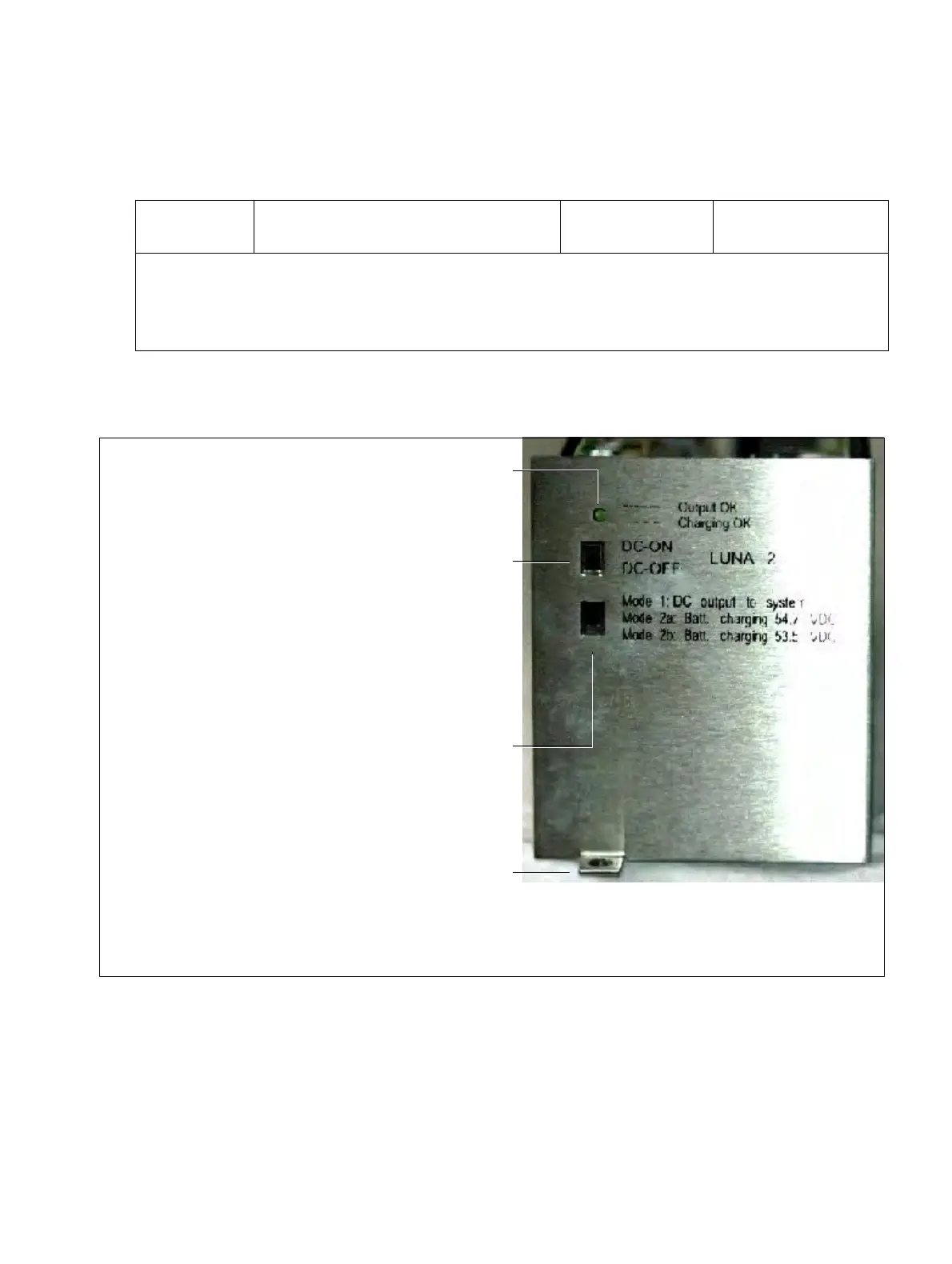

Front view of LUNA2 with indicators and switches
● LED for displaying the operating status:
– Illuminated = LUNA2 is operating as power supply unit
– Flashing = LUNA2 is operating as a battery charger
Measurement conditions:
● All measurements were performed at a room temperature of approximately 22 °C
(71.6 °F).
● The batteries were new and fully charged when measurement started.
Figure 3-16 LUNA2 Front Panel
Table 3-22 LUNA2 - Bridging Times with 48-V/7-Ah Battery Pack, and Powerbox
PB3000
System Power supply unit Load levels Maximum bridg-
ing time
Switches for setting the operating mode
ON/OFF switch for secondary operating voltag-
es (system supply voltages)
LUNA2 can only be plugged in or out when
the system is switched off (switch = DC-OFF)
LED for displaying the operating status
Removal tab
You can insert a screwdriver here to remove
LUNA2 from the shelf.
