Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-396 HiPath 3000/5000 V9, Service documentation
boards.fm
Options
3.4.16 V24/1 (not for U.S.)
Introduction
In connection with the CBCC central board (up to and including S30810-Q2935-A301), the
V24/1 module can be used in HiPath 3550 and HiPath 3350. This provides a serial V.24 inter-
face for connecting PCs, printers or applications.
Interfaces

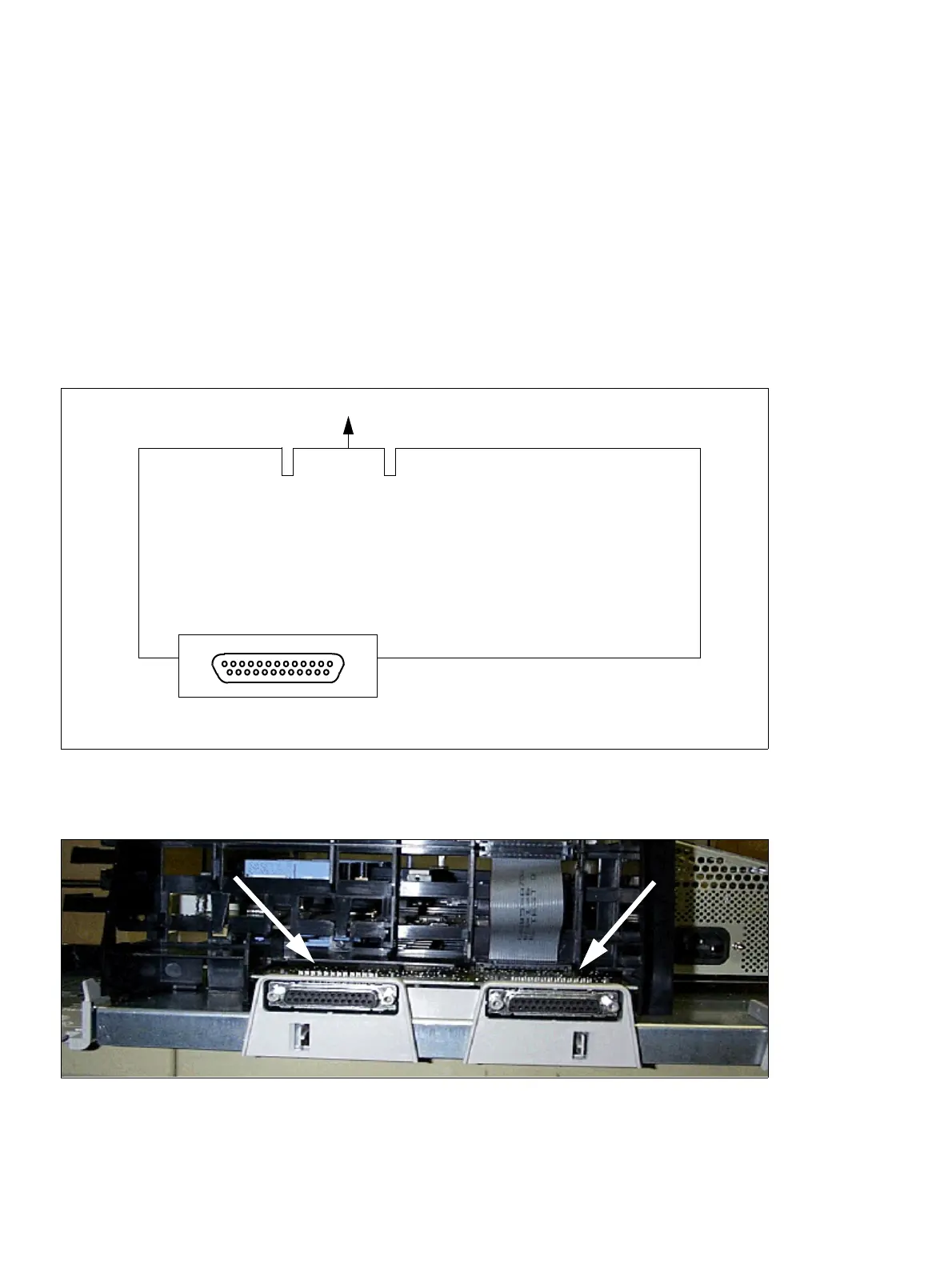

Figure 3-151 V24/1 (not for U.S.) (S30807-Q6916-X100)
Figure 3-152 HiPath 3550 and HiPath 3350 - V.24 Connections
1
26
25-pin Sub-D jack
To CBCC/CBCP (X7) via ribbon cable
X2
Component side
shown
