Peripheral boards
3.3.19 SLMO2, SLMO8
Introduction
The SLMO2 and SLMO8 boards (Subscriber Line Module Optiset) provide U
P0/E
interfaces for
optiPoint and OpenStage telephones in HiPath 3800:
● SLMO2 (S30810-Q2168-X10) = 24 U
P0/E
interfaces
● SLMO8 (S30810-Q2168-X100) = eight U
P0/E
interfaces
Front panel
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

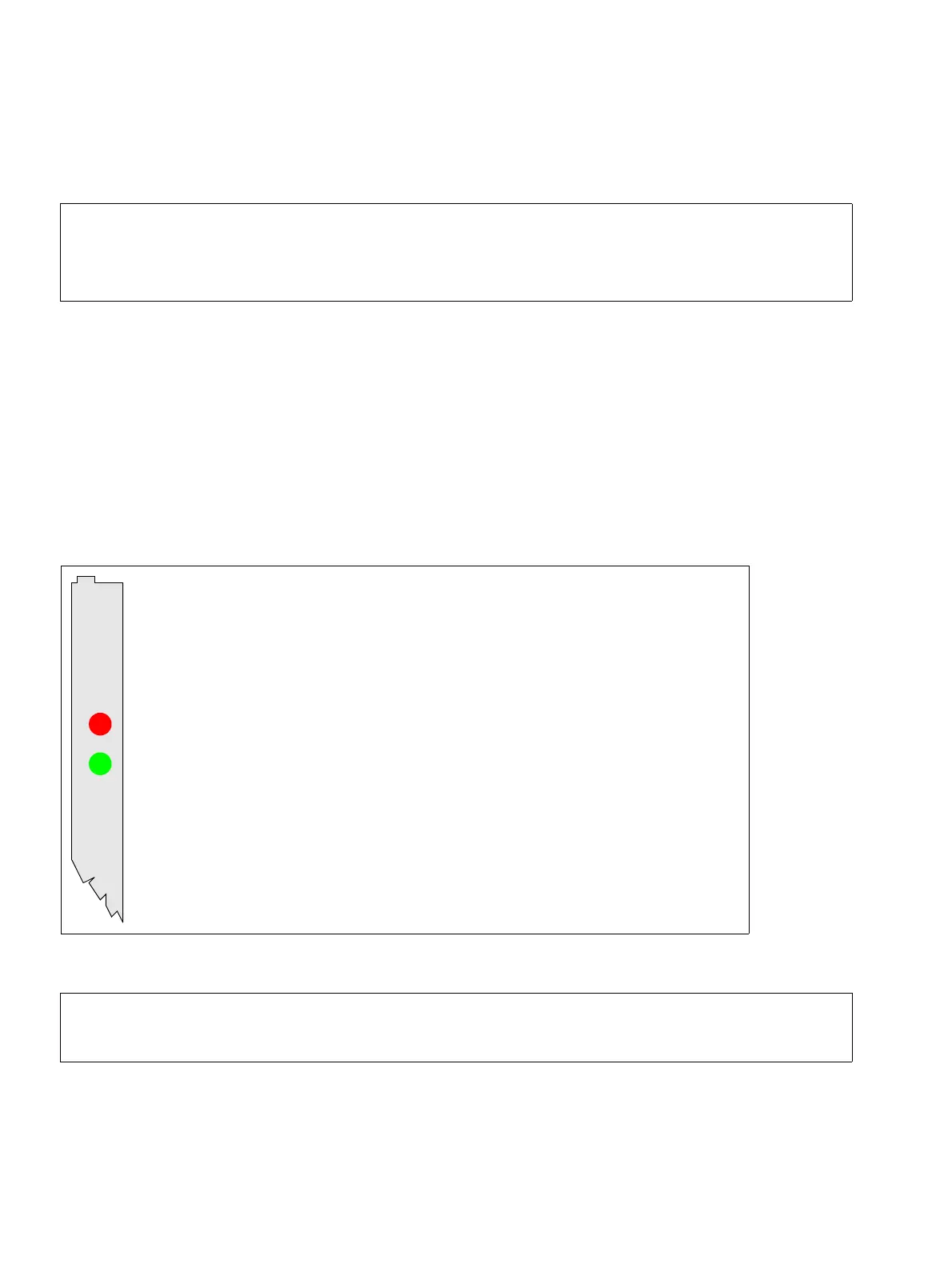

Figure 3-63 SLMO2/SLMO8 - LEDs on the Front Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.1.5.3.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
