wclient.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

10-111

Nur für den internen Gebrauch Workpoint Clients

optiPoint Accessories

10.8.1.2 Power supply unit for optiPoint 410/410 S and 420/420 S

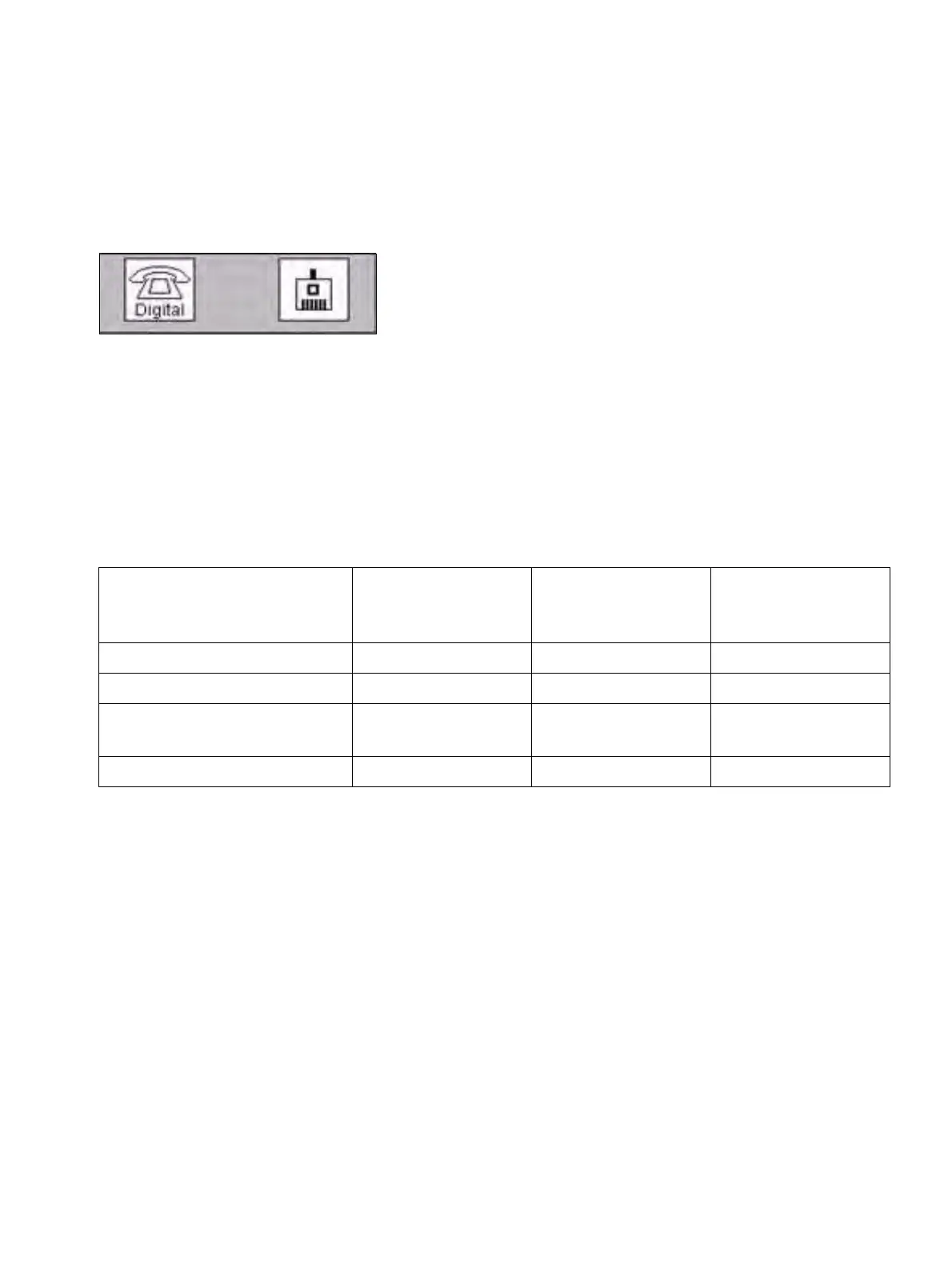

The AC adapter features two MW6 connectors. Power is supplied to a telephone via the left

board marked “Digital”.

Variants

● AC adapter, Euro: C39280-Z4-C510

● AC adapter, UK: C39280-Z4-C512

● AC adapter, 110 V USA: C39280-Z4-C511

Technical specifications

Technical specifications AC adapter, Euro:

C39280-Z4-C510

AC adapter, UK:

C39280-Z4-C512

AC adapter, 110 V

USA:

C39280-Z4-C511

Line voltage 230 Vac 230 Vac 120 VAC

Line frequency 50 Hz 50 Hz 60 Hz

Output voltage max. 43 VDC,

min. 30 VDC

max. 43 VDC,

min. 30 VDC

max. 43 VDC,

min. 30 VDC

Output current 480 mA 480 mA 480 mA
