wclient.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
10-73
Nur für den internen Gebrauch Workpoint Clients
optiPoint 410 / optiPoint 410 S and optiPoint 420 / optiPoint 420 S
10.2.4.2 optiPoint 410 display module
This is an add-on device with a graphic swivel display (240 x 320 pixels) with touchscreen func-
tionality, background illumination, and navigation keys.
Main features
● Graphical user interface
● Local personal telephone directory
● Access to company-wide telephone directory via LDAP
● WAP browser
● Voice-controlled dialing
● Call list containing all incoming and outgoing calls
● Speed-dialing list
● Online help
Connection
The optiPoint 410 display module must always be installed as the first add-on device, in other
words, connected directly to the telephone.
The connection to the telephone is made over an interface cable with the following connectors:
input MW6, output MW8. The power supply is ensured via the connected telephone.

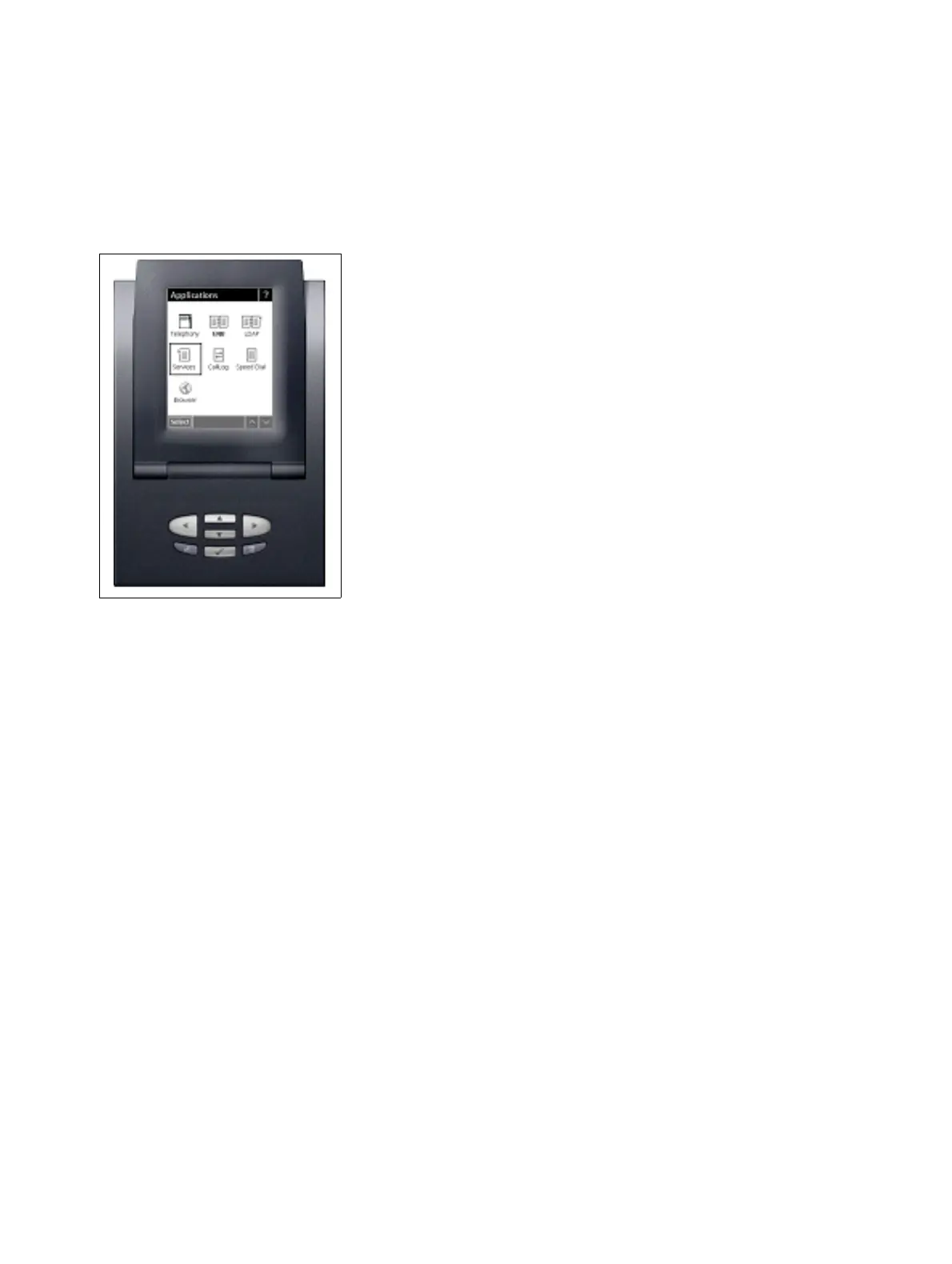

Figure 10-34 optiPoint 410 display module
