Peripheral boards
3.3.31 TM2LP
Introduction
The TM2LP (Trunk Module Loop Procedure) board connects up to eight analog trunks to Hi-
Path 3800 using the loop-start protocol.
Front panel
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

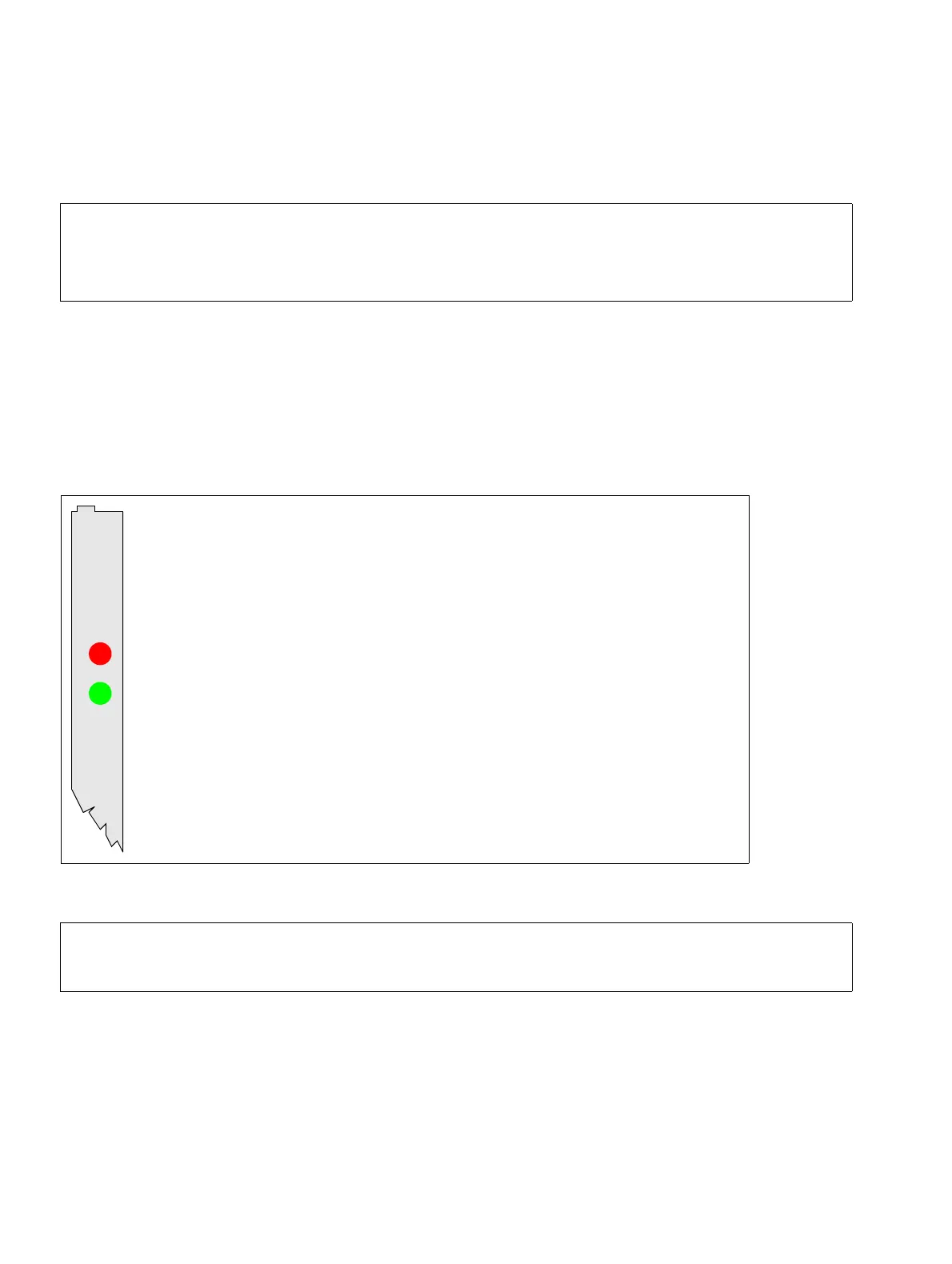

Figure 3-92 TM2LP - Front Panel (S30810-Q2159-Xxxx)
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.1.5.3.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
