optiPoint 500
10.5.3 optiPoint 500 Adapters
The different optiPoint 500 adapters (not optiPoint 500 entry and optiPoint 500 economy) allow
flexible expansion of the telephone workstation by providing additional device connections
(such as personal computers, fax equipment, telephones, headsets).
The adapters, which are connected on the bottom of the telephone, are plug “n” play”. When a
new telephone adapter configuration is plugged in, it generates a reset; a setup message no-
tifies the system of the new configuration.
The user usually installs the adapter. The installation instructions are on the “Electronic Oper-
ating Instructions” CD.
Option bays
7
Caution
Always disconnect the line cord before connecting adapters to the telephone or re-
moving them from the telephone.

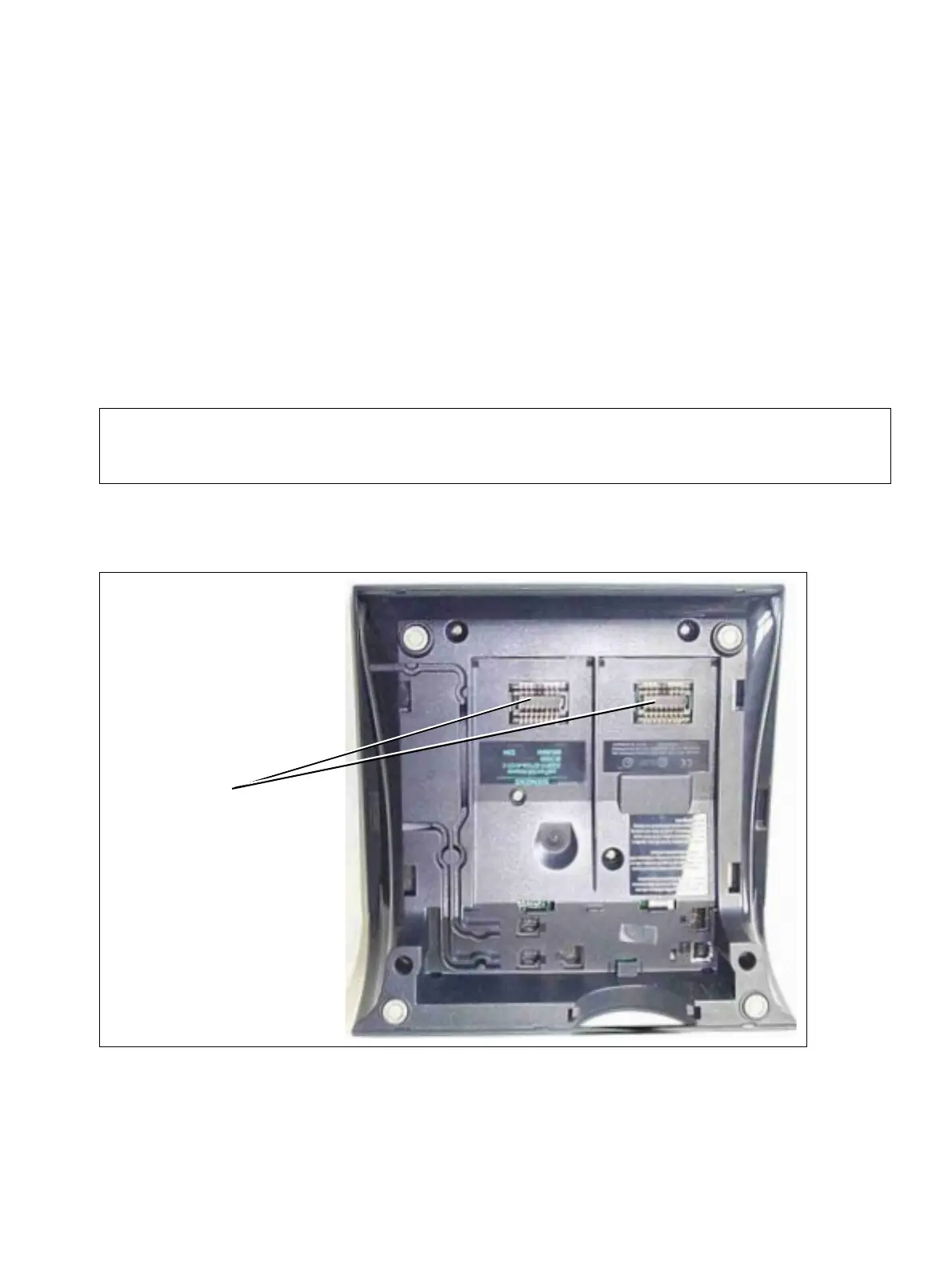

Figure 10-44 optiPoint 500 Option Bays
Option bays:
● 2 x for optiPoint 500
advance (shown
here)
● 1 x for optiPoint 500
basic and optiPoint
500 standard
