Siemens Hipath 5000 Service Documentation

Workpoint Clients Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
10-94 HiPath 3000/5000 V9, Service documentation
wclient.fm
optiPoint 500
The device is connected to the telephone or to an optiPoint key module over an interface cable
with the following connectors: RJ11 input (MW6), RJ45 output (MW8).
Power is supplied by a local PSU (see Section 10.8.1.1) that can power up to two optiPoint
BLFs. The power supply unit must be plugged directly into the designated optiPoint BLF port.
10.5.2.3 Possible Configurations for the Key Modules
The following table shows the possible configurations for key modules on telephones from the
optiPoint 500 family (not optiPoint 500 entry and optiPoint 500 economy).

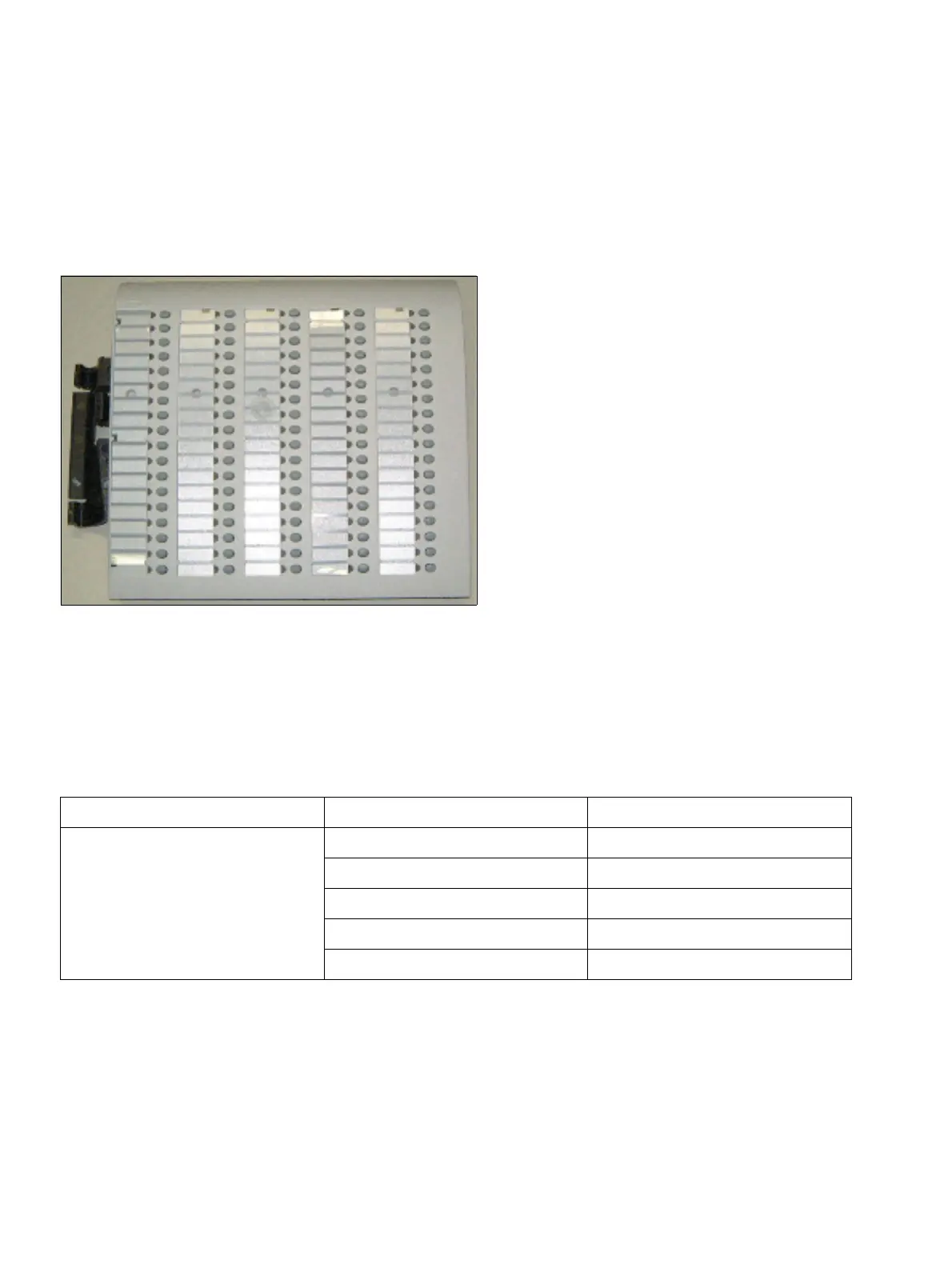

Figure 10-43 optiPoint BLF
Table 10-6 Key module configurations on an optiPoint 500 telephone
optiPoint 500 telephone 1st key module 2nd key module
optiPoint 500 basic
optiPoint 500 standard, opti-
Point 500 standard SL (for
U.S. only)
optiPoint 500 advance
optiPoint key module –
optiPoint key module optiPoint key module
optiPoint key module optiPoint BLF
optiPoint BLF –
optiPoint BLF optiPoint BLF
1
1 Configuration with two optiPoint BLFs only with HiPath 3800

Siemens Hipath 5000 Specifications

General

Brand	Siemens
Model	Hipath 5000
Category	Telephone
Language	English
