A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

3-399

Nur für den internen Gebrauch Boards for HiPath 3000

Options

3.4.18 V.24 Cable

The V.24 cable is used, for example, for connecting a service PC to the V.24 interface on all

HiPath 3000 systems (V1.2 or later).

V.24 cable assignment

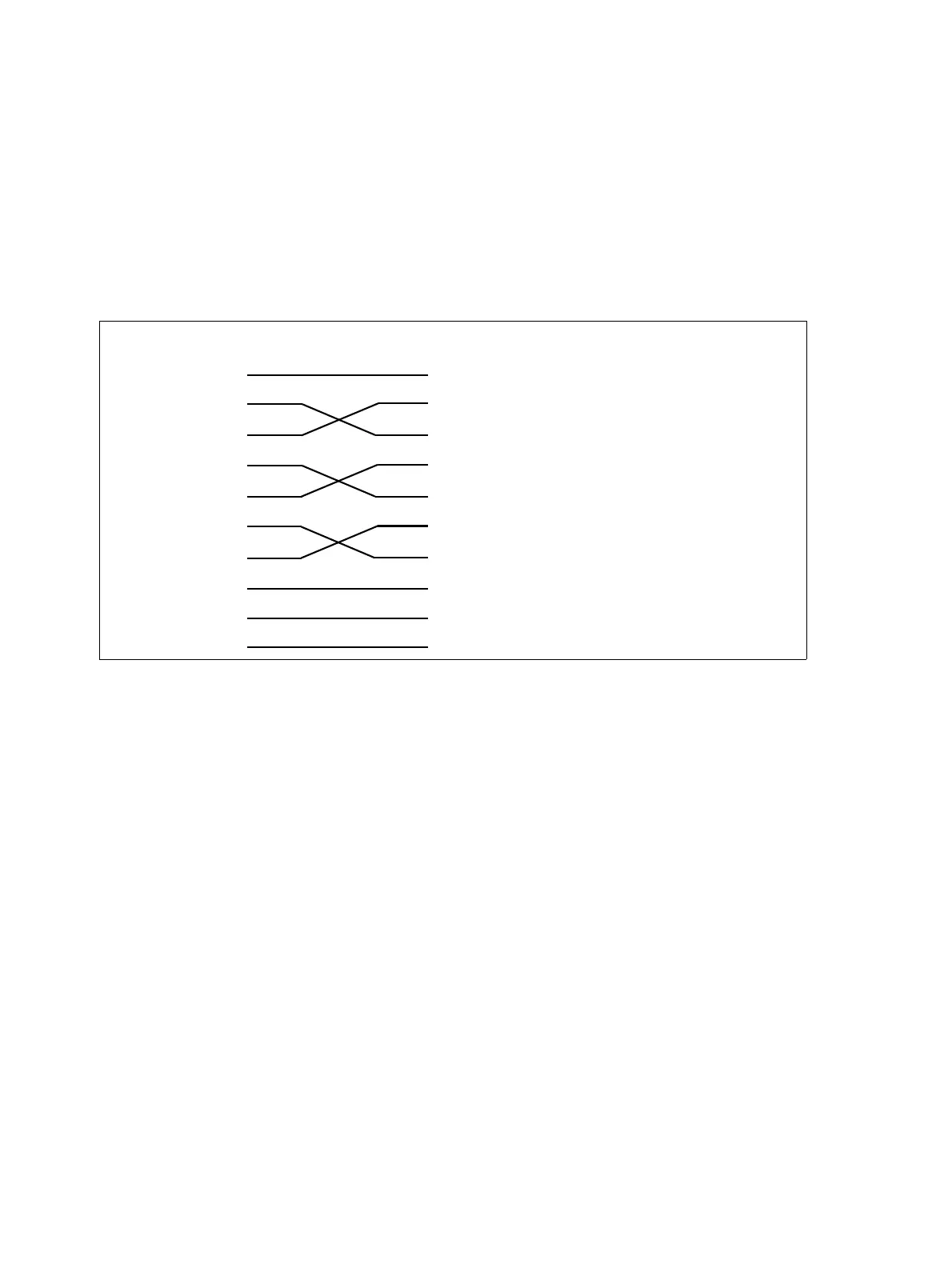

Figure 3-154 V.24 Cable Assignment (C30267-Z355-A25)

9-pin jack

DCD

RxD

TxD

DTR

DSR

RTS

CTS

GND

Shield

Data Carrier Detect

Receive Data

Transmit data

Data Terminal Ready

Data Send Ready

Request to send

Clear to send

Ground

Ring Indicator

DCD

RxD

TxD

DTR

DSR

RTS

CTS

GND

9-pin jack
