Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-318 HiPath 3000/5000 V9, Service documentation
boards.fm
Peripheral boards
3.3.40 TMDID2 (for selected countries only)
Introduction
TMDID2 (Trunk Module Direct Inward Dialing) provides direct inward dialing from the central
office (CO) to HiPath 3800 V6.0 SMR-10 or later.
The board has eight trunk circuits that connect to analog trunks. The board supports the proto-
cols Wink Start, Delay Dial, and Immediate Start.
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

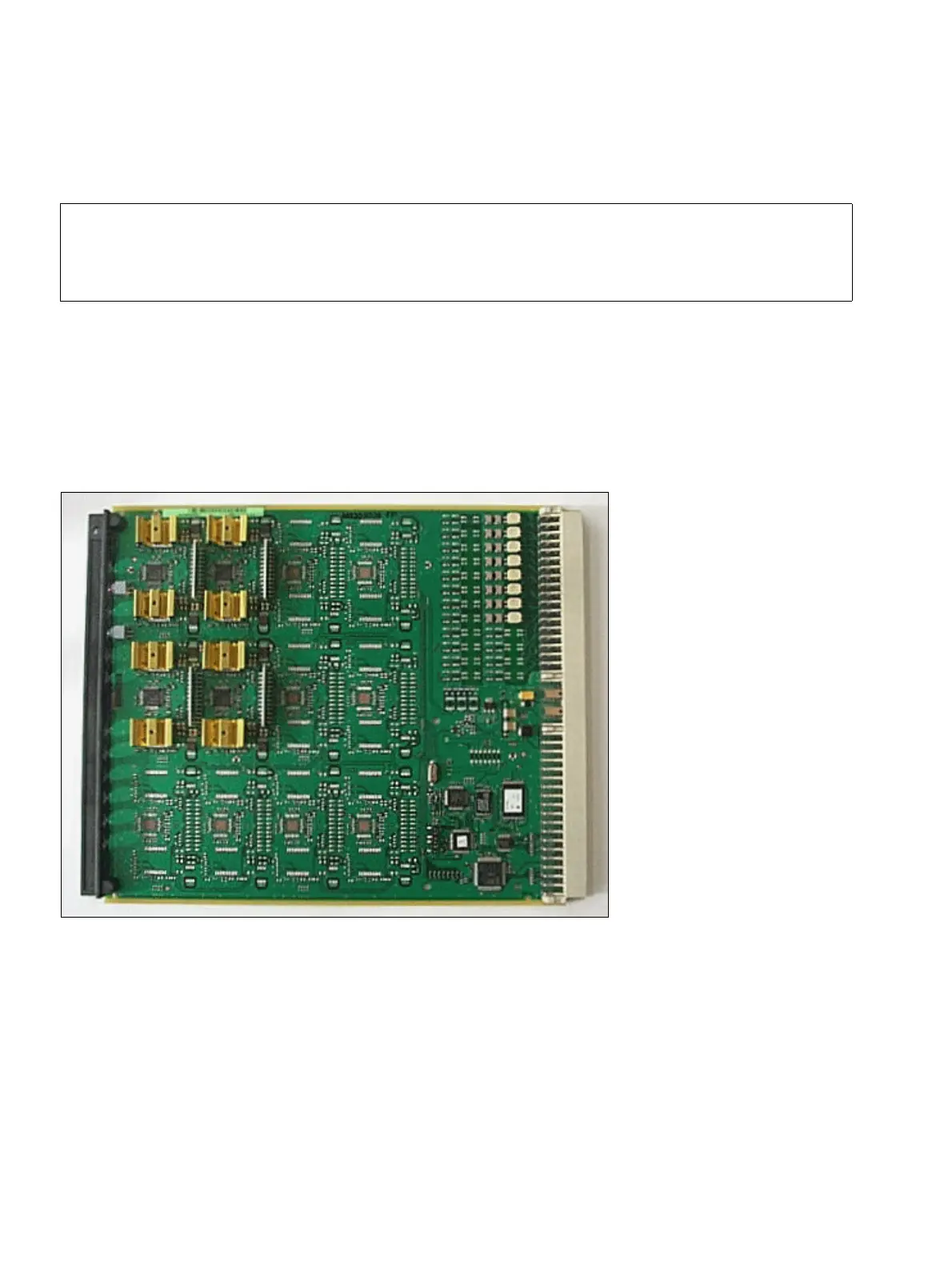

Figure 3-109 TMDID2 (S30810-Q2197-T) (for selected countries only)
