Installing HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

4-42 HiPath 3000/5000 V9, Service documentation

inst_h3.fm

Installing HiPath 3800

4.1.5.5 Installing the SIVAPAC-SIPAC Board Adapter

The peripheral board slots on the HiPath 3800 are fitted with SIPAC 9 SU connectors. The

TMEW2 and TMDID (for U.S. only) boards have SIVAPAC connector strips and as a result,

SIVAPAC-SIPAC board adapters have to be installed in order to use them in HiPath 3800.

The SIVAPAC-SIPAC board adapter consists of three individual parts (refer to Figure 4-22):

● two adapter modules

● one startup module

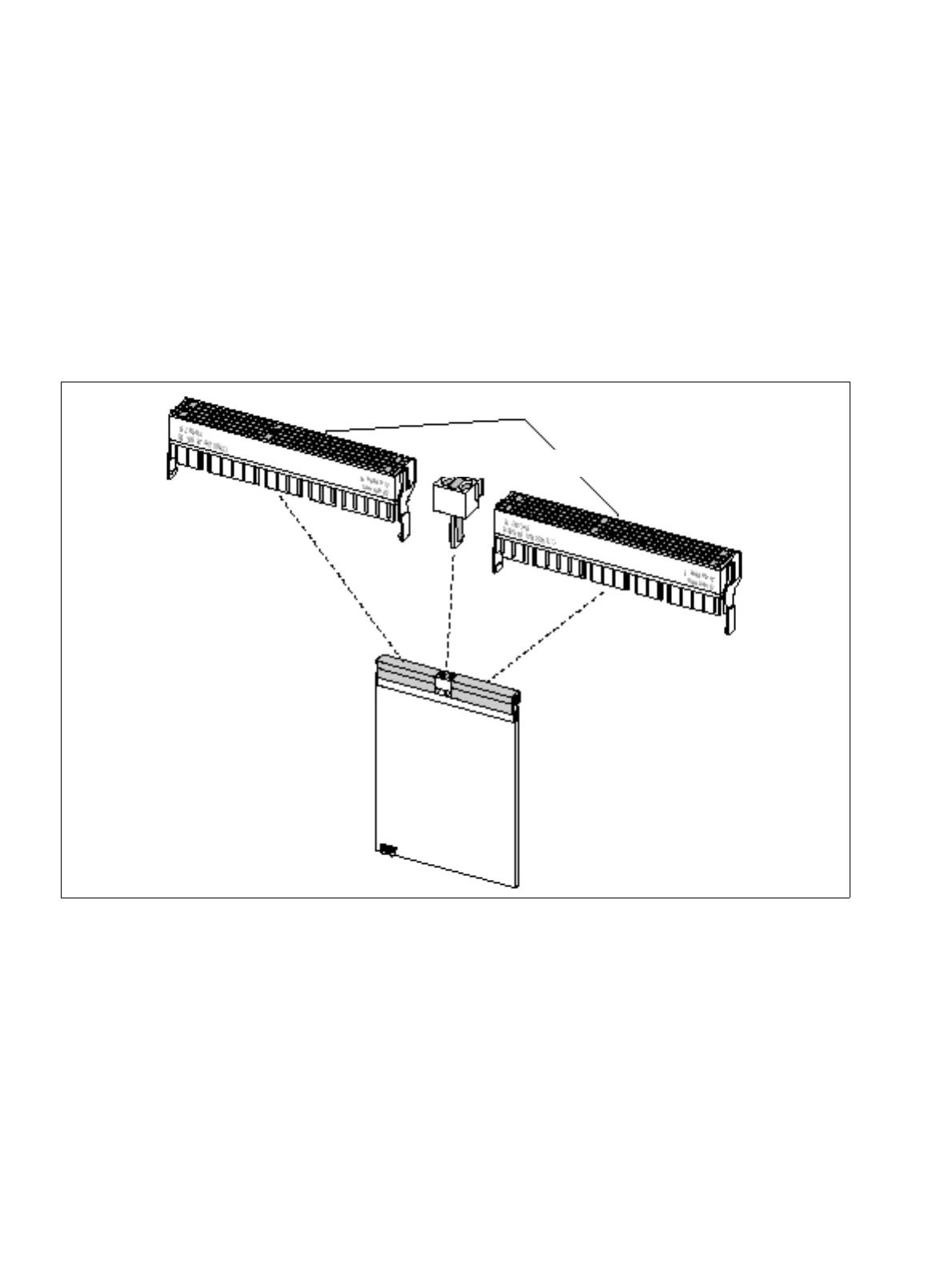

Figure 4-22 SIVAPAC-SIPAC board adapter

Component

side

Adapter modules

Startup module

Board

Default Chapter3
