sysdat.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
2-7
Nur für den internen Gebrauch System Data
HiPath 3000
2.1.4.2 Design and Dimensions of HiPath 3550
Design
The housing intended for wall mounting (Figure 2-2) HiPath 3550 contains one shelf with six
slot levels. The slot levels (shown in Figure 4-58), numbered in ascending order from the at-
tachment side, have the following assignments:
Slot levels 1-3: peripheral boards (two slots per level).
Slot level 4: CBCC control board only.
Slot level 5: SIPAC slot
Slot level 6: optional boards (up to 5 modules)
The power supply is on the rear panel of the subrack.
The connection cables to the peripherals (telephones, trunk connections etc.) can be connect-
ed directly. Use an external MDFU in certain situations (CMI).
Dimensions

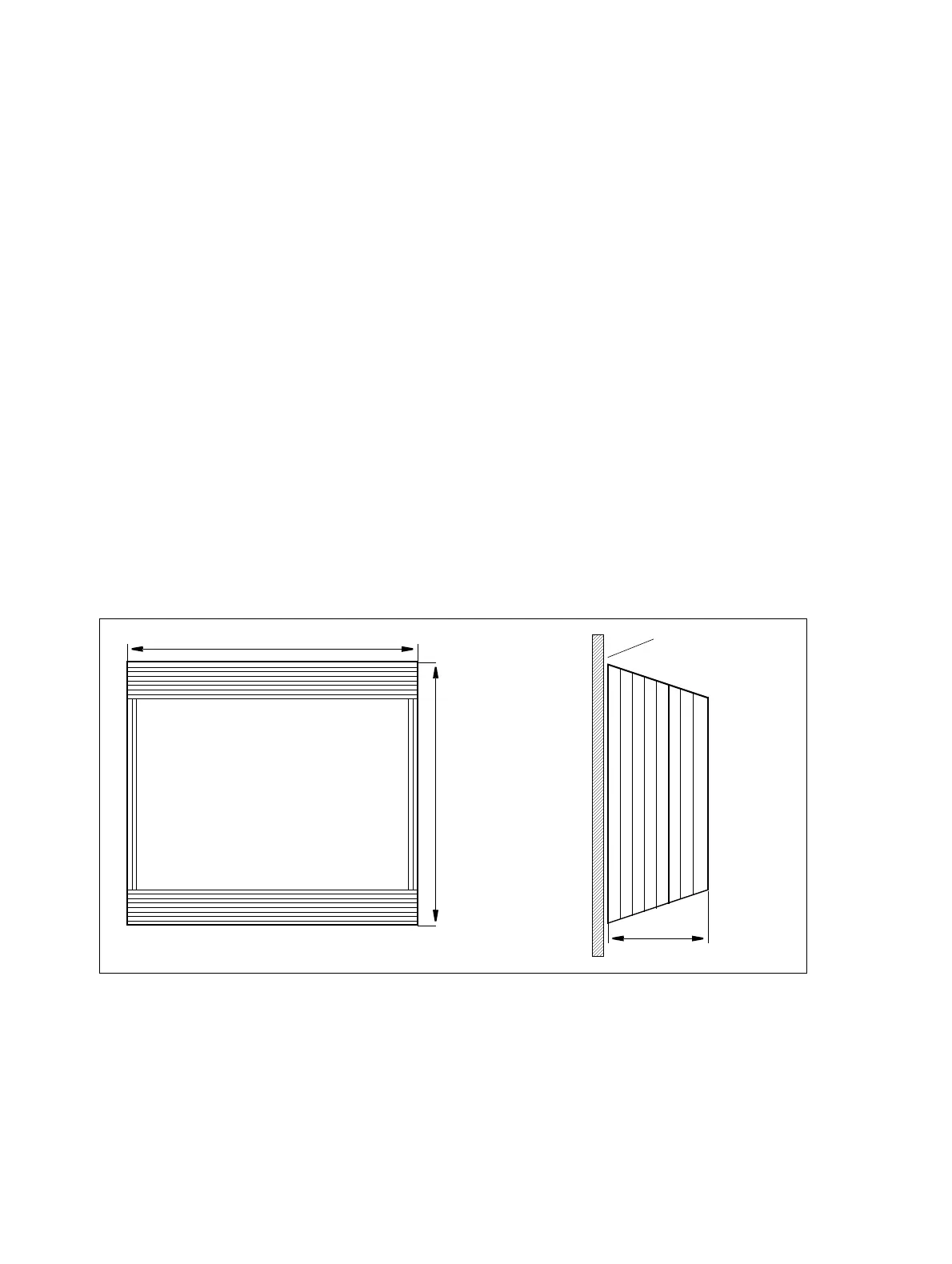

Figure 2-2 HiPath 3550 Dimensions
460 mm
Mounting sur-
face
450 mm
200 mm
