Options
3.4.3 ANI4 (for selected countries only)
Introduction
The ANI4 (Automatic Number Identification) board is responsible for receiving station numbers
modulated using the CPFSK method, demodulating them, and forwarding them to the base
system HiPath 3550 and HiPath 3350. In V4.0 SMR-7 or later, the station name is analyzed in
addition to the call number and shown on the telephone display.
Each ANI4 can serve four trunks. It contains the external trunk board hardware interfaces
(TMGL4) as well as a trunk and options bus interface. The trunks are transferred directly on the
board between the trunk and the trunk board interfaces.
Interfaces on the ANI4 module
LED statuses and their meanings
On the ANI4 board two LEDs are implemented that show the status of trunk channel 1.
After system startup the green LED is on and the red LED is off. This signals that the layer-1
firmware has started correctly.
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

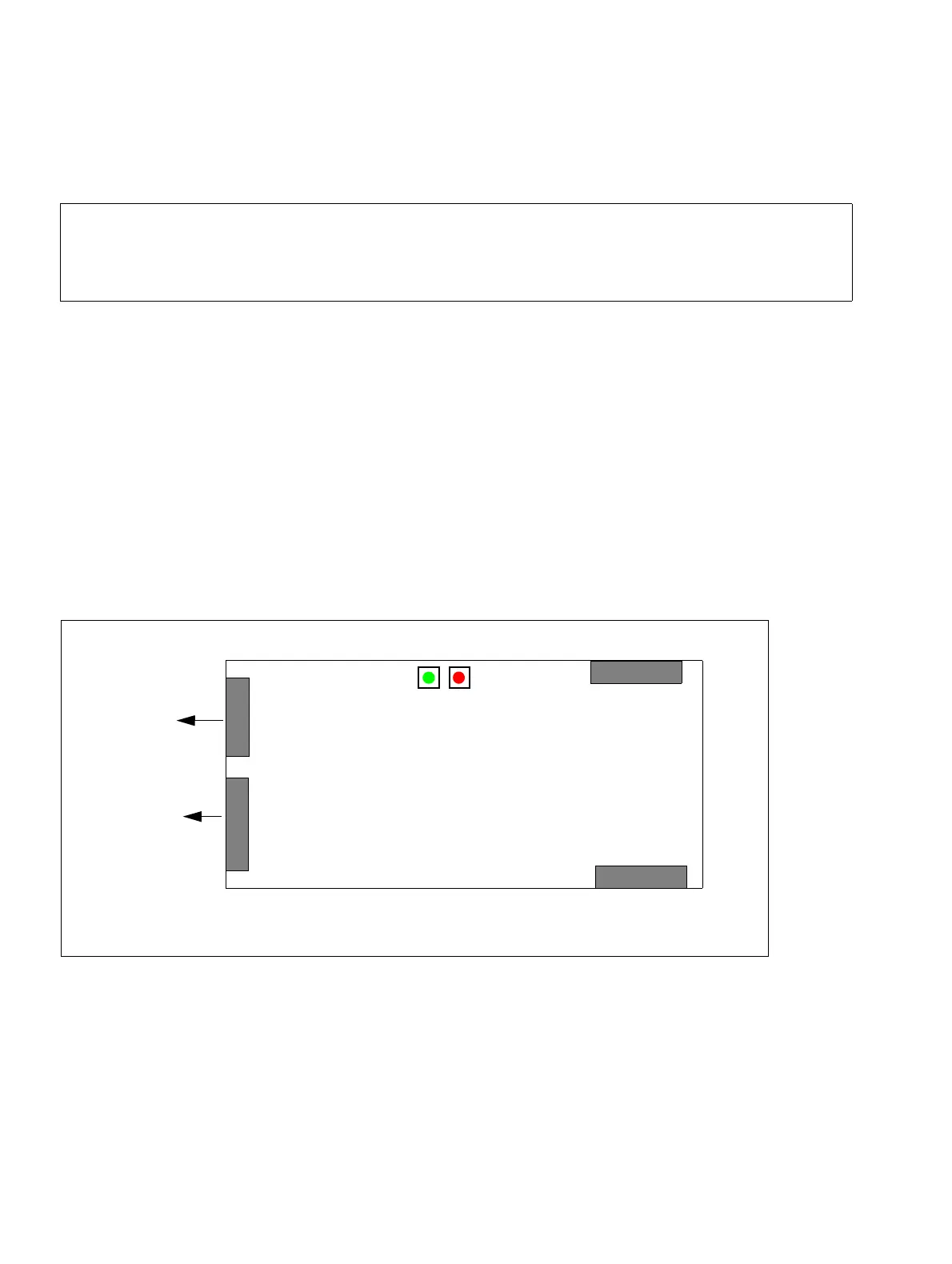

Figure 3-129 ANI4 (for selected countries only) - Interfaces (S30807-Q6917-Axxx)
CBside
Board side
TMGL4
X 1
X 2
X 3 *)
X 4
Tru nk
ANI4
2/1
4/3
6/5
8/7
10/9
1
8
*) Pins: Component side/solder side
(green) (red)
LEDs
