optiPoint Accessories

10.8.2 Headsets

A headset replaces the telephone handset, which means that the user’s hands are free when

telephoning. Cordless headsets (121 TR 9-5) may also be used.

Note: A headset key can be configured for the optiPoint. This allows the user to take calls and

to switch between the handset and the headset.

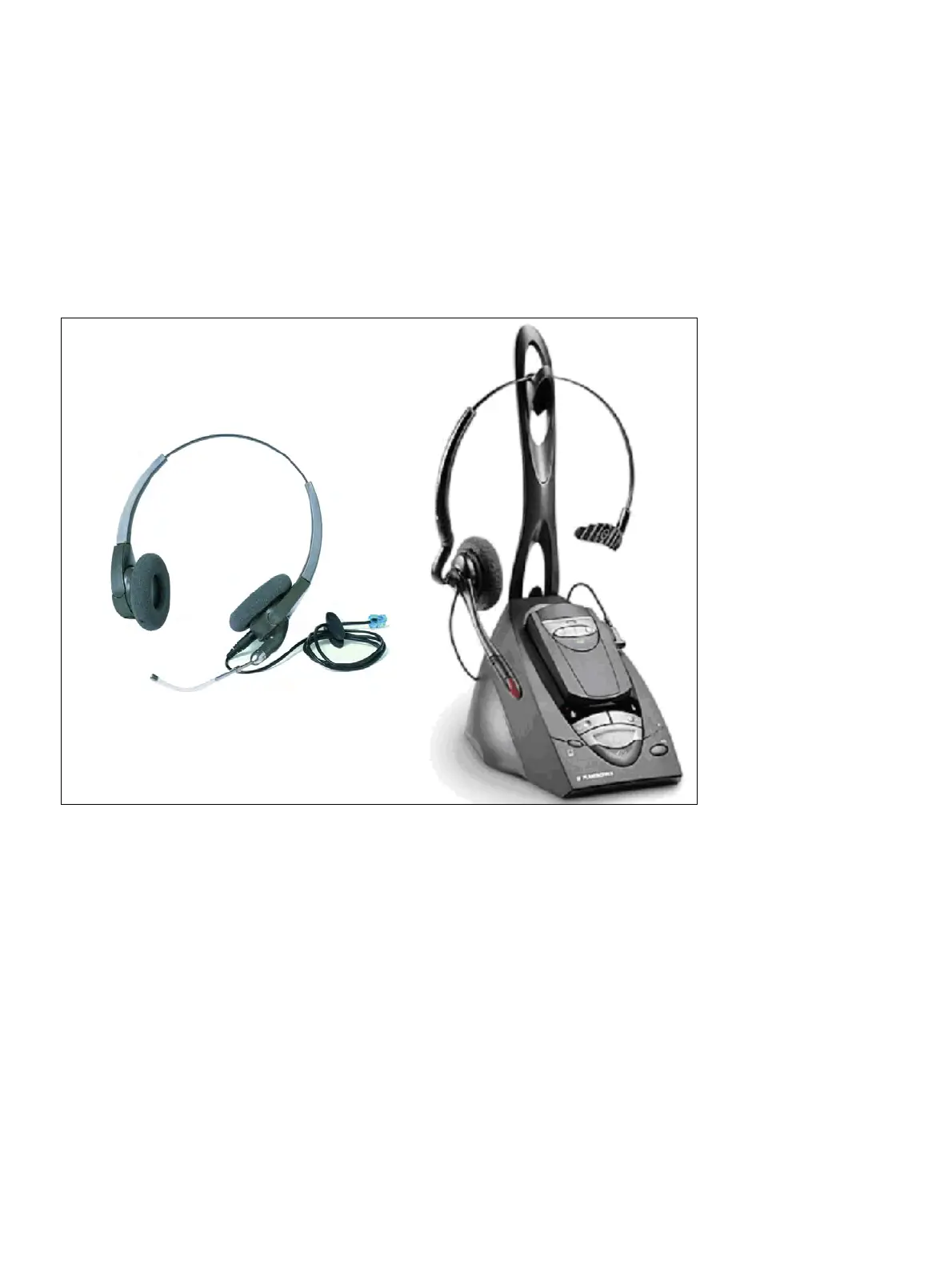

Figure 10-54 Example: Corded and Cordless Headsets
