optiPoint 500
10.5.1.2 optiPoint 500 economy (not for U.S.)
Main features
● 12 function keys with LEDs (4 can be modified with HiPath 3000/5000 Manager E, 8 freely
programmable; for information on key programming, see Section 10.6)
● Alphanumeric LCD display (swivel) with 2 lines, 24 characters each
● 3 dialog keys for interactive user prompts: “Yes”, “Back”, and “Next”
● Open listening
● 2 volume adjustment keys (plus/minus), pitch and display contrast
● Suitable for wall mounting
● No modularity (no connection option for adapters or key modules)
Standard key assignment (default) for optiPoint 500 economy
Refer to Section 10.5.1.6 for connection requirements.

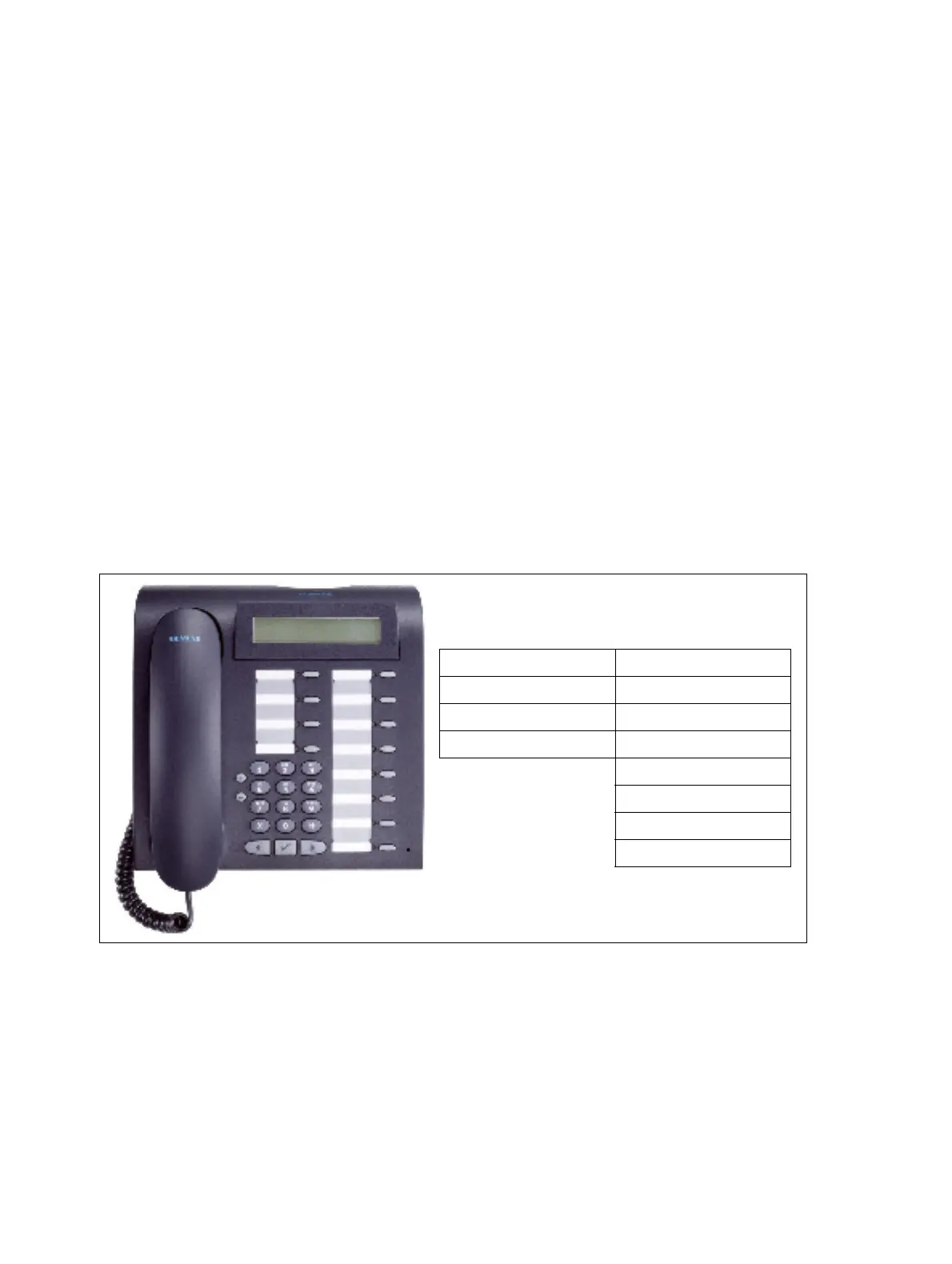

Figure 10-37 optiPoint 500 economy (not for U.S.) Standard Key Layout
Service Programmable
Redial Programmable
Microphone on/off Programmable
Loudspeaker Programmable
Programmable
Programmable
Programmable
Disconnect
