Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-270 HiPath 3000/5000 V9, Service documentation
boards.fm
Peripheral boards
3.3.32 TMAMF (for selected countries only)
Introduction
The TMAMF (Trunk Module Analog for MultiFrequency Code Signaling) board contains eight
trunks for analog direct inward dialing. The system supports MFC-R2 signaling (default set-
ting), MFC-R2 with caller ID, tone dialing, and dial pulsing. It is not possible to use DTMF and
MFC-R2 (with or without caller ID) simultaneously.
The board is implemented in HiPath 3550 and has the part number S30810-Q2587-A400.
Switches and LEDs
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

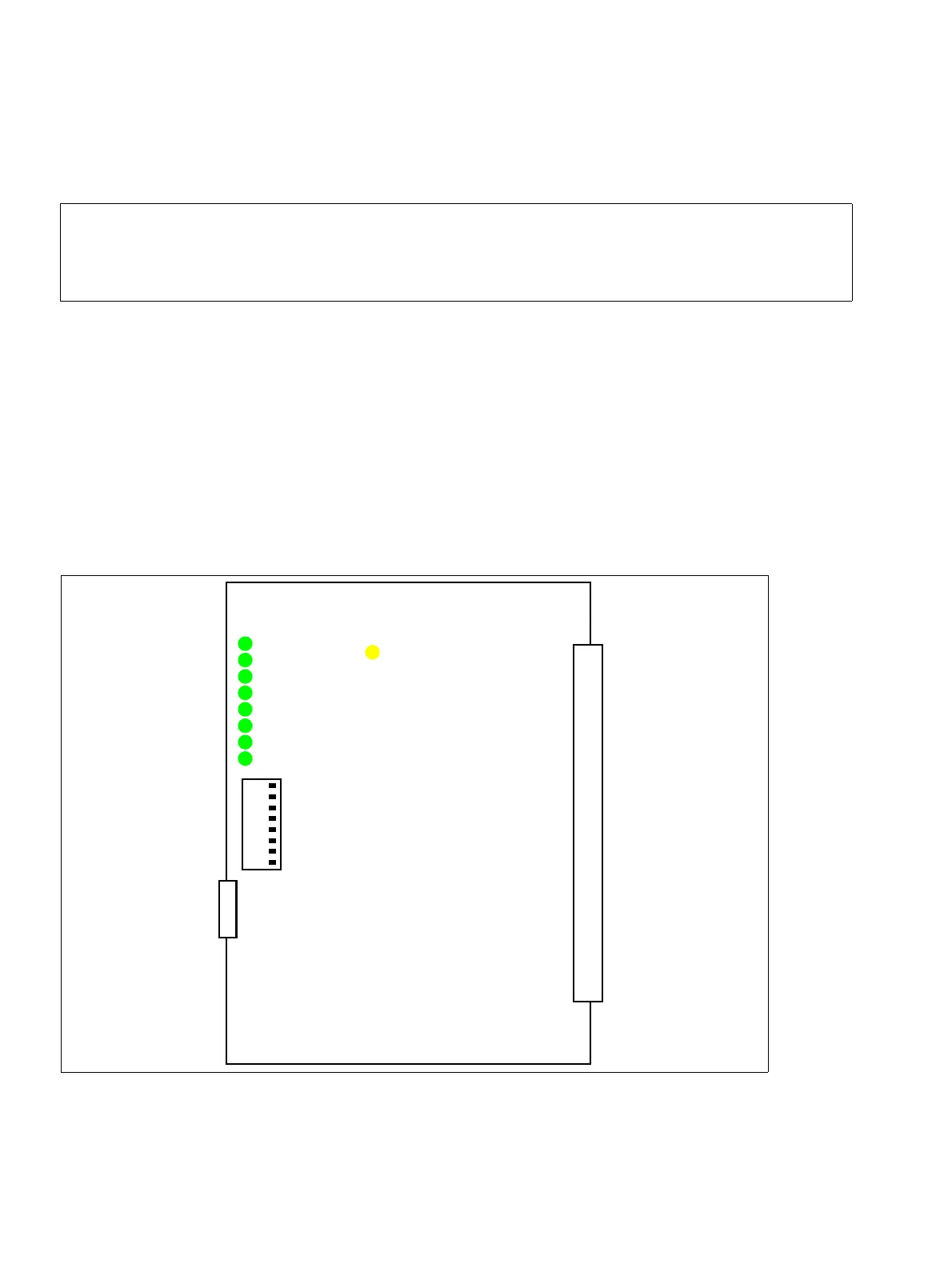

Figure 3-93 TMAMF (S30810-Q2587-Axxx)
H0 (green)
:
:
:
:
H7
Lockout switch S501
(factory default)
On
0
:
:
7
LEDs
H100 (yellow)
Subminiature D connector for
DSP diagnosis
