optiPoint 500
10.5.1.3 optiPoint 500 basic
Main features
● 12 function keys with LEDs (4 can be modified with HiPath 3000/5000 Manager E, 8 freely
programmable; for information on key programming, see Section 10.6)
● Alphanumeric LCD display (swivel) with 2 lines, 24 characters each
● 3 dialog keys for interactive user prompts: “Yes”, “Back”, and “Next”
● Open listening
● 2 volume adjustment keys (plus/minus), pitch and display contrast
● Interfaces and slots:
– 1 USB 1.1 interface
– 1 option bay
– 1 interface for up to 2 add-on devices
● Suitable for wall mounting
Standard key assignment (default) for optiPoint 500 basic
Refer to Section 10.5.1.6 for connection requirements.

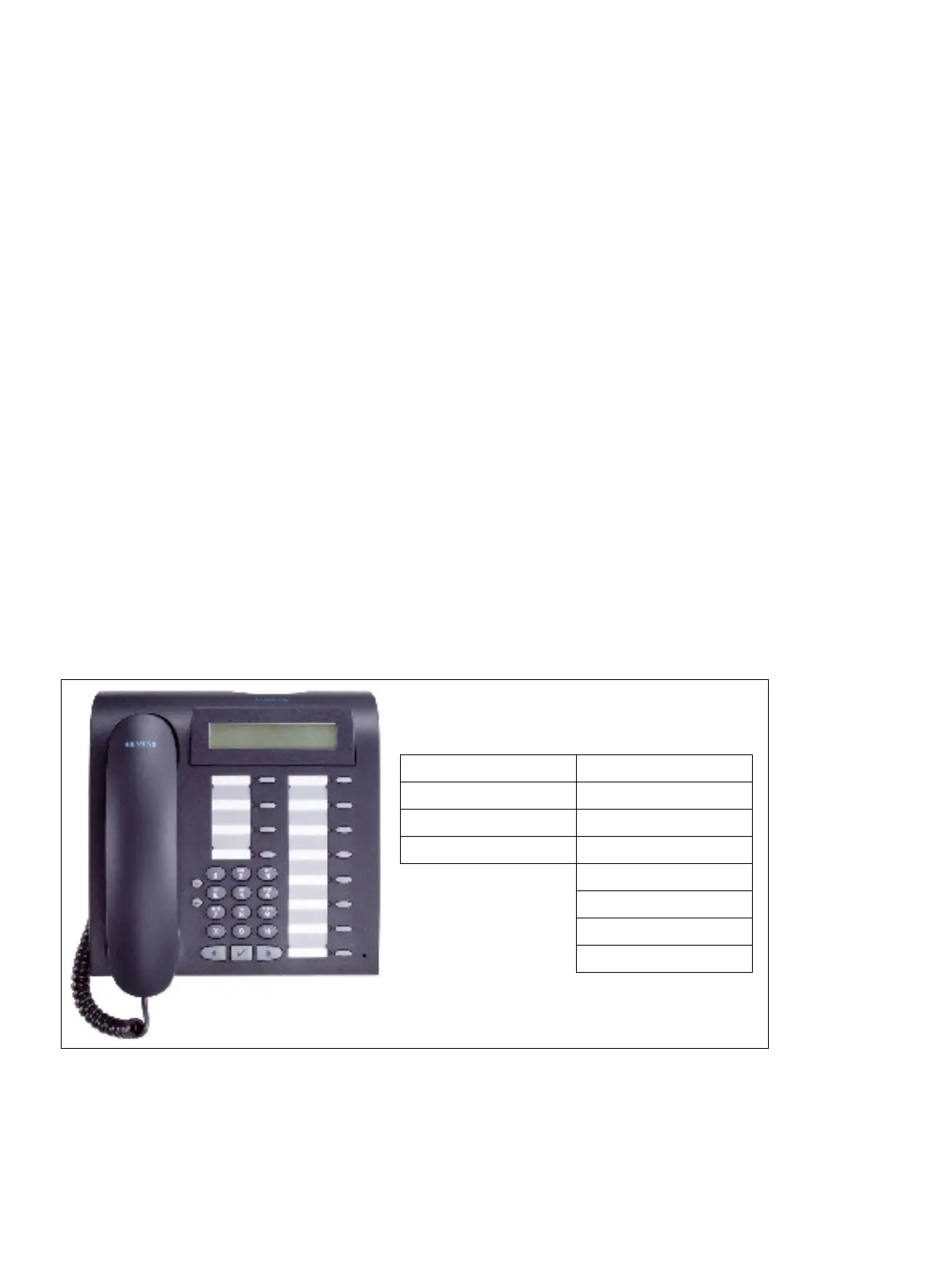

Figure 10-38 optiPoint 500 basic - Standard Key Assignment (Default)
Service Programmable
Redial Programmable
Microphone on/off Programmable
Loudspeaker Programmable
Programmable
Programmable
Programmable
Disconnect
To Next Page
