3.3.47 4SLA (not for U.S.), 8SLA, 16SLA (Not for U.S.)
Introduction
The 4SLA, 8SLA, and 16SLA (Subscriber Line Analog) modules for analog T/R interfaces con-
nect HiPath 3550 and HiPath 3350 (wall housing) to conventional analog telephones and sup-
plementary equipment (such as group 3 fax machines and entrance telephone adapters).
Interfaces
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

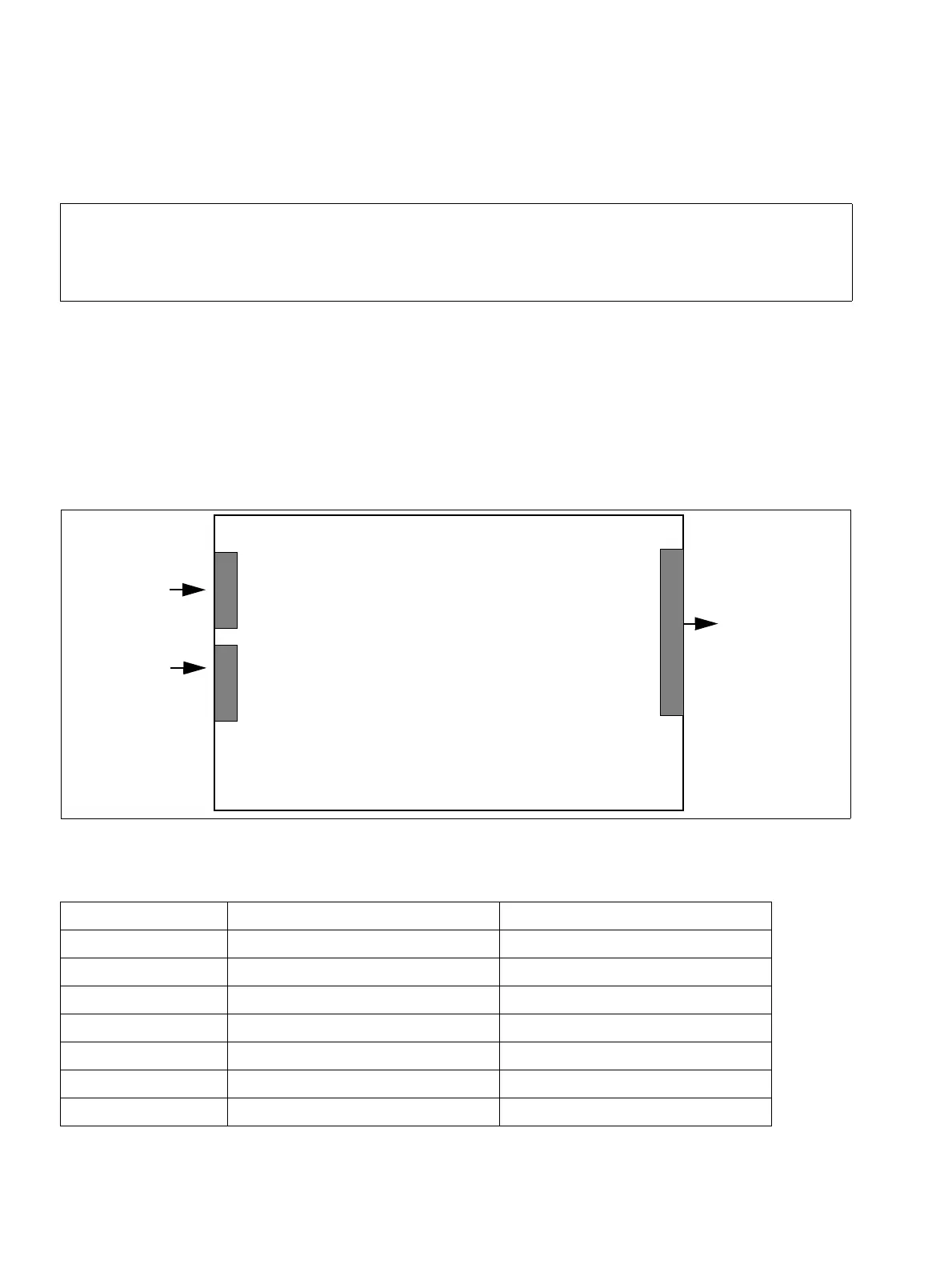

Figure 3-122 4SLA (not for U.S.), 8SLA - Interfaces (S30810-Q2923-X200, -X100)
Table 3-170 4SLA (not for U.S.), 8SLA Contact Assignments
Contact X2 (T/R ports 1 to 4) X3 (T/R ports 5 to 8)
1a 1 a 5
2b 1 b 5
3a 2 a 6
4b 2 b 6
5a 3 a 7
6b 3 b 7
7a 4 a 8
T/R ports
1-4
Stns. 1 to 4
T/R ports
5-8
Stns. 5 to 8
(not with
4SLA)
X1
50
2
X2
X3
4/8SLA
1
8
1
8
To CUP/CUC
