wclient.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

10-69

Nur für den internen Gebrauch Workpoint Clients

optiPoint 410 / optiPoint 410 S and optiPoint 420 / optiPoint 420 S

10.2.3.1 Connections on the Bottom of the Telephone

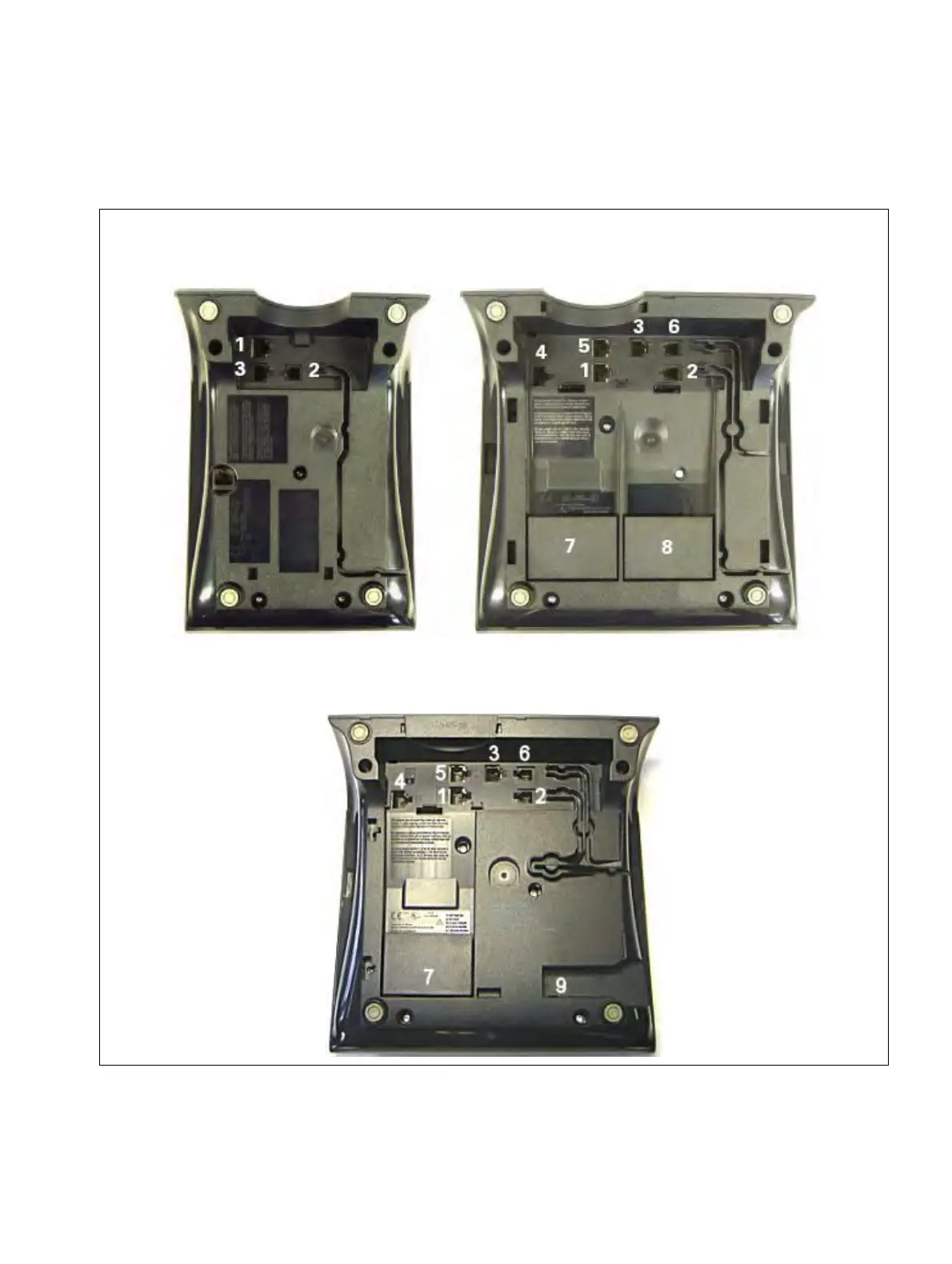

Figure 10-32 optiPoint 410, 420, 410 S, 420 S - Connection Options

optiPoint 410 entry,

optiPoint 410 entry S

optiPoint 410, 420 standard,

optiPoint 410, 420 standard S

optiPoint 410, 420 advance,

optiPoint 410, 420 advance S
