Siemens Hipath 5000 Service Documentation

wclient.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
10-71
Nur für den internen Gebrauch Workpoint Clients
optiPoint 410 / optiPoint 410 S and optiPoint 420 / optiPoint 420 S
10.2.4 Key Modules for optiPoint 410/410 S and 420/420 S
Installing the key modules
The user usually installs the add-on devices. The installation instructions are on the “Electronic
Operating Instructions” CD.
Number of key modules
Up to two add-on devices may be mounted on an optiPoint 410/optiPoint 410 S or optiPoint
420/optiPoint 420 S terminal (not optiPoint 410 entry, optiPoint 410 entry S, optiPoint 410 econ-
omy, optiPoint 410 economy S, optiPoint 410 economy plus, optiPoint 410 economy plus S,
optiPoint 420 economy, optiPoint 420 economy S, optiPoint 420 economy plus and optiPoint
420 economy plus S).
10.2.4.1 optiPoint self labeling key module
The optiPoint self labeling key module is an add-on device that should be mounted on the side
of the telephone; it provides an additional 13 keys, LEDs, and displays for all purposes. Self-
labeling key means that each key is assigned a display (one line with 12 characters) in which
the function or call number currently saved is shown.

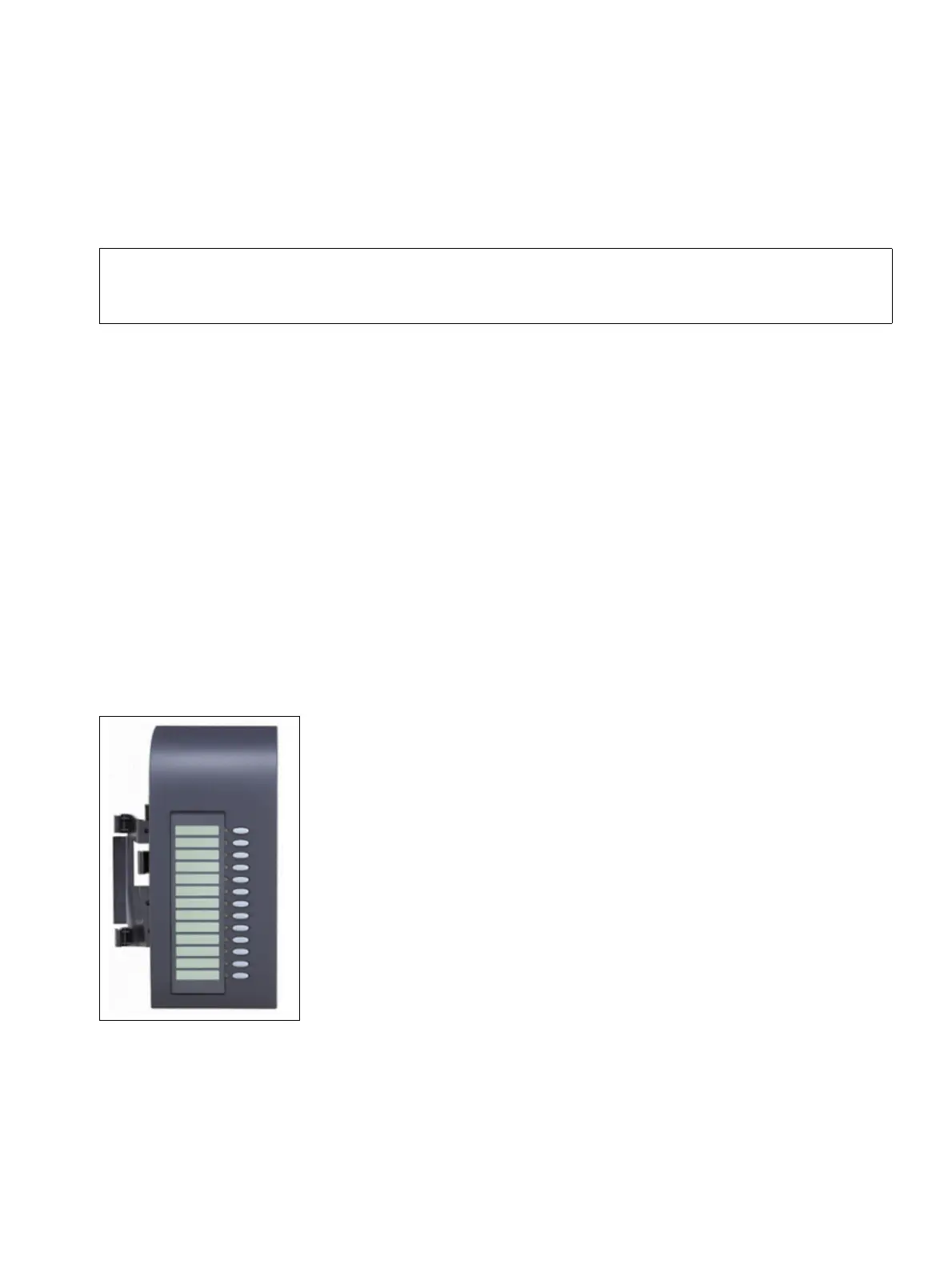

Figure 10-33 optiPoint self labeling key module
Information on double assignment can be found in Section 10.6.
NOTE
To avoid damage to property, the line cord must be disconnected before connecting the key
module to the telephone.
