Boards for HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

3-110 HiPath 3000/5000 V9, Service documentation

boards.fm

Peripheral boards

Packing protection covering

You must remove the red packing protection covering (cardboard block), shown in the following

picture, before starting up the board.

If it is necessary to transport the board again at a later time, for example, for servicing, you must

reattach the packing protection covering.

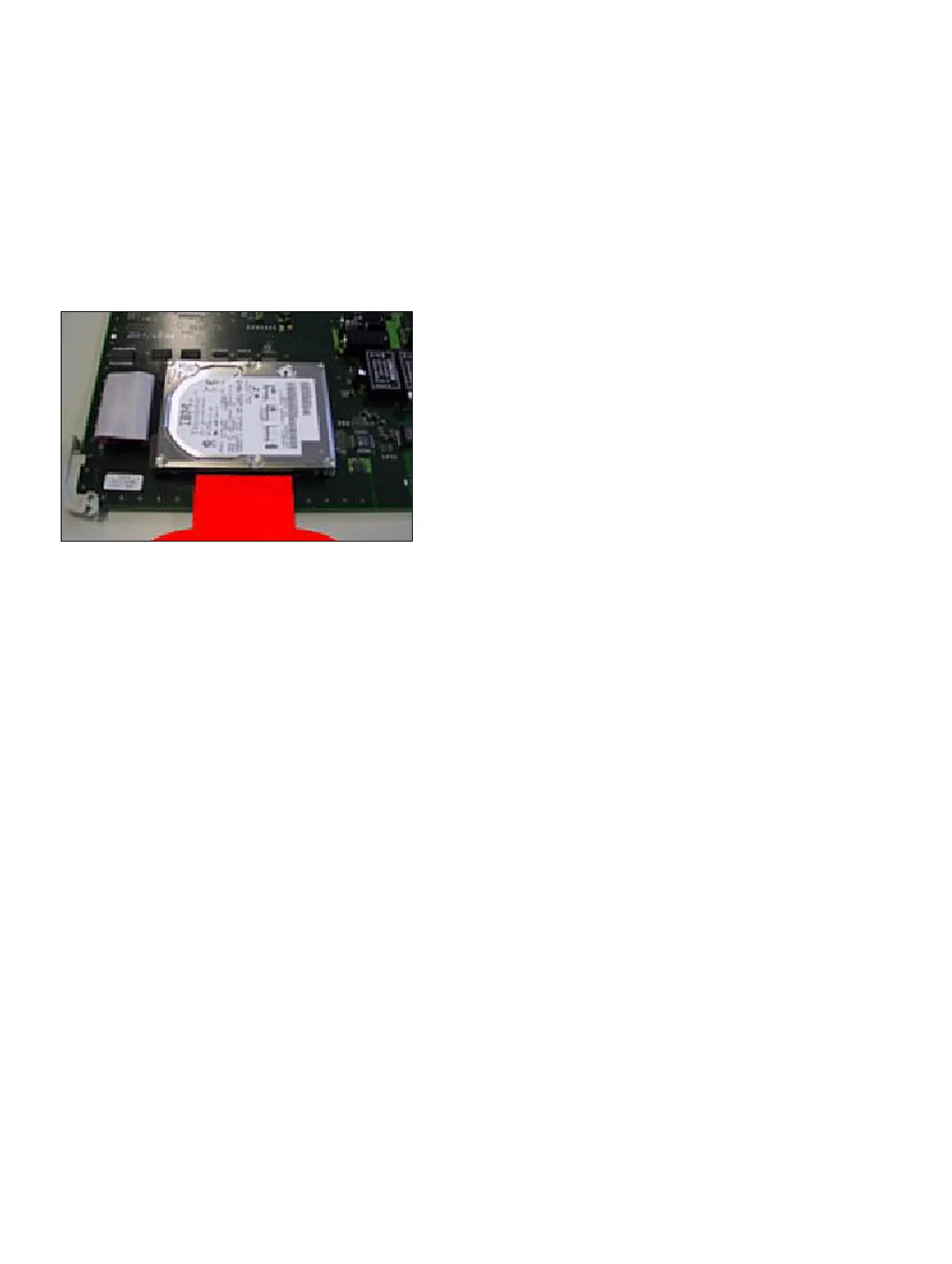

Figure 3-39 IVMP8 and IVMP8R (not for U.S.) - Packing Protection Covering
