Siemens Hipath 5000 - Page 264

Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-132 HiPath 3000/5000 V9, Service documentation
boards.fm
Peripheral boards
SLAD8R interfaces

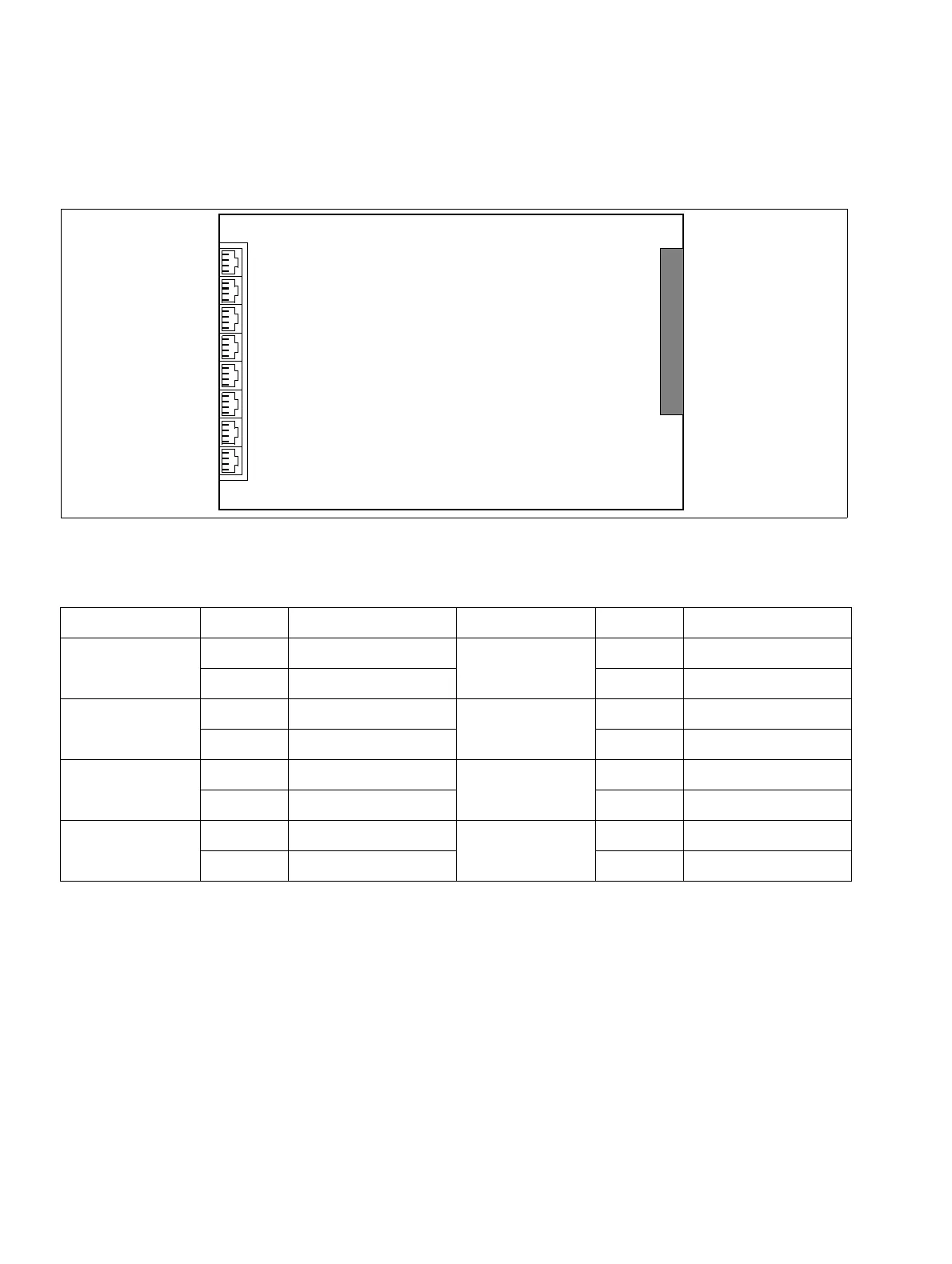

Figure 3-47 SLAD8R - interfaces
Table 3-57 SLAD8R - assigning the ports
MW8 jack X2, Pin T/R ports 1-4 MW8 jack X2, Pin T/R ports 5-8
1 14 a 1 5 54 a 5
15 b 1 55 b 5
2 24 a 2 6 64 a 6
25 b 2 65 b 6
3 34 a 3 7 74 a 7
35 b 3 75 b 7
4 44 a 4 8 84 a 8
45 b 4 85 b 8
T/R ports 1–8
(4-pin MW8 jacks
X1
50
2
to
CUPR / CUCR
Port 1
Port 8
