Boards for HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

3-190 HiPath 3000/5000 V9, Service documentation

boards.fm

Peripheral boards

Product image

Front panel

Cover

To ensure sufficient shielding, provide the board with a shielding panel. For information on

mounting the shielding panel, see Section 4.1.5.3.

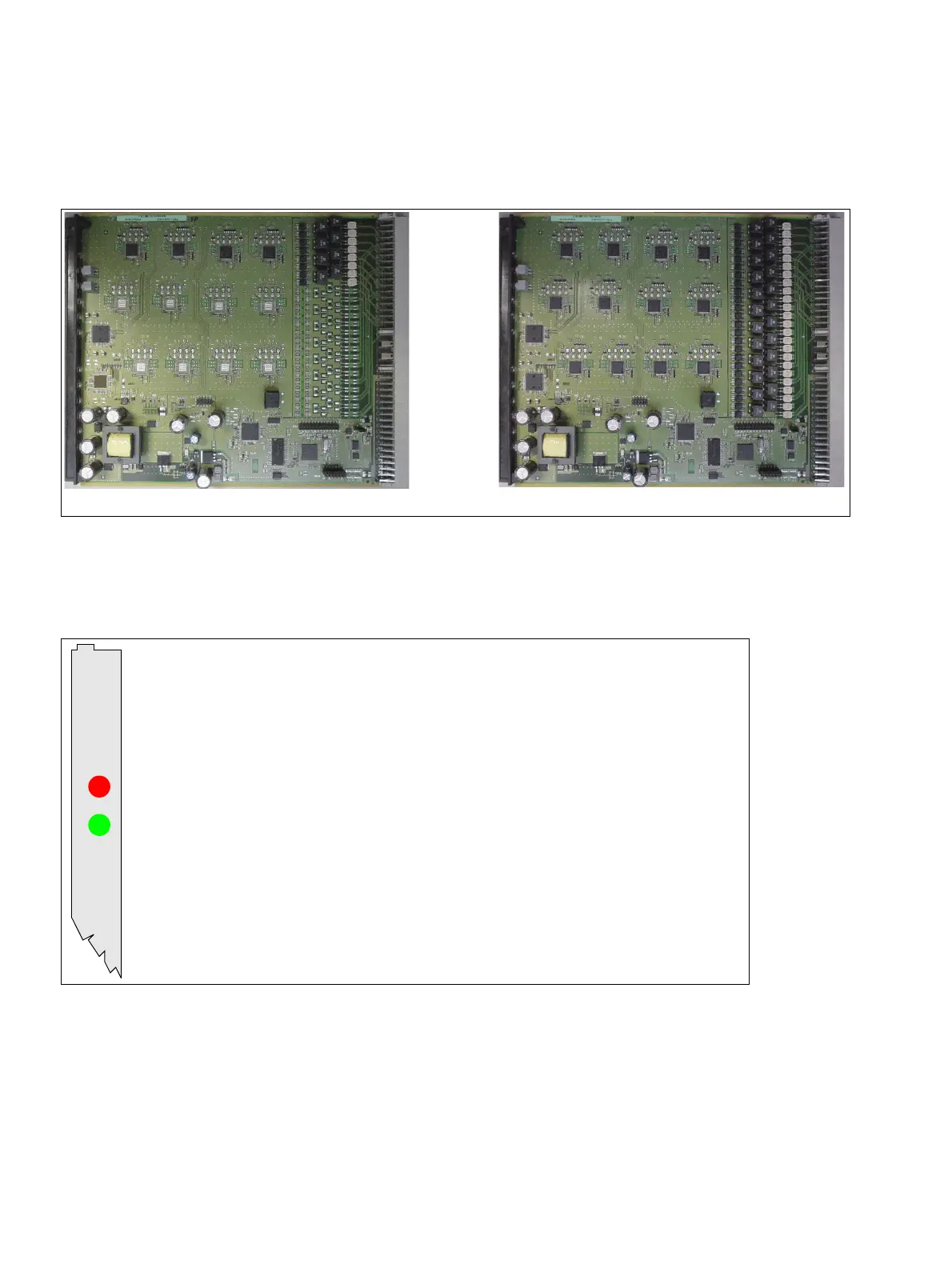

Figure 3-61 SLMAV8, SLMAV24

Figure 3-62 SLMAV8, SLMAV24 – LEDs in the front panel

SLMAV8 SLMAV24

Two LEDs indicating the board status:

● LED (red)

● LED (green)
