boards.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
3-275
Nur für den internen Gebrauch Boards for HiPath 3000
Peripheral boards
Interfaces
Jumper for setting the procedure for analog trunk interfaces
Process settings for the analog trunk interface is via X105 and X106 jumpers.
● TLANI2, TLANI4
– Loop start setting = pins 1–2 closed (default)
– Ground start setting = Pins 2 - 3 closed
● TLANI8

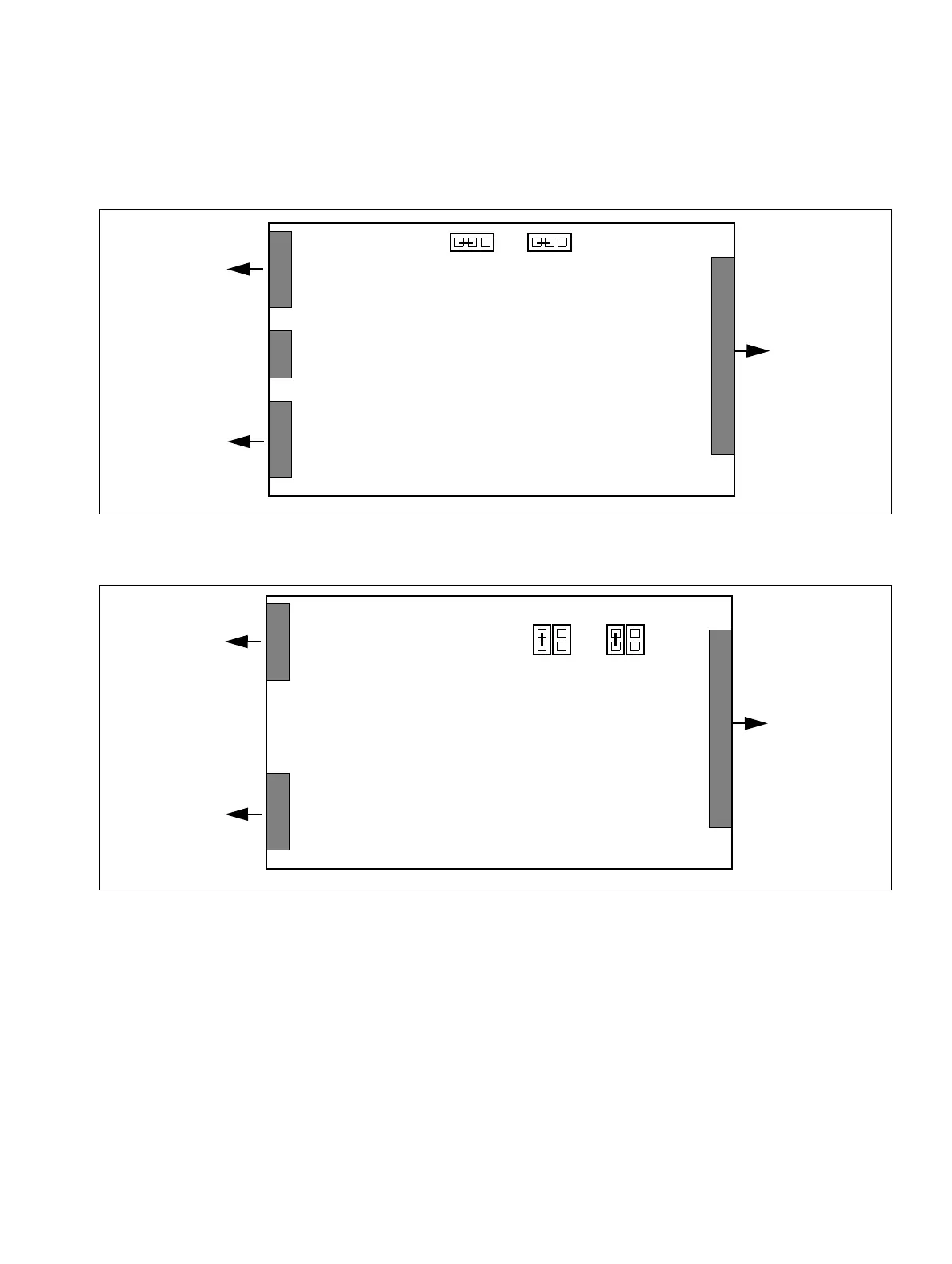

Figure 3-95 TLANI2, TLANI4 - Interfaces (S30810-H2953-X1xx / -Xxx)
Figure 3-96 TLANI8 - Interfaces (S30810-H2954-X1xx)
X1
50
2
X4
X2
1
1
8
to CUP/
CUC
T/R ports
MSI 1 - 4
(LS 3, 4 not
for TLANI2)
ALUM 1, 2
X3 (free)
Jumper
TLANI2, TLANI4
8
X106
1 2 3
X105
1 2 3
X1
50
2
X4
X2
1
1
8
to CUP/
CUC
T/R ports
MSI 1 - 4
T/R ports
MSI 5 - 8
Jumper
TLANI8
8
X106
3
4
1
2
X105
3
4
1
2
