Boards for HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

3-310 HiPath 3000/5000 V9, Service documentation

boards.fm

Peripheral boards

● CAS application software states

Modem (optional)

The analog modem (S30122-X8004-X22) is an optional subboard for the TMCAS-2 card, which

is plugged into the X20 and X21 ports. This facilitates remote administration of the CAS proto-

col converter on the TMCAS-2 card (see Page 3-311).

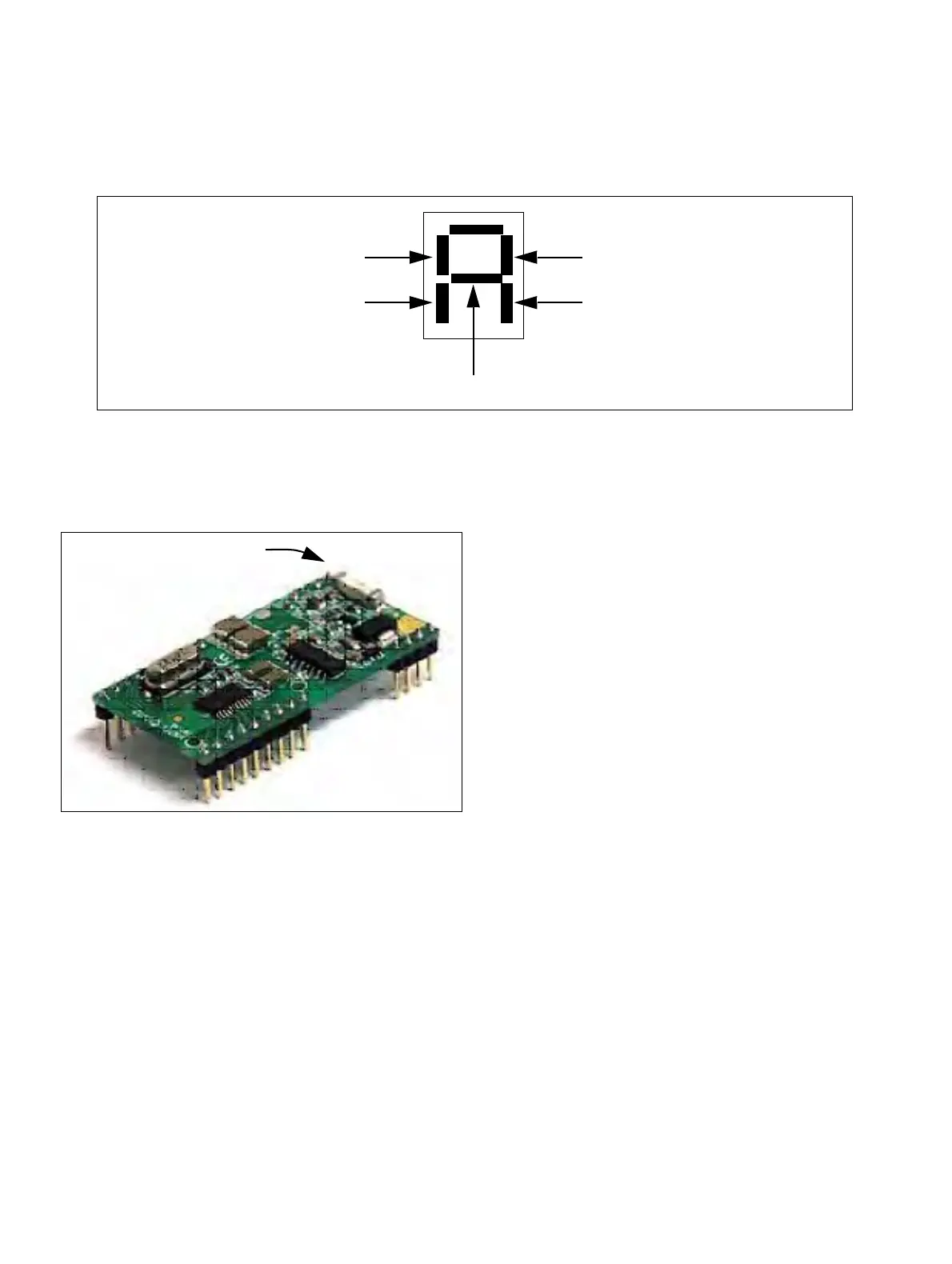

Figure 3-104 TMCAS-2 (for selected countries only) – CAS Application Software States

Figure 3-105 TMCAS-2 (for selected countries only) – Optional Modem

Interface 1 (ISDN) active

Interface 2 (ISDN) active

Interface 1 (CAS) active

Interface 2 (CAS) active

CAS application operational (flashing display)

X21: Pin1
