Installing HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

4-60 HiPath 3000/5000 V9, Service documentation

inst_h3.fm

Installing HiPath 3800

Closing the backplane of the system cabinets

After the cable has been connected, the backplane of the basic cabinet and that of

the expansion cabinet (if applicable) must be closed with the dummy panels provid-

ed (C39165-A7075-C44).

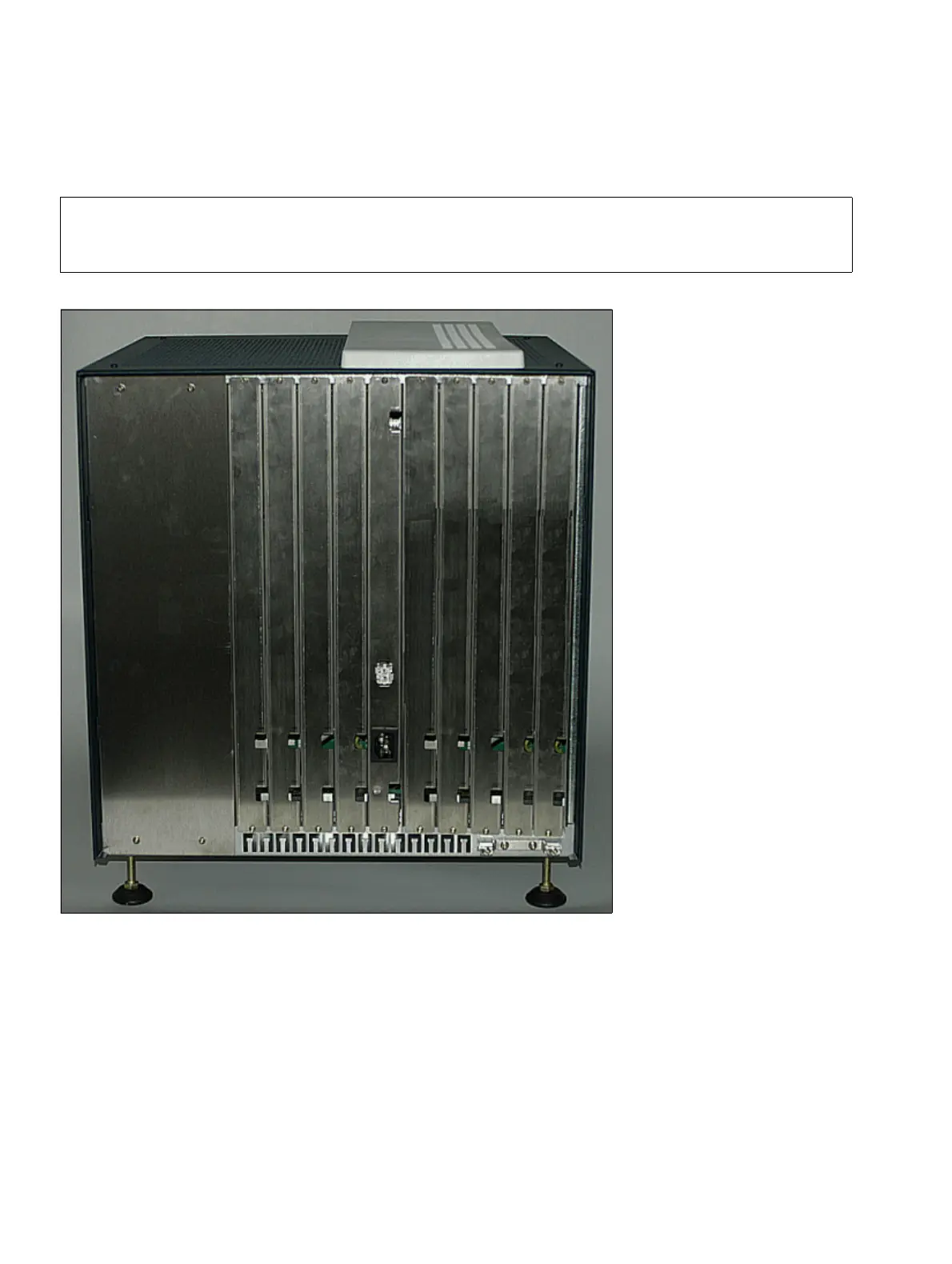

Figure 4-32 HiPath 3800 - Backplane of the Basic Cabinet with Mounted Filler Panels
