Nur für den internen Gebrauch Installing HiPath 3000
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
6. Release the backplane from the rear of the HiPath system:

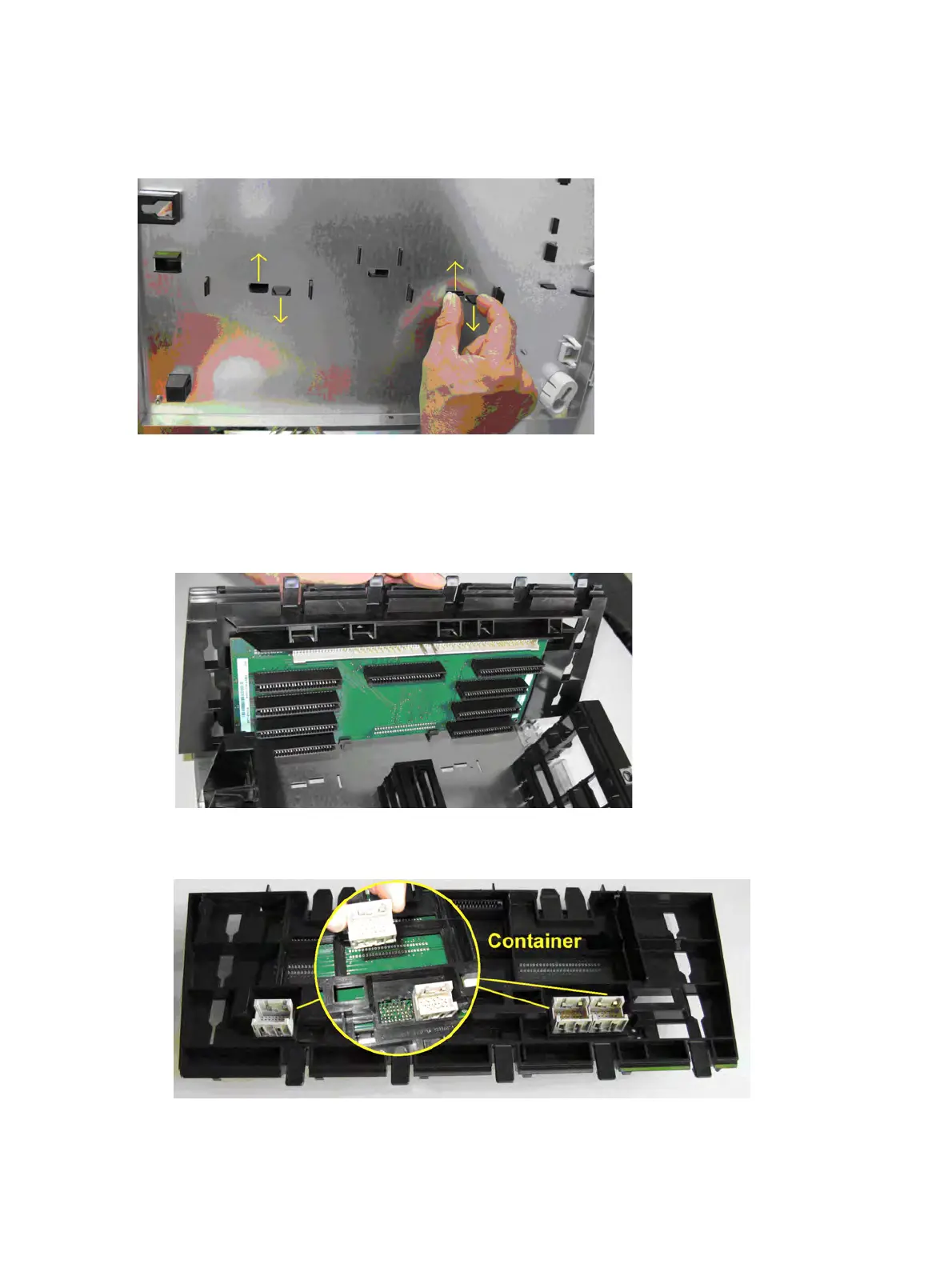

Figure 4-72 Releasing the backplane
7. Remove the backplane from the HiPath system:
a) To remove the backplane, pull it upwards and then press it back in the direction where
there the power supply was:
b) Remove the container of the HVT connection cable from the back of the backplane (Hi-
Path 3550 only):
