start_h5.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

6-27

Nur für den internen Gebrauch Startup and Administration HiPath 5000

Starting HiPath 5000

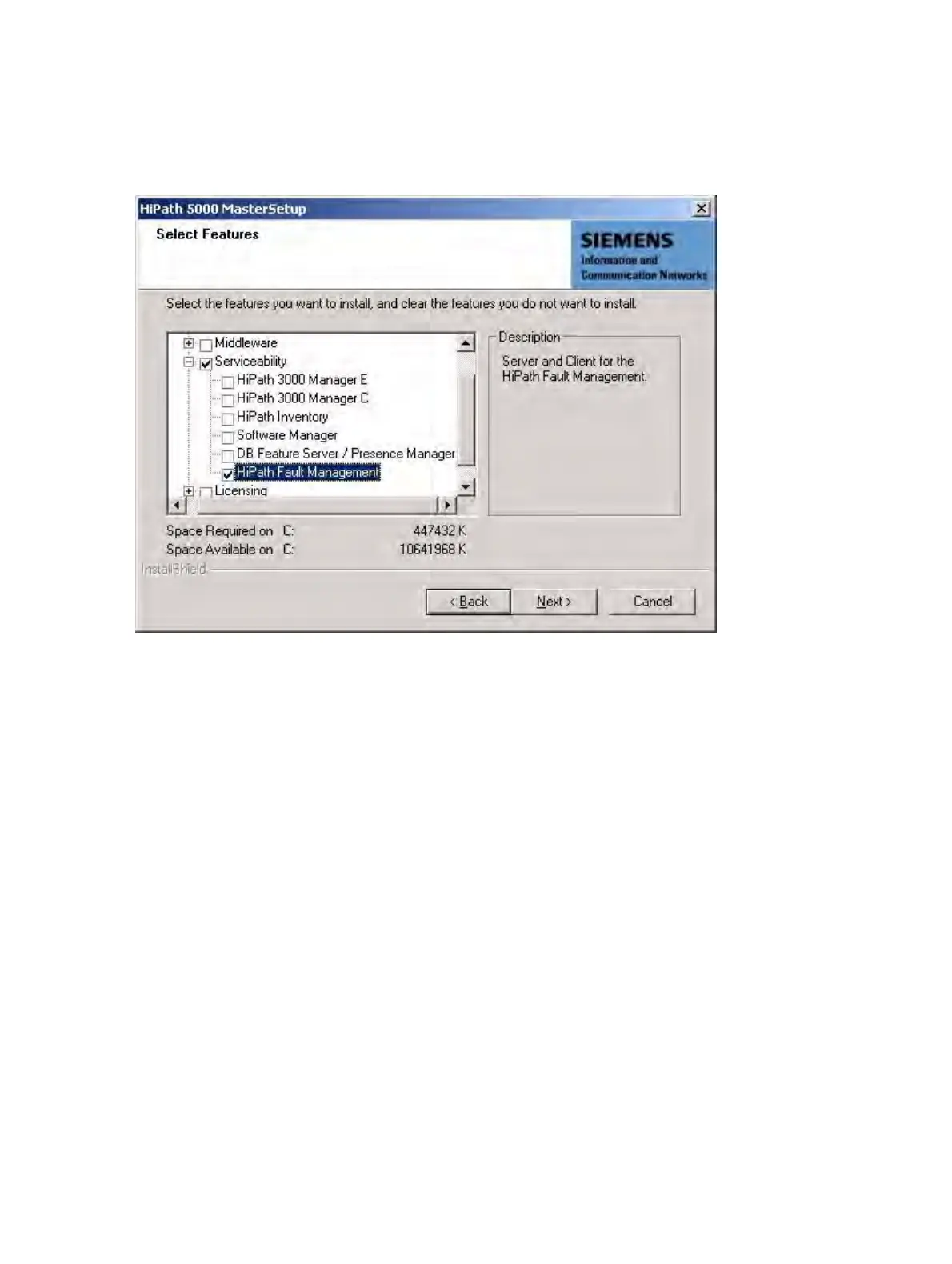

7. The Select Features dialog appears.

Select the HiPath Fault Management components you want to install and deselect the ones

you do not want to install.
