Workpoint Clients Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

10-26 HiPath 3000/5000 V9, Service documentation

wclient.fm

OpenStage Product Family

OpenStage 30 T, OpenStage 40 T

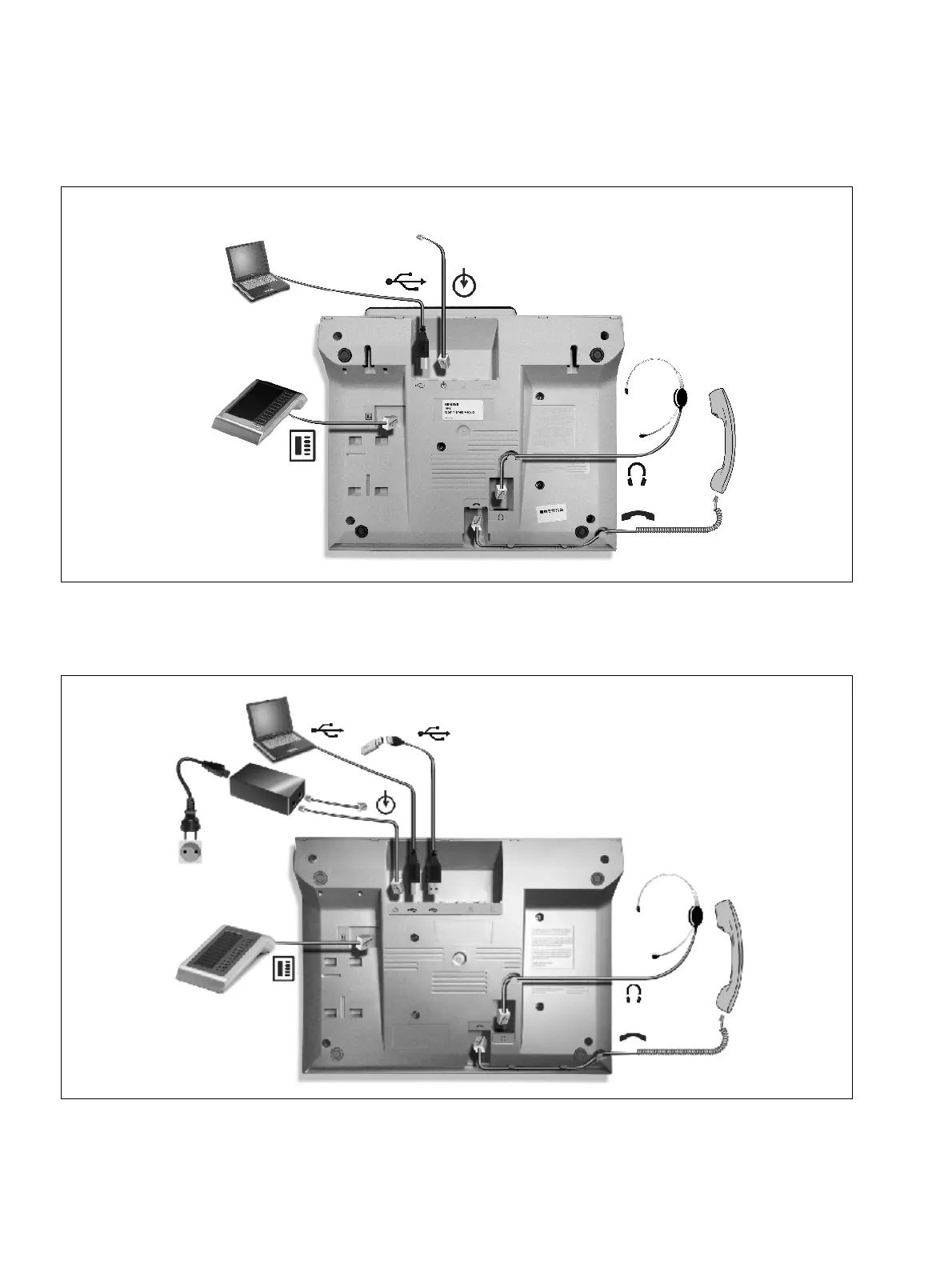

Figure 10-13 OpenStage 30 T, OpenStage 40 T - Underside of the Telephone

OpenStage 60 T, OpenStage 80 T

Figure 10-14 OpenStage 60 T, OpenStage 80 T - Underside of the Telephone
