OpenStage Product Family
OpenStage terminals with the CorNet-IP connection variant
OpenStage terminals with TDM connection variant

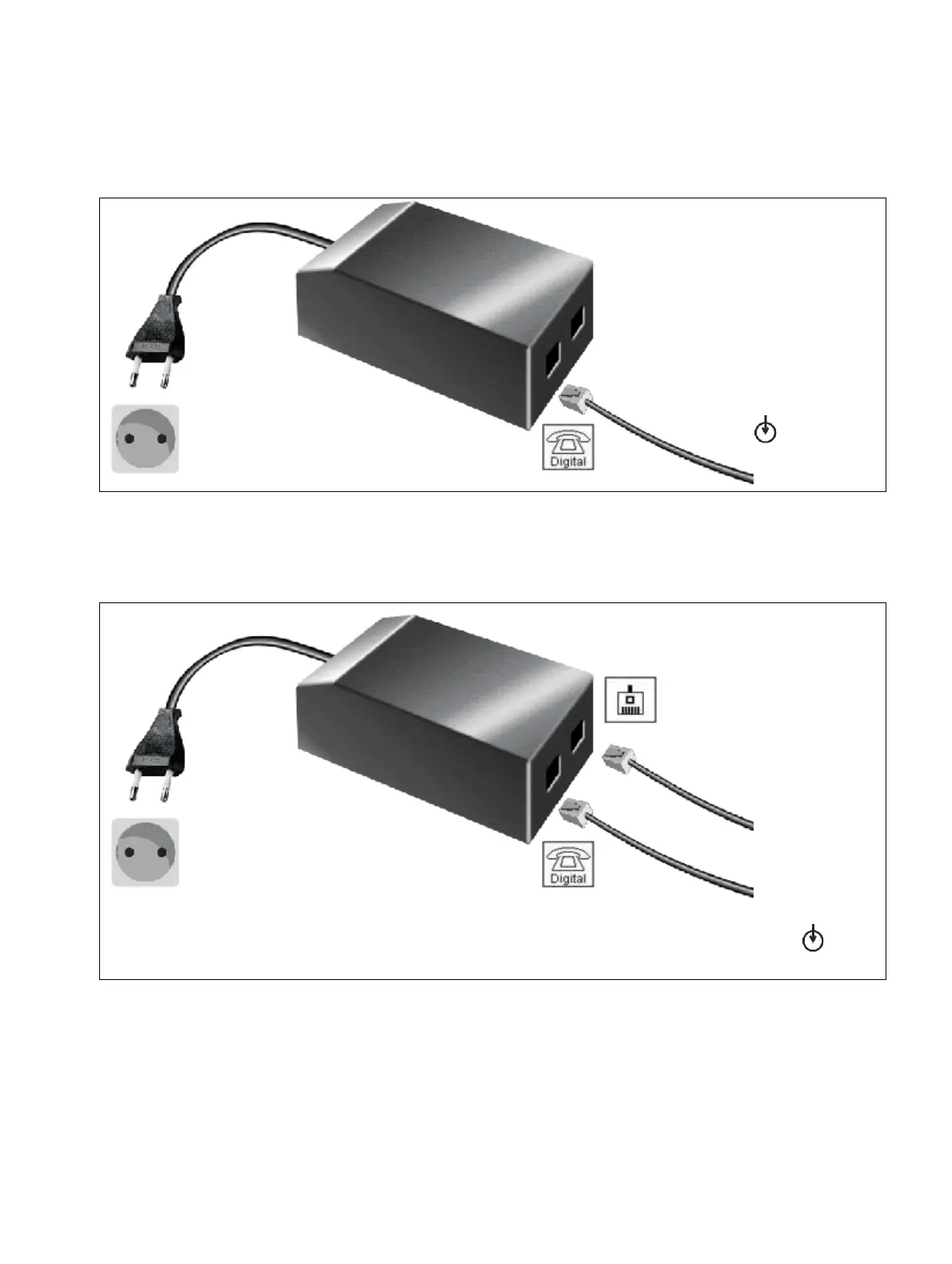

Figure 10-18 OpenStage (CorNet-IP) – Connection of the External Power Supply Unit
Figure 10-19 OpenStage (TDM) – Connection of the External Power Supply Unit
to the OpenStage ter-
minal: Connector
socket
to the OpenStage terminal:
Connector socket
to the HiPath 3000
system
