cordless.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
11-5
Nur für den internen Gebrauch HiPath Cordless Office
Technical Data for Base Stations
Outdoor cover
A base station must be installed in a weatherproof outdoor cover to guarantee radio coverage
outdoors, for example on factory premises. The outdoor cover is suitable for mounting on walls
of buildings, roofs, and masts.
The outdoor cover S30122-X7469-X is used for BS3/1 (BS3/S), BS3/3, and BS4. A heater is
not required.
For information on the various outdoor cover mounting options, refer to the HiPath Cordless Of-
fice Service Manual.

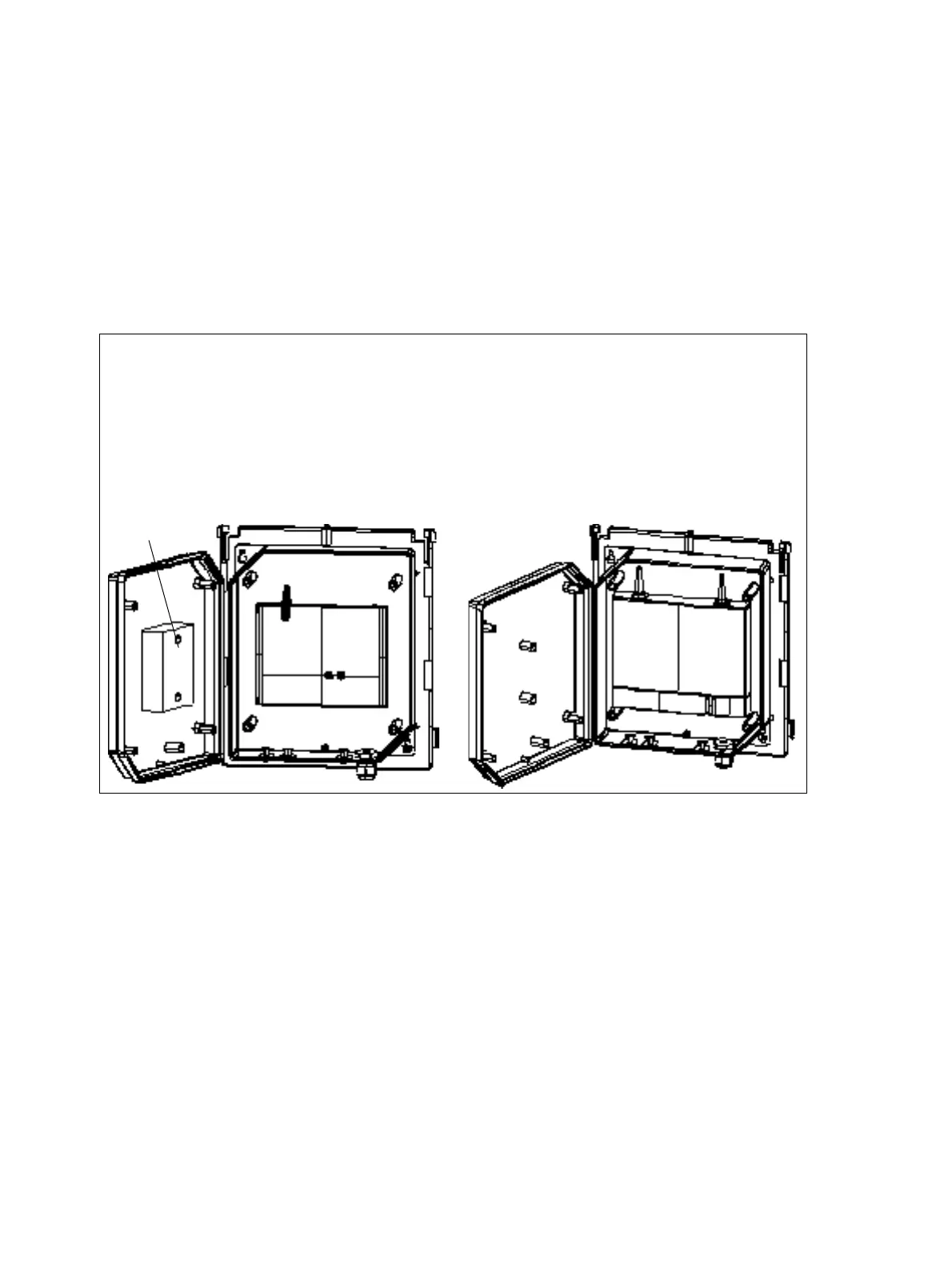

Figure 11-2 BS3/1 (BS3/S) and BS3/3 in the Outdoor Cover S30122-X7469-X
Outdoor cover
with BS3/1 (BS3/S)
The Styrofoam block [1] supplied
should be used to affix the BS3/1
(BS3/S).
Outdoor cover
with BS3/3
[1]
