6.12 System settings for power-up, RESET and starting part programs
6-156
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
S after RESET/end of part program
MD 20110: RESET_MODE_MASK, Bit 4–10 = 0 or 1
Bits 4 – 10 may be combined as required.
RESET/
End of part program
MD 20110
RESET_MODE_MASK
Bit 0
Bit 0=0
Bit 0=1
The current settings are
retained. The next time a part program is
started, the following basic setting takes
effect:
– G codes as per MD 20150: GCODE_
RESET_VALUES
– Tool length correction not active
– Transformation not active
– No coupled units active
– No tangential adjustment active
Depending on the setting, bits 4 to 10 affect:
– current level
– current variable frame
– active tool offset
– active transformation
– coupled units
– tangential adjustment
– non-configured synchronous spindle coupling
If synchronous spindle coupling is configured, the coupling is
set in relation to MD 21330: COUPLE_RESET_MODE_1.

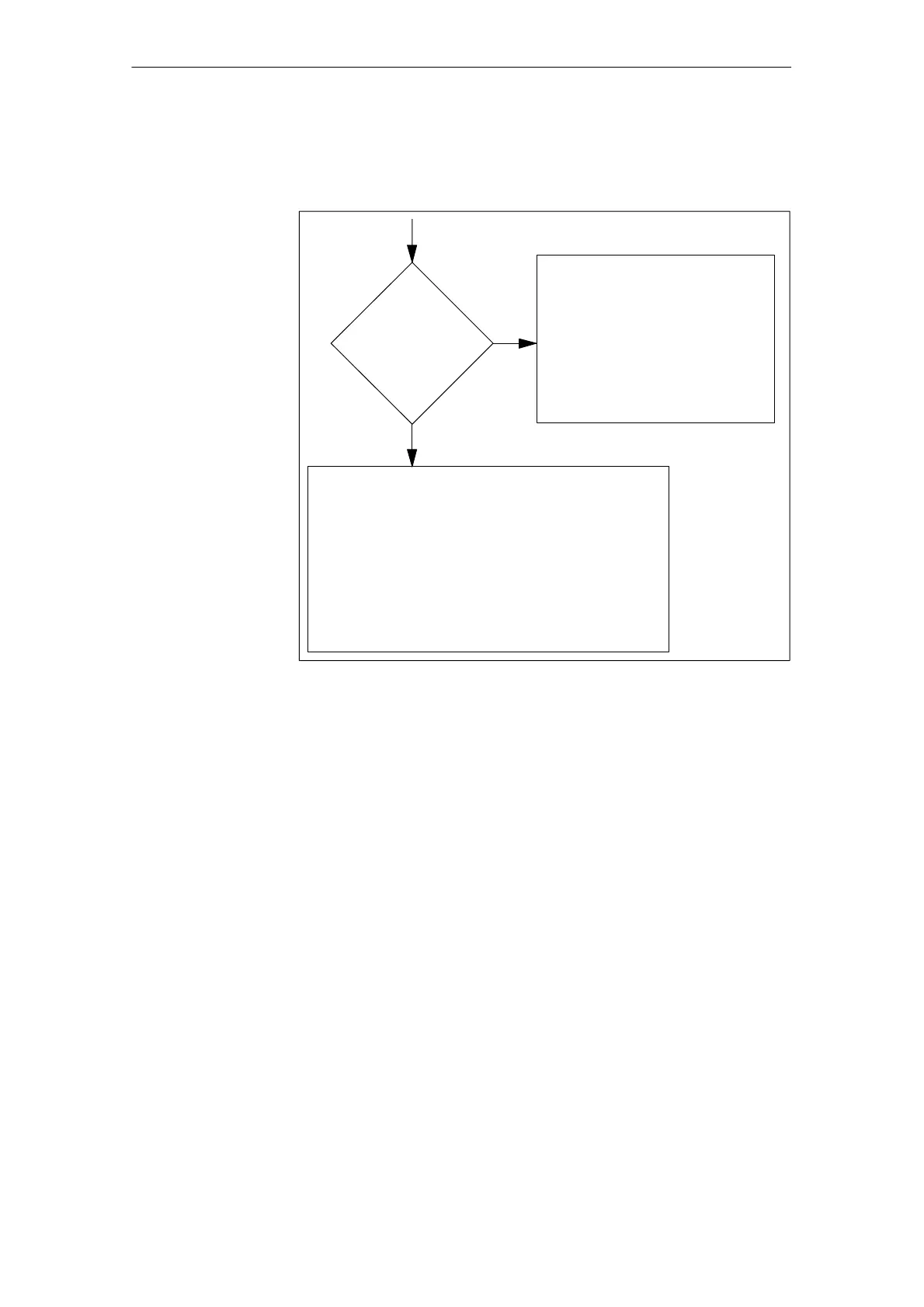

Fig. 6-47 System settings after RESET/end of part program
