10.7 Trace function
10-209
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
The soft key can be accessed from Fig. 10-14. This gives the following screen:

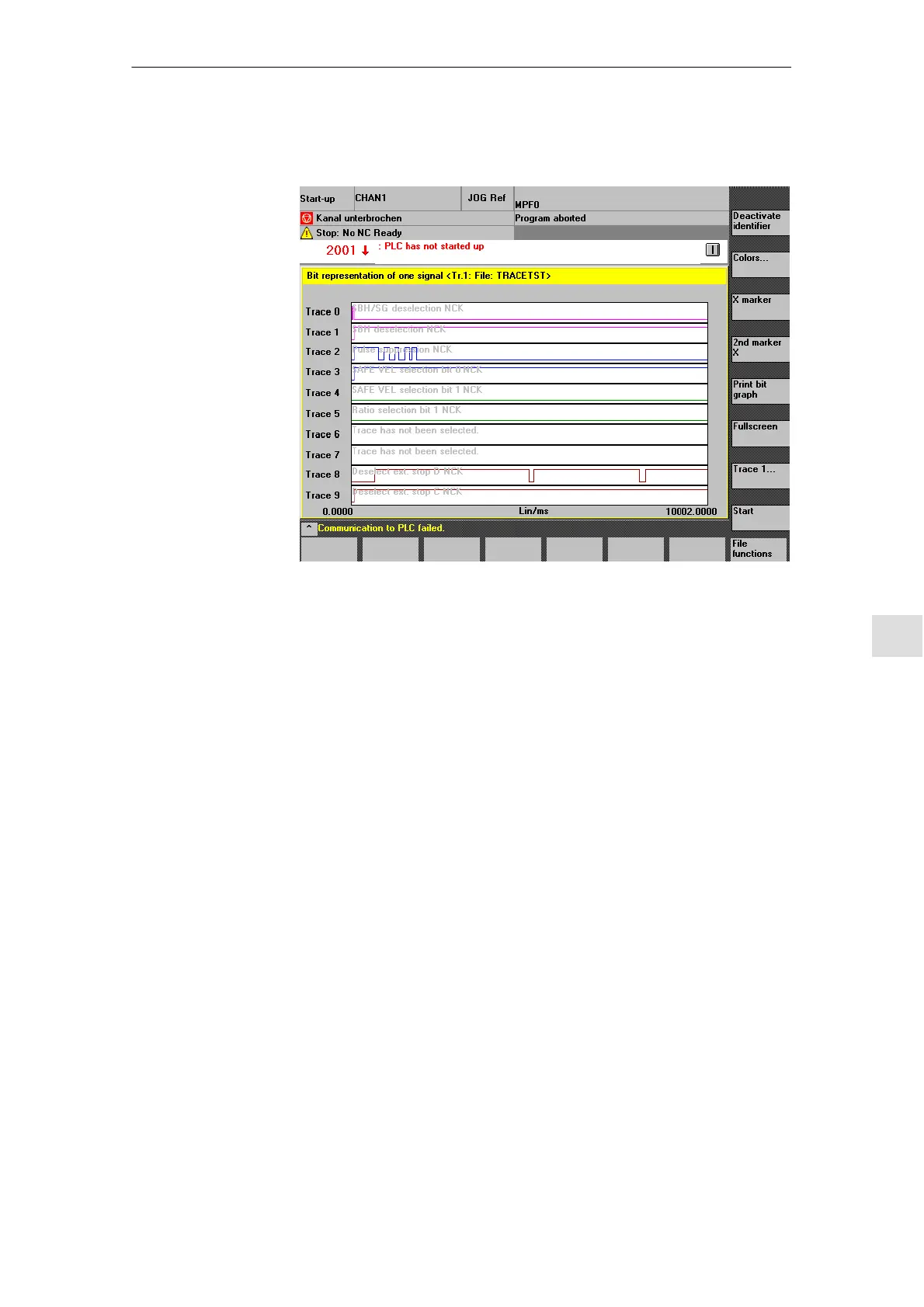

Fig. 10-17 Bit graph – example of trace 1
The signals from up to 10 tracks are represented over the duration of the mea-
suring interval. Vertical soft keys can be used to change the view as required or
to print out the bit graph.
Shows/hides the signal identifiers overlaid over the signal curve. The function is
also available in the extended view. See the “Zoom X” soft key.
Opens a submenu from which you can select:
S User
S VGA
S VGA positive
S Monochrome
S Monochrome positive
under “Color scheme”, The color palette corresponding to your selection is dis-
played. You can then select different colors for each track.
There is a common color available for all signal identifiers.
Procedure:
1. Use Cursor Up/Down Track/Word select “Identifier”, palette receives focus
2. Use Cursor Up/Down/Right/Left select color
3. Select Input/Return to accept.
Display
bit graph ...
soft key
Hide
identifiers
soft key
Colors soft key
