12.4 Standard system start-up via NC card
12-273
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
Expert mode
In Expert mode, and FFS image is generated in the PC memory. This can be
written to the inserted NC card or saved as a file.
Normal mode
In Normal mode, every action (read/write/delete) is carried out directly on the
NC card.
Independently of the FFS, the NC system can be
S re-written (Requirement: the space above the FFS start address is not used
by the NC system).
S duplicated
S output and saved as a file.
S NC cards can be duplicated fully (NC + FFS).
It is possible to display the version of the NC system of the inserted card.
The storage capacity of the inserted NC card is determined automatically and
displayed. Similarly, the limit memory addresses for the FFS.
The functions of the program can be called via the menu bar or directly by pres-
sing buttons on the user interface. Help is available for all actions and can be
accessed with the “Help” menu.

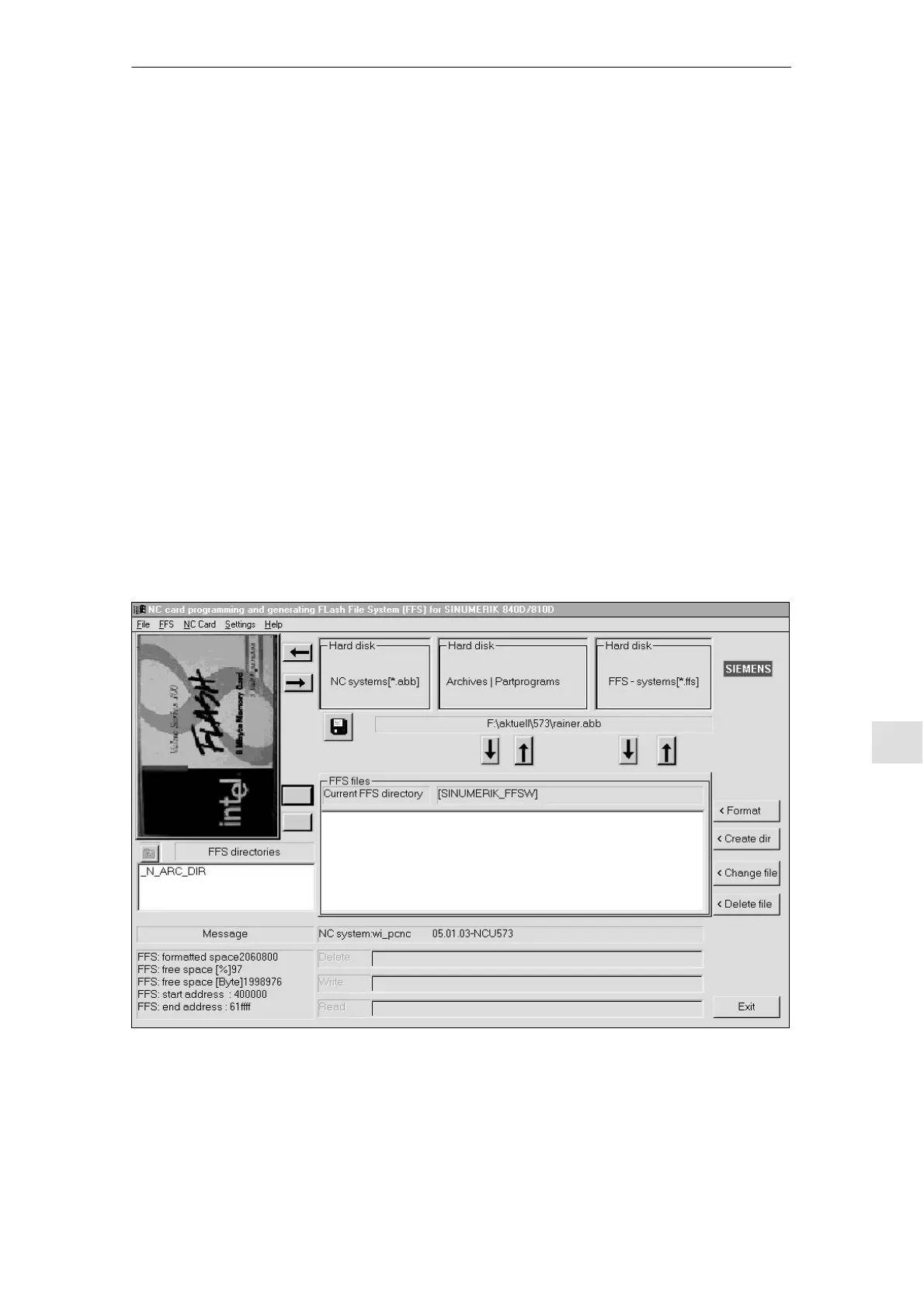

Fig. 12-1 SINUCOPY-FFS operator interface
