[logikdia-ueberstromstufen-i-fuer-phasenstrom-121102-st, 1, en_GB]

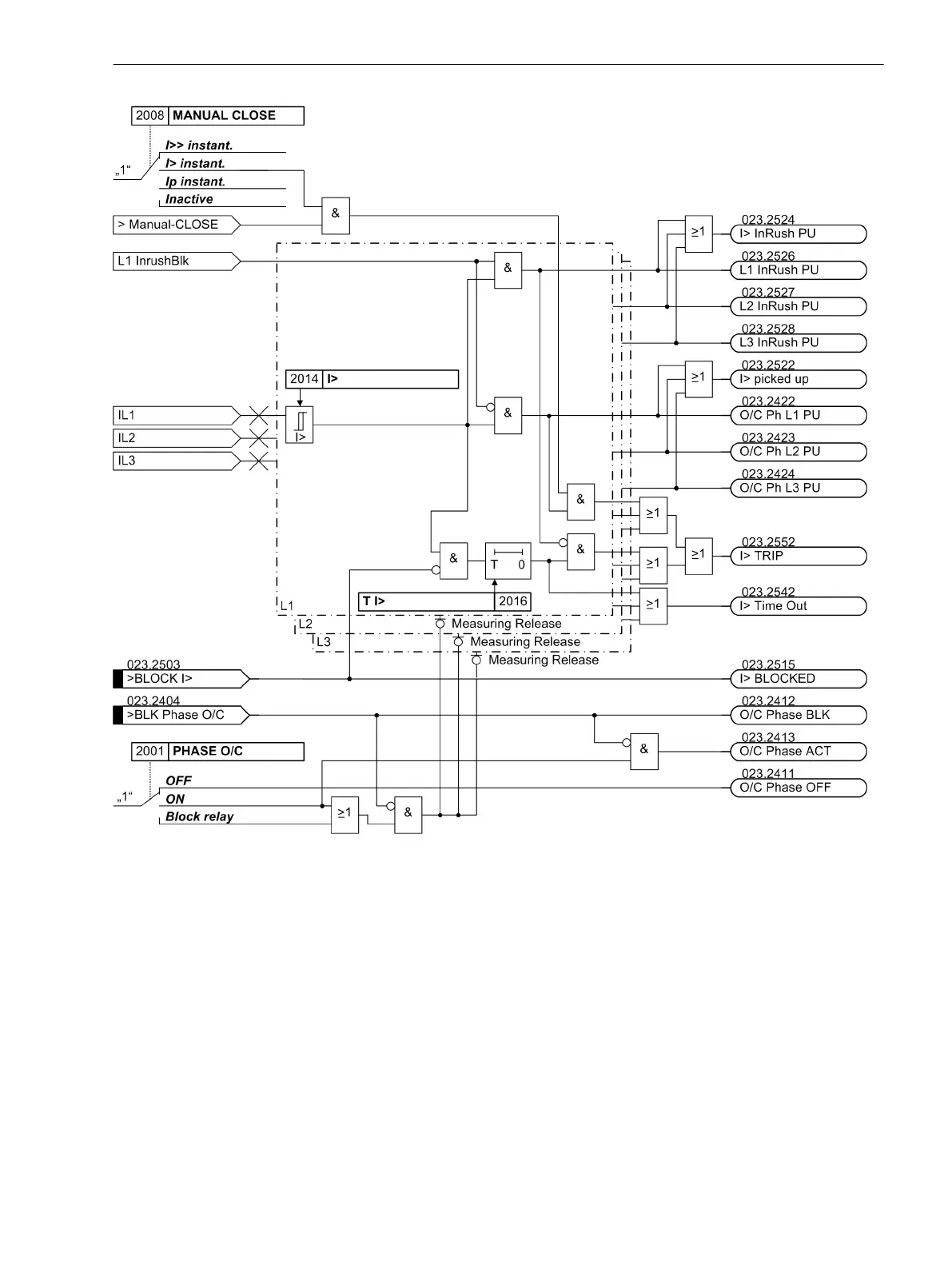

Figure 2-69
Logic diagram of the overcurrent stage I> for phase currents (simplified)
Functions
2.4 Time Overcurrent Protection for Phase and Residual Currents
SIPROTEC 4, 7UT6x, Manual 139
C53000-G1176-C230-5, Edition 09.2016
