[frontansicht-7ut63-geh-ein-o-frontkappe-040303-st, 1, en_GB]

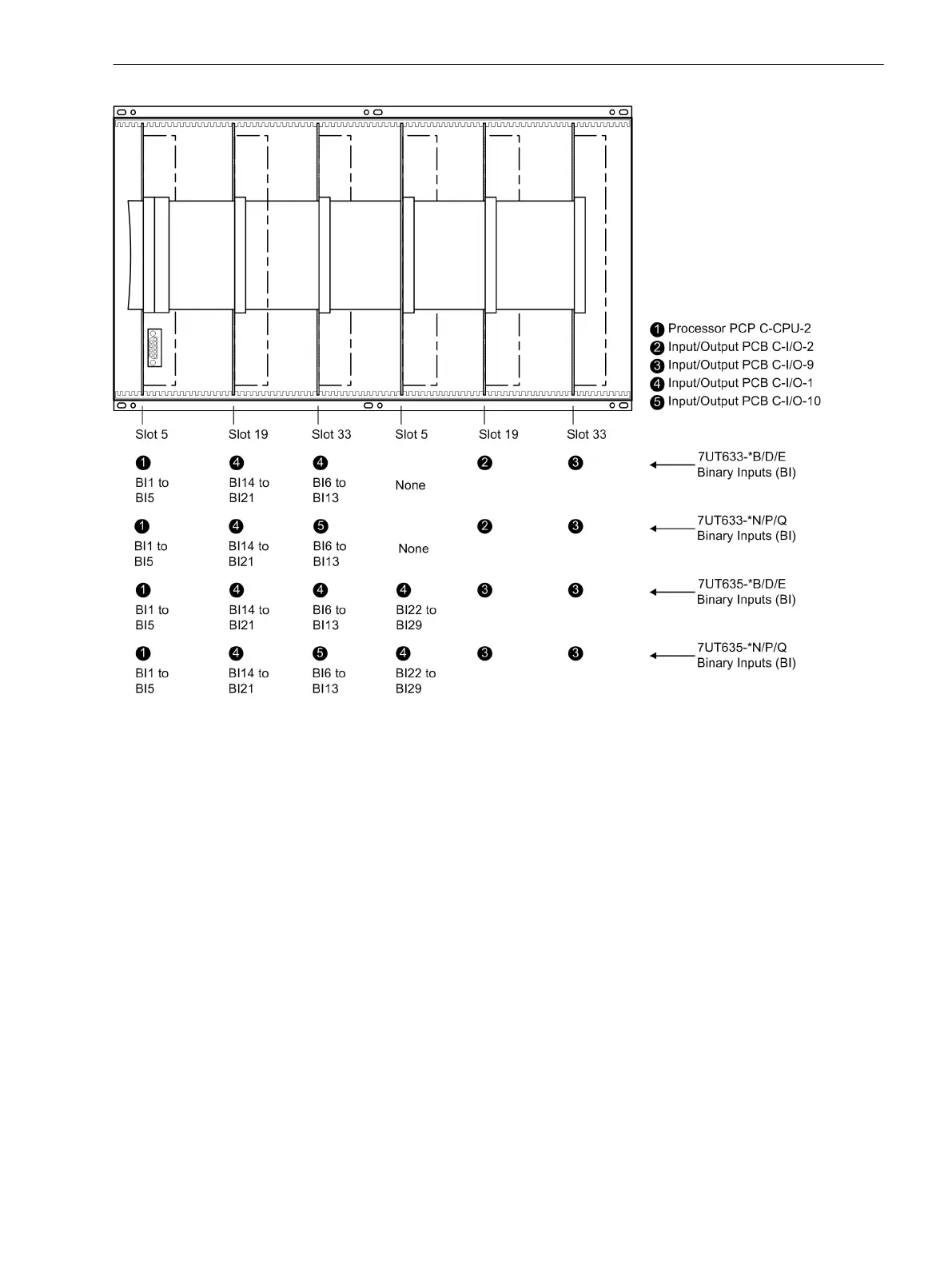

Figure 3-5
Front view with housing size
1
/
1
after removal of the front panel (simplified and scaled down)
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7UT6x, Manual 319
C53000-G1176-C230-5, Edition 09.2016
