Board Arrangement 7UT613/63x
[frontansicht-7ut613-geh-halb-o-frontkappe-040303-st, 1, en_GB]

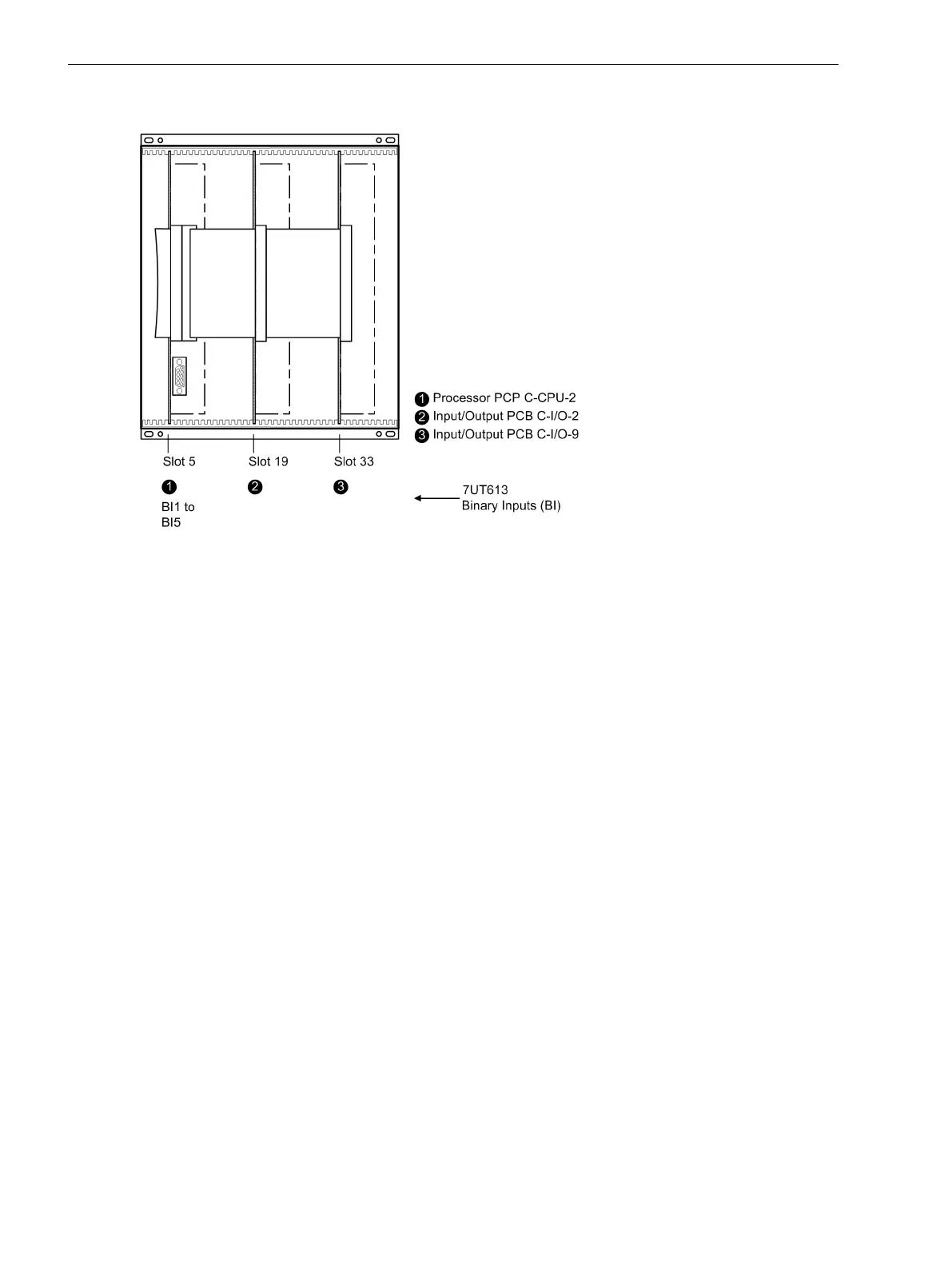

Figure 3-4
Front view with housing size
1
/
2
after removal of the front panel (simplified and scaled down)
Mounting and Commissioning
3.1 Mounting and Connections
318 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
