Input/Output Board C-I/O-9 (all versions 7UT613/63x)
The input/output board C-I/O-9 is used in the versions 7UT613, 7UT633 and 7UT635. Mounting location: for
7UT613 slot 33, for 7UT633 and 7UT635 slot 33 right side
[ein-ausgabebgr-c-io-9-einbauplatz-33-040403-st, 1, en_GB]

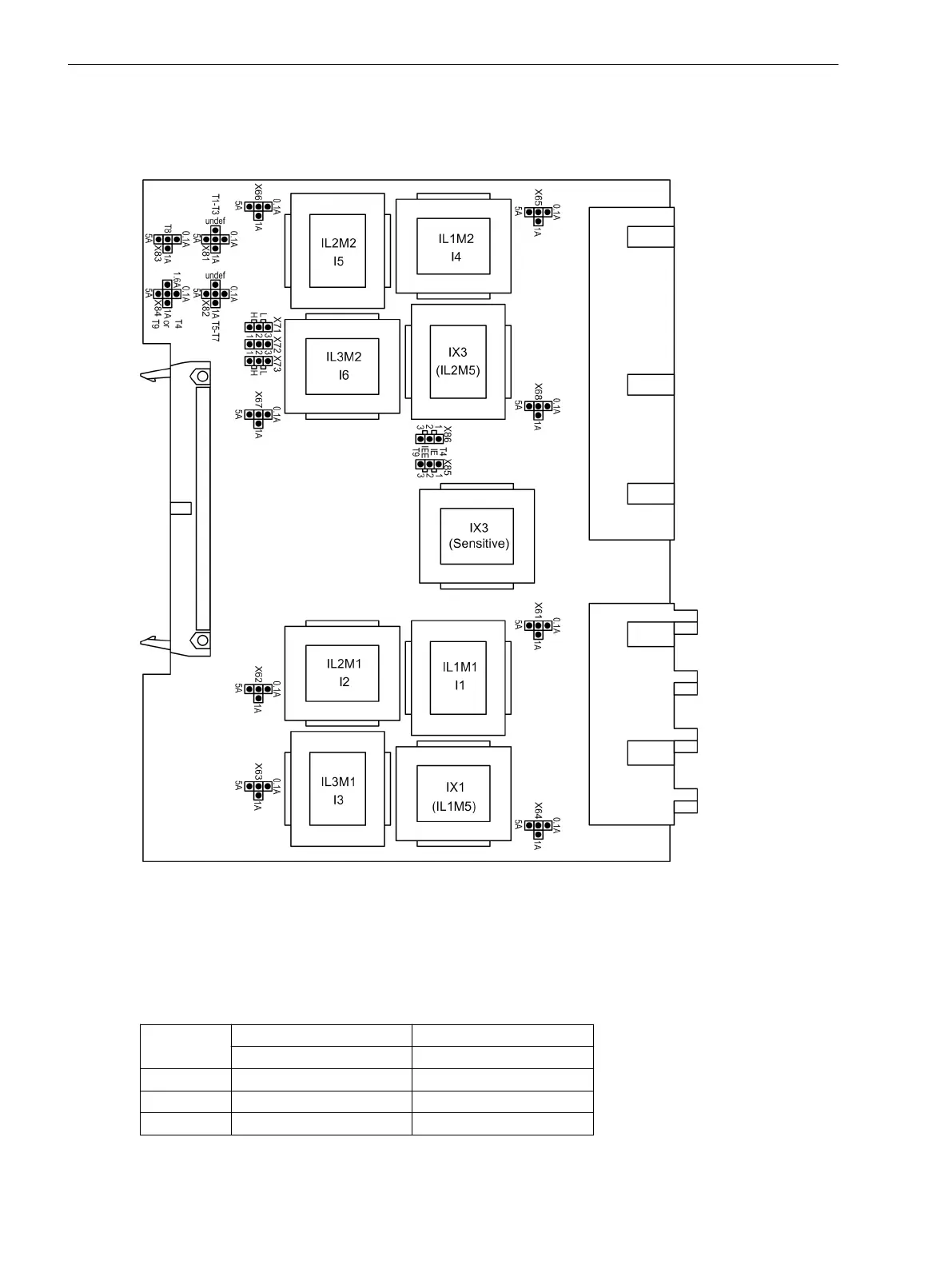

Figure 3-12
Input/output boards with representation of the jumpers required for checking the settings
Jumpers X71 through X73 serve for module identification and must not be changed. The following table
shows the preset jumper positions.
Table 3-19
Jumper settings of the Module addresses of input/output boards C-I/O-9; slot 33 in 7UT613 or
slot 33 right in 7UT633 and 7UT635
Jumper 7UT613 7UT633 and 7UT635
Platz 33 Slot 33 right
X71 2-3 (L) 2-3 (L)
X72 1-2 (H) 1-2 (H)
X73 2-3 (L) 2-3 (L)
Mounting and Commissioning
3.1 Mounting and Connections
332 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
