Exchanging interface modules (7UT613/63x)
The interface modules are dependent on the variant ordered. They are located on the processor board C-
CPU-2.

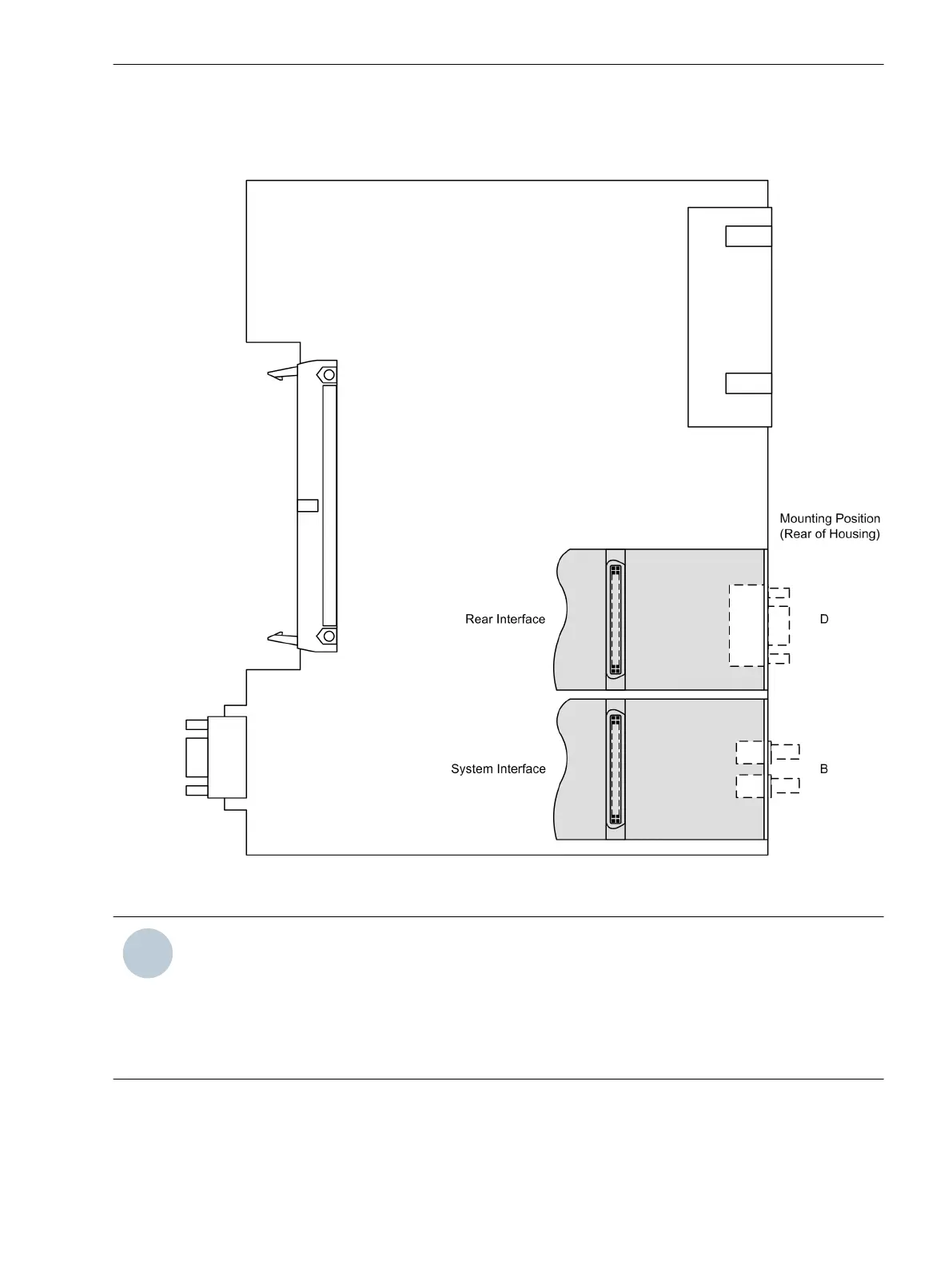

[prozessorbgr-c-cpu-2-mit-schnittstelle-040403-st, 1, en_GB]
Figure 3-15
C-CPU-2 board with interface modules
NOTE
Please note the following: Only interface modules of devices with flush mounting housing can be replaced.
Interface modules of devices with surface mounting housing must be replaced in our manufacturing
centre.
Use only interface modules that can be ordered as an option of the device (see also Appendix A Ordering
Information and Accessories).
Termination of the serial interfaces in case of RS485 must be ensured.
