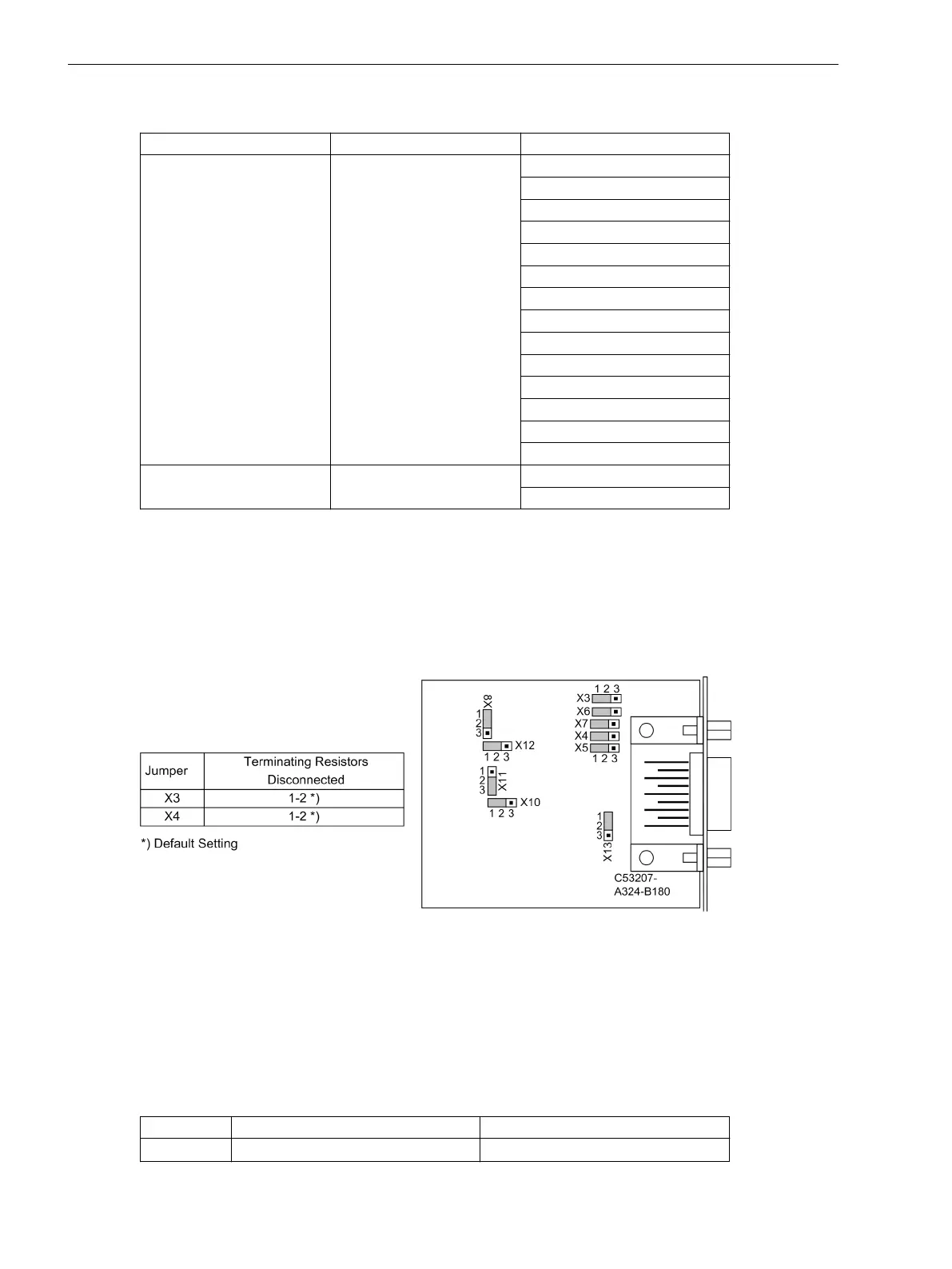

Table 3-24 Exchange Interface Modules
Interface Mounting location/Port Exchange module
System Interface B
RS232
RS485
LWL 820 nm
PROFIBUS FMS RS485
PROFIBUS FMS double ring
PROFIBUS FMS Einfachring
PROFIBUS DP RS485
PROFIBUS DP double ring
Modbus RS485
Modbus 820 nm
DNP 3.0 RS485
DNP 3.0 820 nm
Ethernet double electrical
Ethernet optical
Additional Interface D
LWL 820 nm
RS485
The ordering number of the replacement modules are listed in the Appendix A Ordering Information and
Accessories.
RS232 Interface
The RS232 interface can be transformed into a RS485 interface and vice versa, according to Figure 3-17.
Figure 3-15 shows the PCB C-CPU-2 with the layout of the boards.
Figure 3-16 shows how jumpers of interface RS232 are located on the interface module.
[steckbruecken-rs232-020313-kn, 1, en_GB]
Figure 3-16 Location of the jumpers for configuration of RS232
Terminating resistors are not required. They are disconnected.
Please observe that in surface-mounted devices with fibre optics connection the CPU module is equipped with
an RS232 interface module. In this application, the jumpers X12 and X13 on the RS232 module are set to posi-
tion 2-3, unlike the arrangement shown in Figure 3-16.
Jumper X11 is used to activate the flow control which is important for the modem communication.
Table 3-25
Jumper setting for CTS (Clear To Send; flow control) on the interface module
Jumper /CTS from Interface RS232 /CTS controlled by /RTS
X11 1-2
2-3
1)
Mounting and Commissioning
3.1 Mounting and Connections
340 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
