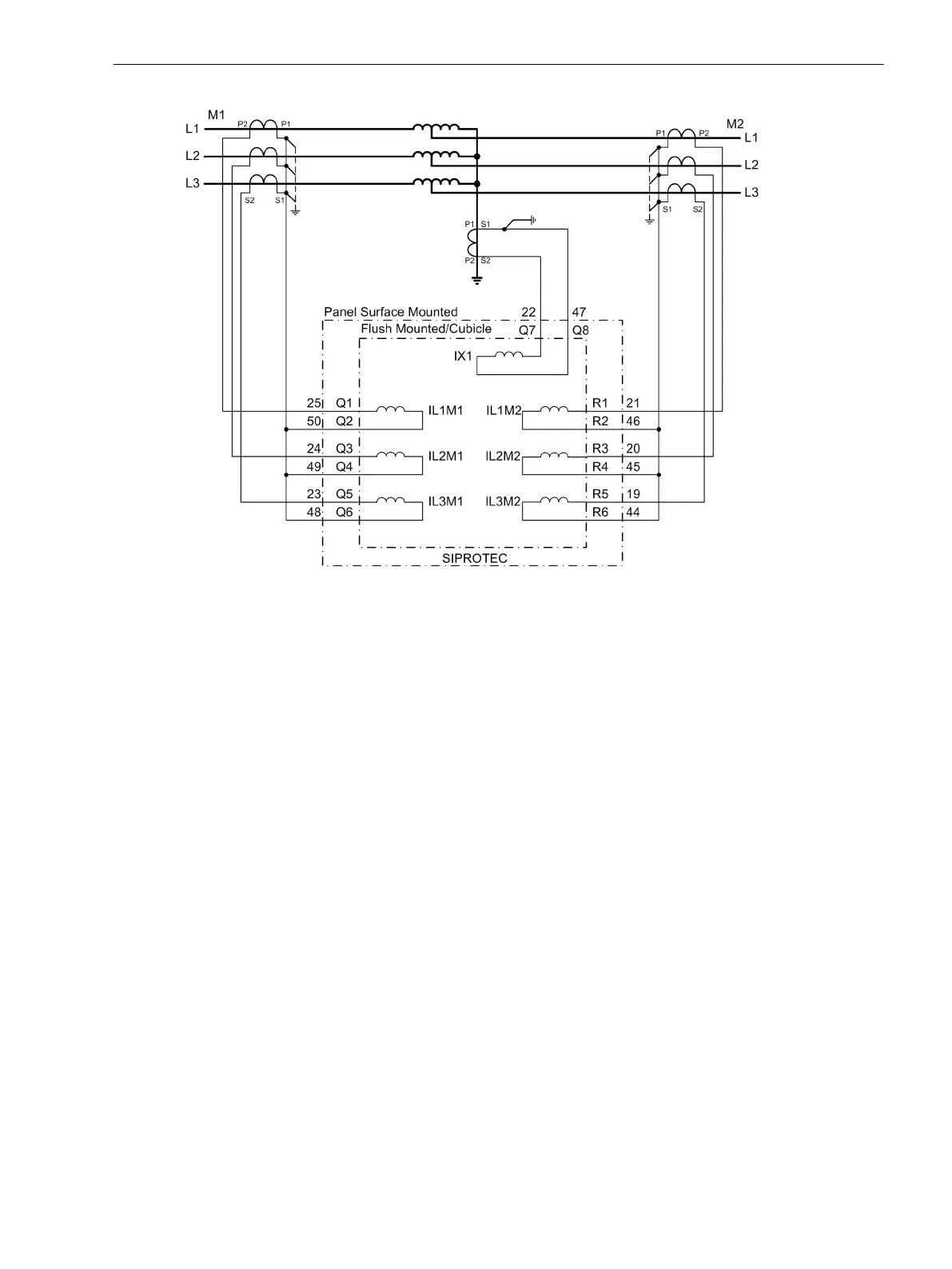

Figure C-5
Connection example 7UT613 for an earthed auto-transformer with current transformer
between starpoint and earthing point
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 509
C53000-G1176-C230-5, Edition 09.2016
