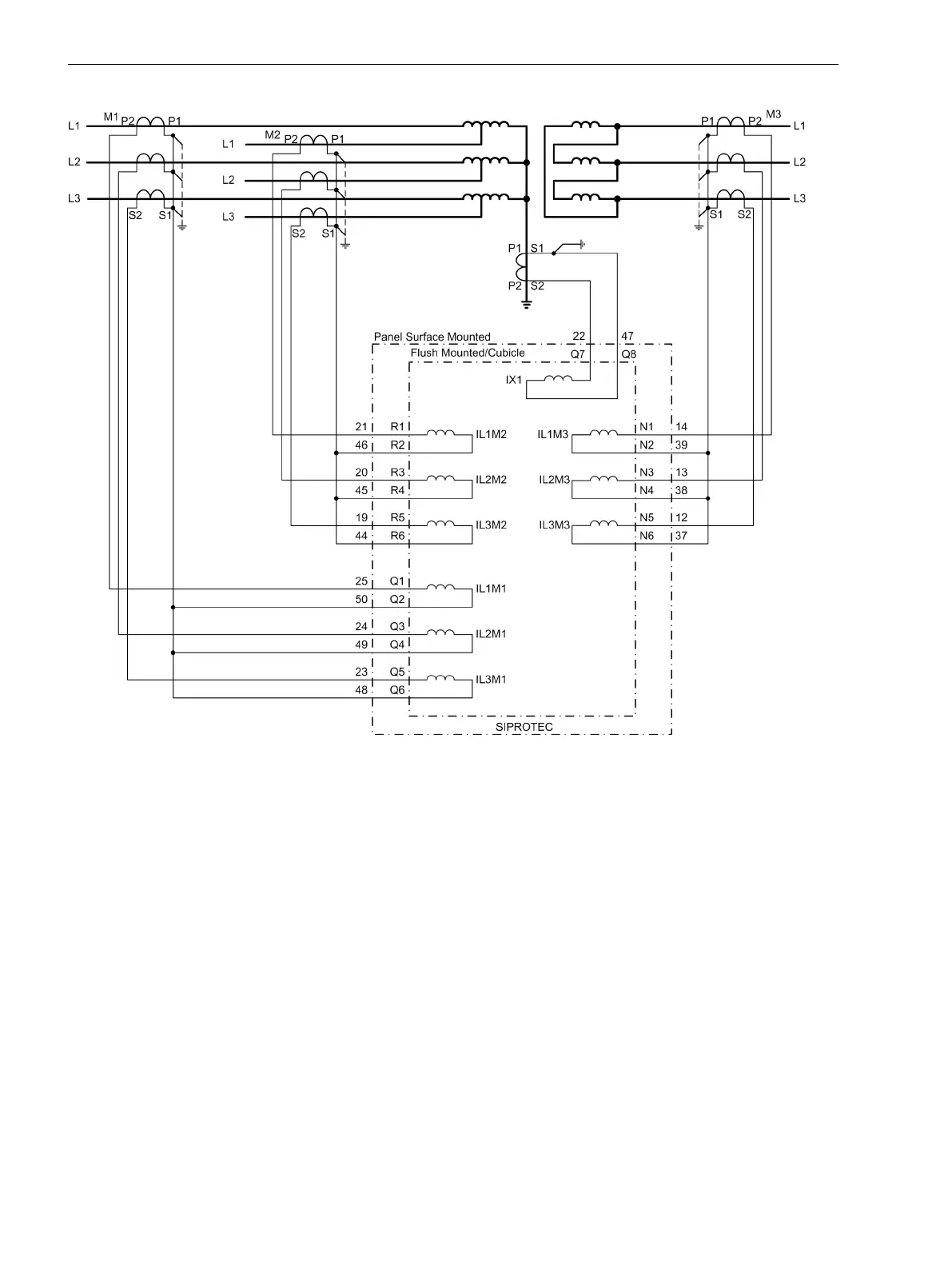

Figure C-6
Connection example 7UT613 for an earthed auto-transformer with brought-out delta winding
capable of carrying load (tertiary winding) and current transformer between starpoint and
earthing point
Connection Examples
C.1 Current Transformer Connection Examples
510 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
