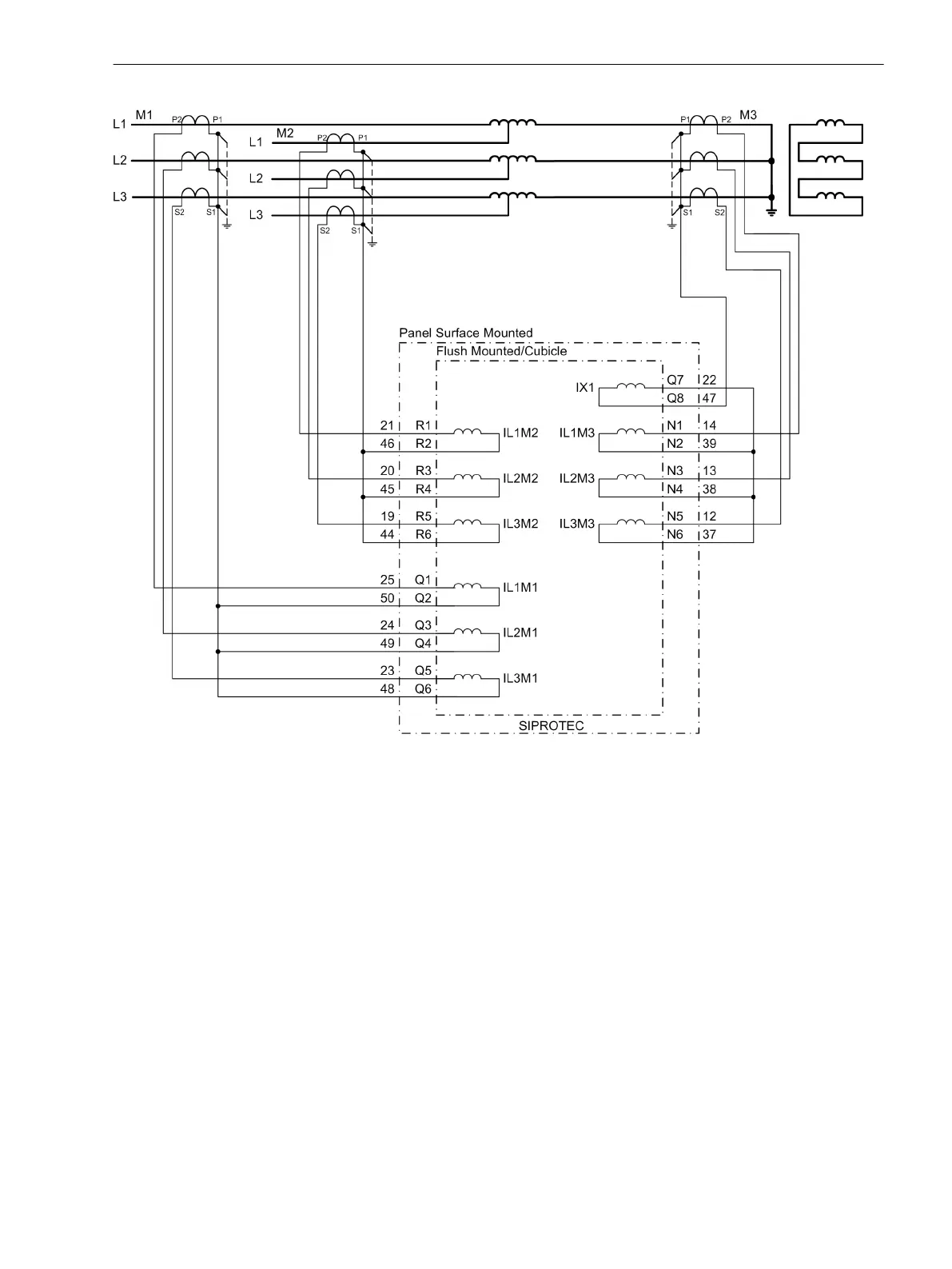

Figure C-7
Connection example 7UT613 for an auto-transformer bank with protected object auto-trans-
former branchpoints, with individually accessible earthing electrodes equipped with CTs (M3).
The CTs on the earthing side constitute a separate side for current comparison for each trans-
former of the bank. The starpoint of the CTs at M3 is routed via an auxiliary input (Ι
X1
1), which
allows realisation of restricted earth fault protection and/or earth overcurrent protection.
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 511
C53000-G1176-C230-5, Edition 09.2016
