Parameters 6x44 dα SYNC α2> α1 and 6x45 dα SYNC α2< α1 confine the operating range for synchro-
nous switching. These two parameters allow an asymmetrical switching range to be configured (see
Figure 2-132).
Moreover, the release time delay T SYNC-DELAY (address 6x46) can be set during which all synchronous
conditions must at least be fulfilled for the closing command to be generated after expiration of this time.
[zuschaltenbeisynchronennetzbedingungen-150502-kn, 1, en_US]

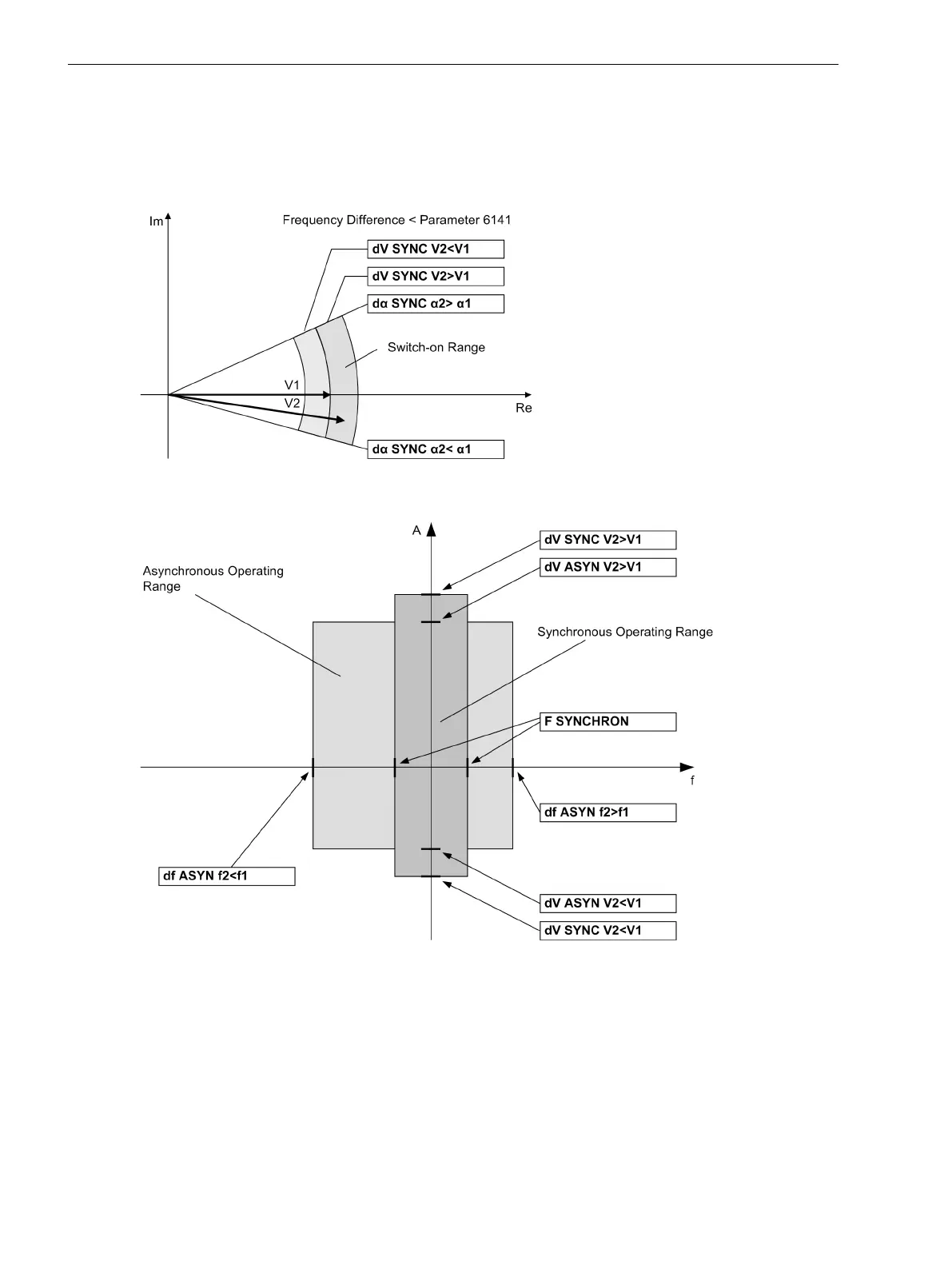

Figure 2-132 Switching under synchronous system conditions
[synchronisierfunktion-arbeitsbereichfuerspgund-freq-150502-kn, 1, en_US]
Figure 2-133
Operating range under synchronous and asynchronous conditions for voltage (V) and
frequency (f)
Synchrocheck
Address 6x50 dV SYNCHK V2>V1 and 6x50 dV SYNCHK V2>V1 can be used to configure the permitted
voltage difference also asymmetrically. The availability of two parameters enables an asymmetrical release
range to be set.
Parameters 6x52 df SYNCHK f2>f1 and 6x53 df SYNCHK f2<f1 determine the permissible frequency
differences. The availability of two parameters enables an asymmetrical release to be set.
Functions
2.21 Synchronization Function
302 SIPROTEC 4, 7SJ62/64, Manual
C53000-G1140-C207-8, Edition 08.2016
