Processor Board A–CPU for 7SJ62.../EE
[prozbgr-a-cpu-geraetebises-ee-160502-wlk, 1, en_US]

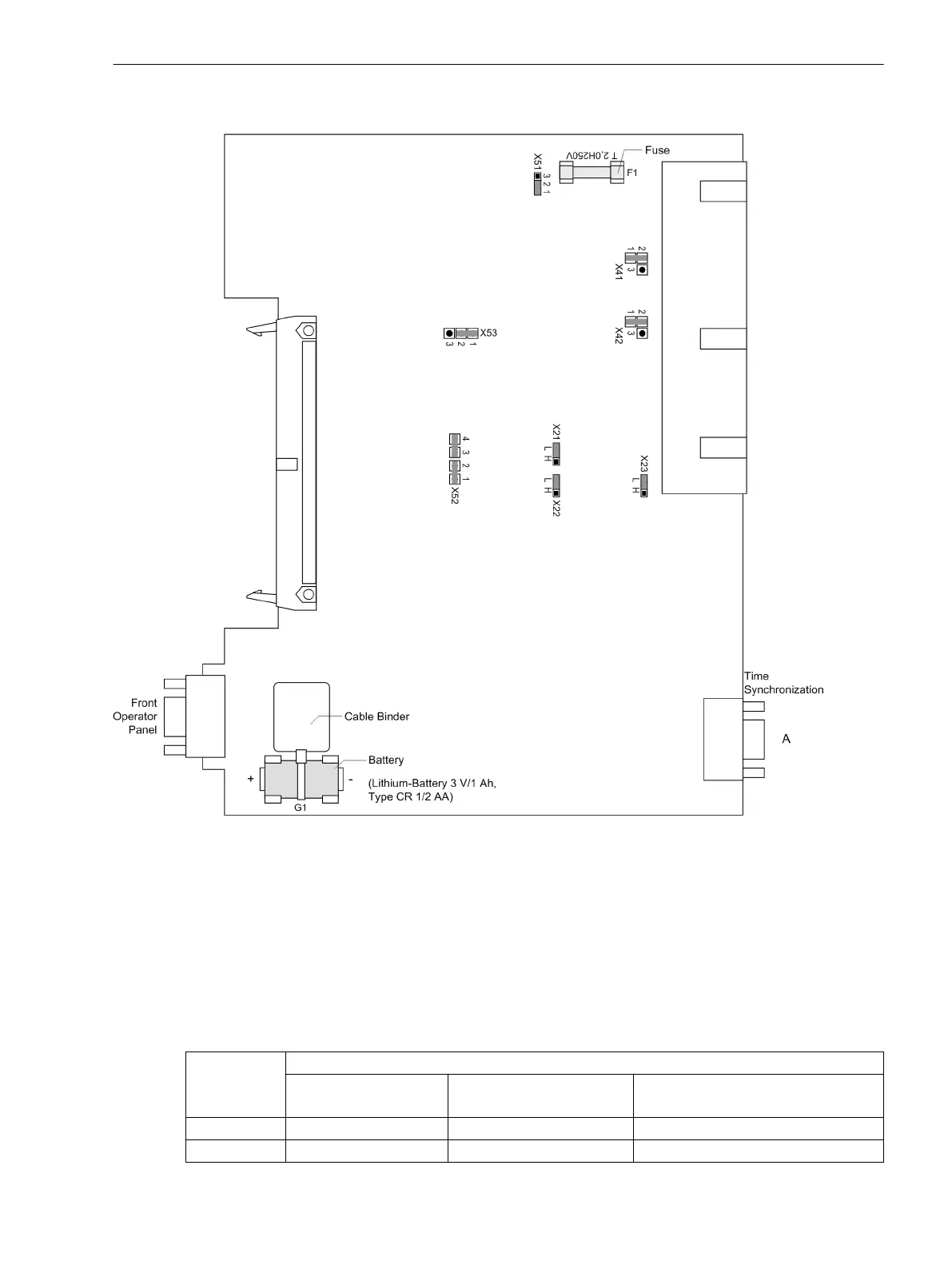

Figure 3-10
Processor printed circuit board A–CPU for devices releases ../EE and higher with jumpers
settings required for the module configuration (up to firmware V4.6)
The preset nominal voltage of the integrated power supply is checked according to Table 3-4, the pickup
voltages of the binary inputs BI1 to BI3 are checked according to Table 3-5, and the contact mode of the
binary outputs (BO1 and BO2) is checked according to Table 3-6.
Power Supply
Table 3-4
Jumper settings for the nominal voltage of the integrated power supply on the processor
board A–CPU to 7SJ62.../EE
Jumper Nominal Voltage
DC 24 V/ 48 V DC 60 V to 125 V DC 110 V to 250 V,
AC 115 V to 230 V
X51 Not used 1-2 2-3
X52 Not used 1-2 and 3-4 2-3
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 379
C53000-G1140-C207-8, Edition 08.2016
