Processor Board A–CPU for 7SJ62.../GG
[A_CPU2_HW_GG, 1, en_US]

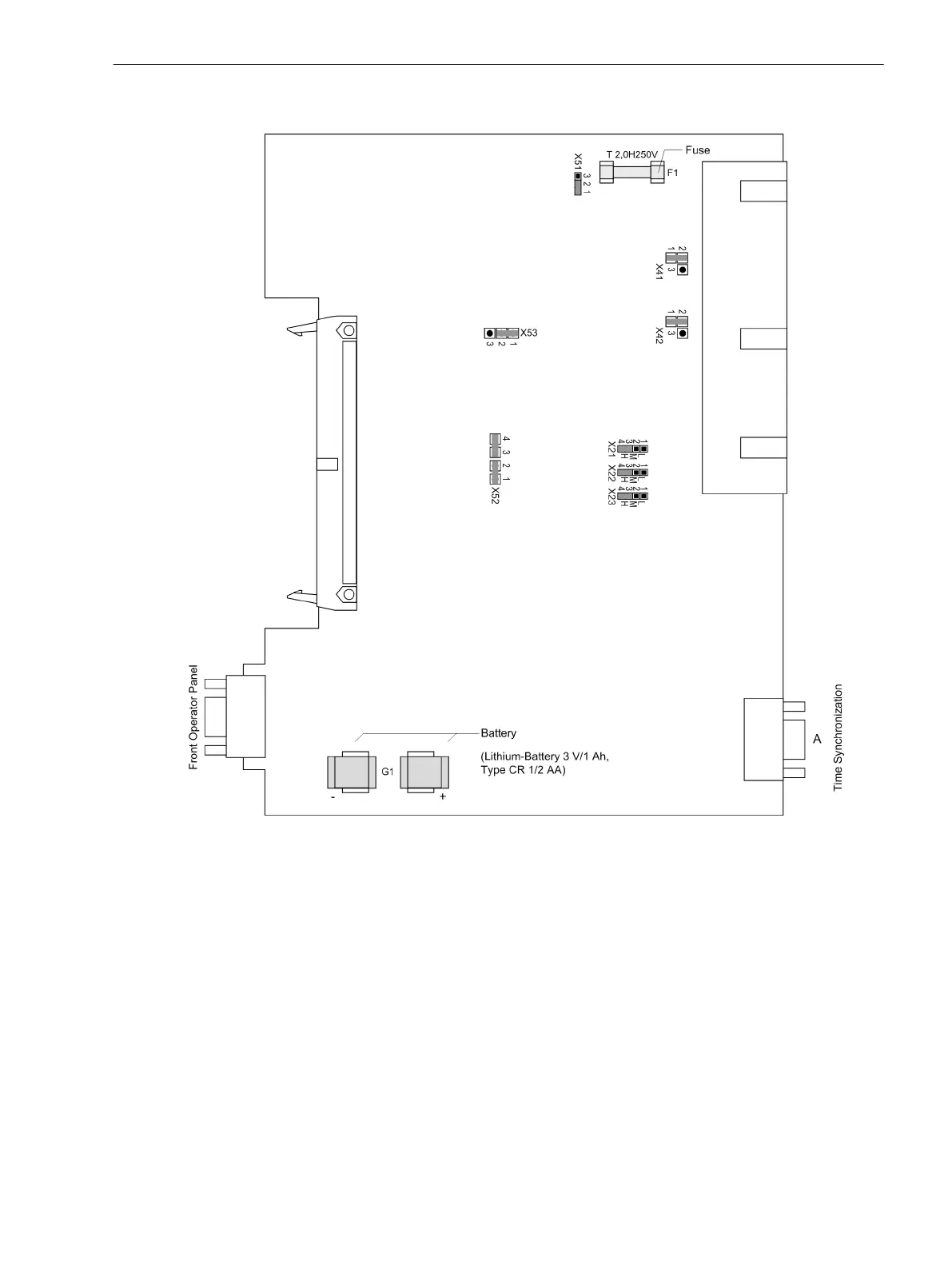

Figure 3-12
Processor printed circuit board A–CPU for devices releases .../GG and higher with jumpers
settings required for the module configuration (as from firmware V4.7)
The jumper settings for Power supply, Control voltage, and Contact type are identical to the settings for the
processor module A-CPU ..../FF (see Processor Board A–CPU for 7SJ62.../FF, Page 381).
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 383
C53000-G1140-C207-8, Edition 08.2016
