Configuration
5-497SA6 Manual
C53000-G1176-C133-1
• Check the finished default display. The grid may be hidden by clicking 9LHZ →
*ULG, equipment may be selected (brought to the front) by clicking 9LHZ → 0DNH
DFWLYH, and a view of the overall relay with default display may be selected by
clicking 9LHZ → 1RUPDOVL]H (see Figure 5-48).
• Save the default display, and end the Display Editor session by clicking 'LVSOD\
→ &ORVH. Answer the confirmation with <HV
.

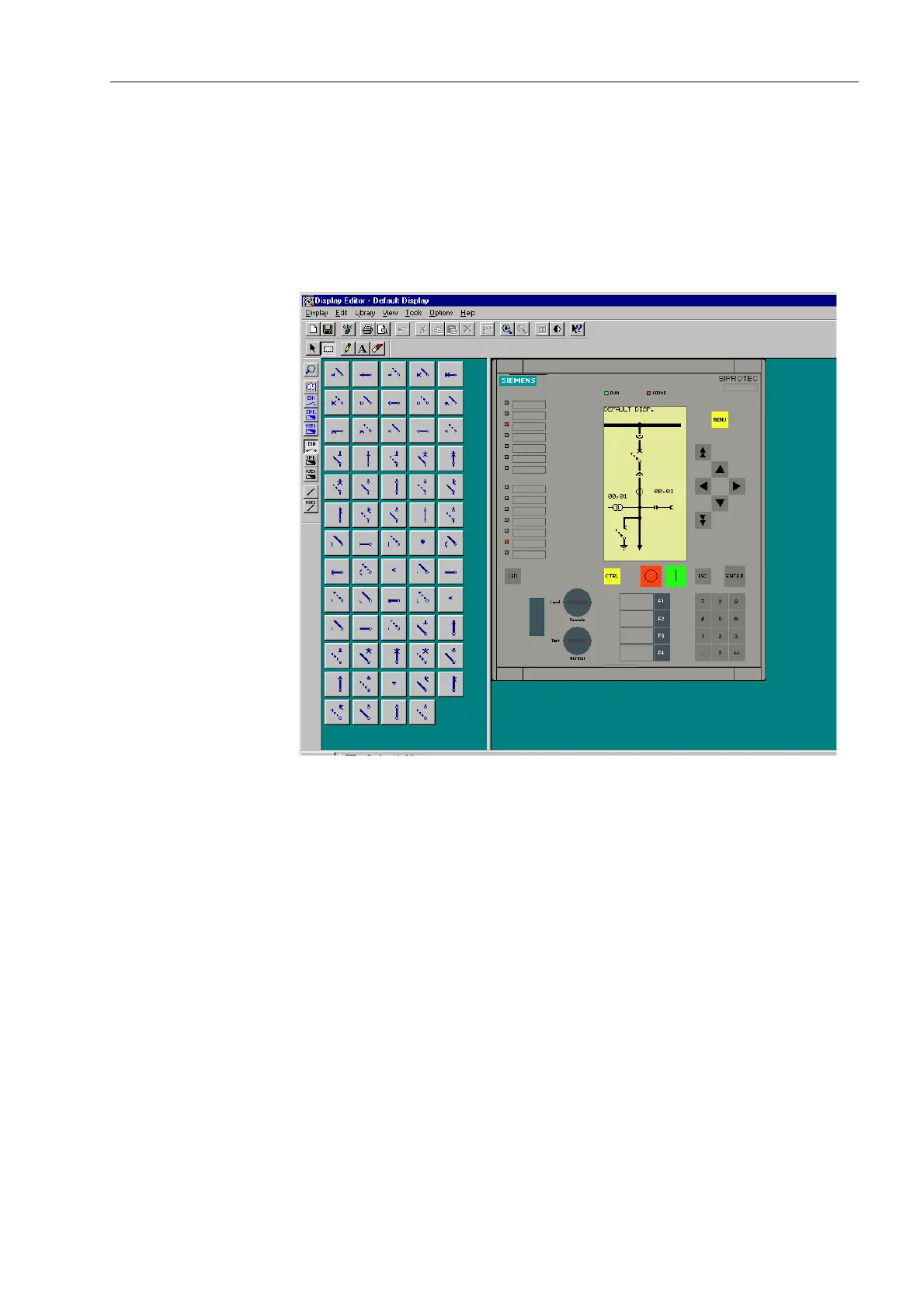

Figure 5-48 Default Display in Normal Size View
In order to use the default display for further applications (e.g. as a template in other
bays or for a control diagram), click on 'LVSOD\ → 7HPSODWH → 6DYHDV
Select the desired save path and enter the new filename. Click on 6DYH.
